Aluminium flat bar EN AW-6060 T64, 50×25 mm, length 2000 mm
0
Description

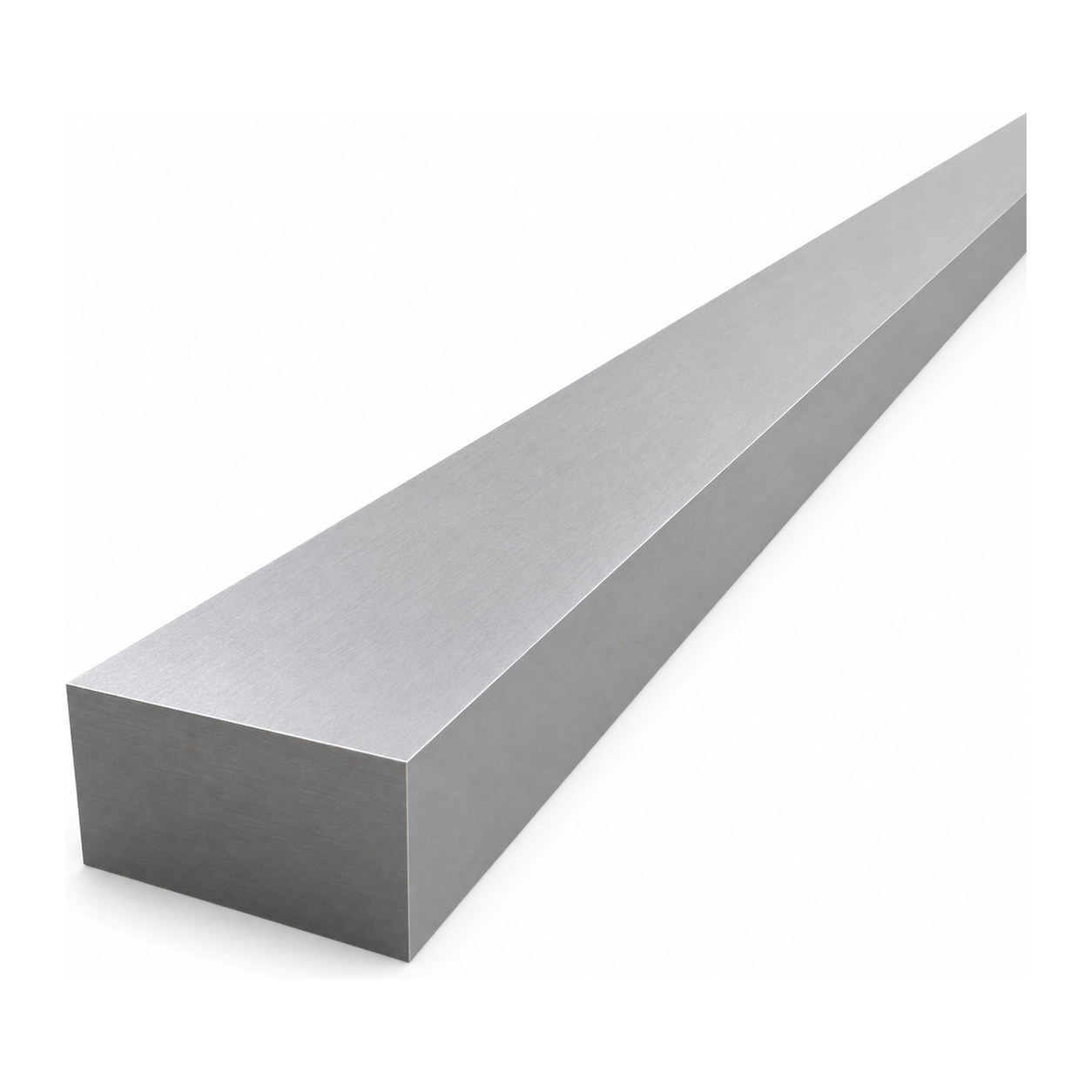

Aluminium flat bar EN AW-6060 T64, 50×25 mm, length 2000 mm
Aluminium flat bar 50×25 mm made from EN AW-6060 T64 alloy (AlMgSi0.5) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing and repair applications. Combining low weight with high rigidity and aluminium's natural corrosion resistance, this flat bar is ideally suited for building frames, brackets, structural reinforcements and finishing elements in professional installations.
The EN AW-6060 alloy in the T64 temper is characterised by good machinability and suitability for anodising, allowing further surface treatment when required. The raw (unanodised) surface provides complete freedom in choosing the final finish — from anodising and powder coating to leaving in its natural state.
Dimensions and technical parameters
- Cross-section: flat bar (flat profile)
- Width (A): 50 mm
- Thickness (T): 25 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (unanodised)
- Weight per piece (2 m): 6.88 kg
- Weight per linear metre: 3.44 kg/m
Applications
The 50×25 mm aluminium flat bar is widely used in installation and structural work. It is ideally suited for building frames and load-bearing structures, manufacturing brackets and reinforcements, creating finishing elements, and all types of repairs and modifications to existing aluminium structures. Thanks to its 50×25 mm dimensions, the profile provides a large bearing surface whilst maintaining a compact thickness, making bolted assembly and welding straightforward.
