Aluminium flat bar 80×5 mm EN AW-6060 T64, length 2000 mm
0
Description

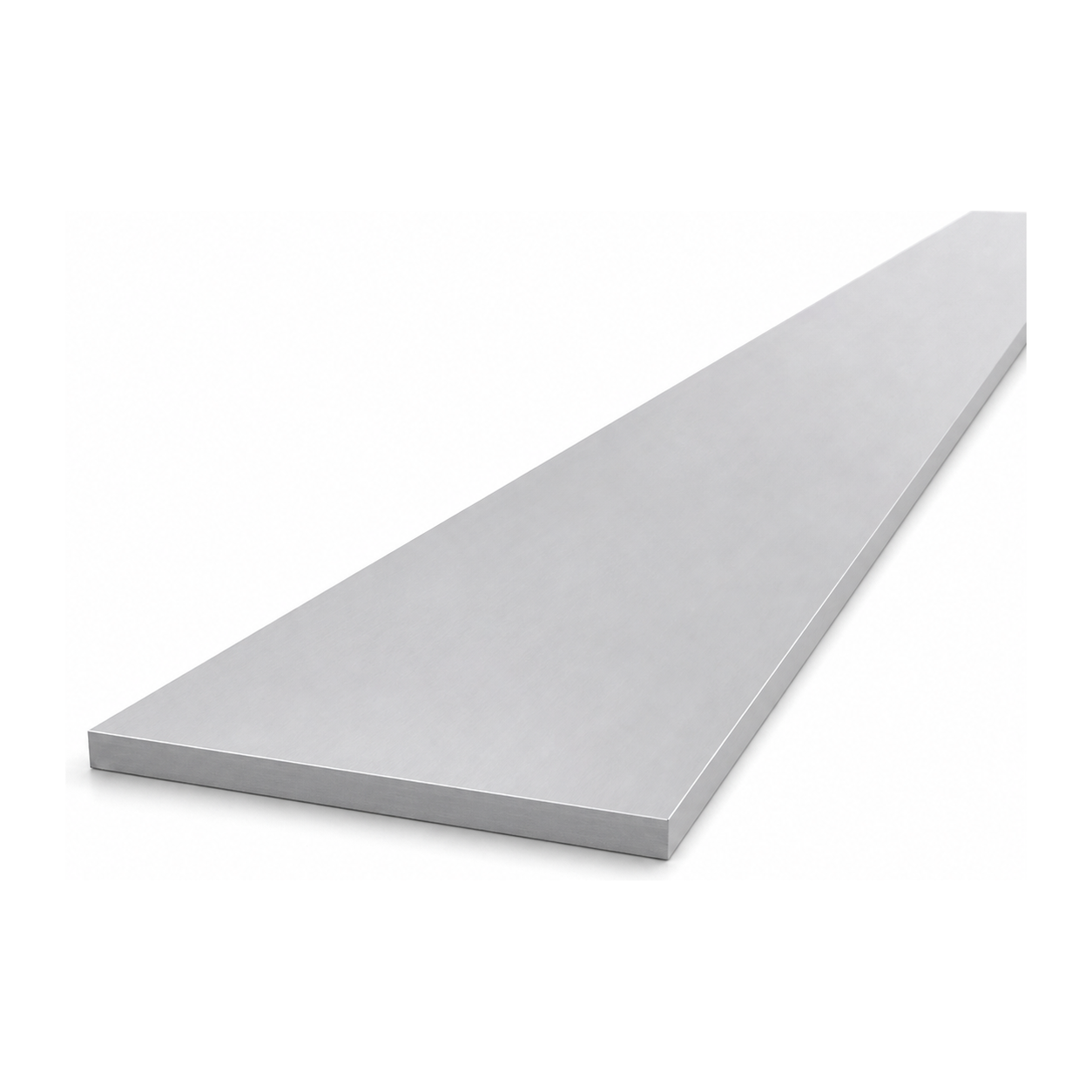

Aluminium flat bar 80×5 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 80×5 mm in alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for support structures, mounting frames, finishing and repairs. Its light weight of just 2.16 kg, combined with high rigidity and aluminium's natural corrosion resistance, makes it a popular choice among professional installation and construction teams.
The raw (unanodised) surface allows for further processing — anodising, powder coating or direct installation in locations where decorative finishing is not required. The T64 heat treatment condition provides an optimal balance between mechanical strength and formability, making on-site cutting and drilling straightforward.
Dimensions and technical specification
- Section: flat bar (flat profile)
- Width (A): 80 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (unanodised)
- Total weight: 2.16 kg (linear: 1.08 kg/m)
Applications
The 80×5 mm aluminium flat bar is suitable wherever low weight is required alongside adequate rigidity and durability. Typical applications include:
- Support structures and mounting frames (including substructures for PV installations)
- Reinforcements, stiffeners and connectors in aluminium systems
- Finishing elements — strips, covers, trims
- Repairs and modifications to existing steel and aluminium structures
- Prototyping and short-run production of flat components
The EN AW-6060 alloy is one of the most widely used aluminium alloys in construction and industry — it is characterised by excellent weldability, ease of machining and high resistance to atmospheric conditions without the need for additional corrosion protection.
Technical data
| Length [mm] | 2000 |
| Thickness [mm] | 5 |
| Material | Aluminium |
