Aluminium flat bar 70×15 mm EN AW-6060 T64, length 2000 mm
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
5.66 kg
Rating:
0
0
Vendor:
-
Product code:
001-786
Description

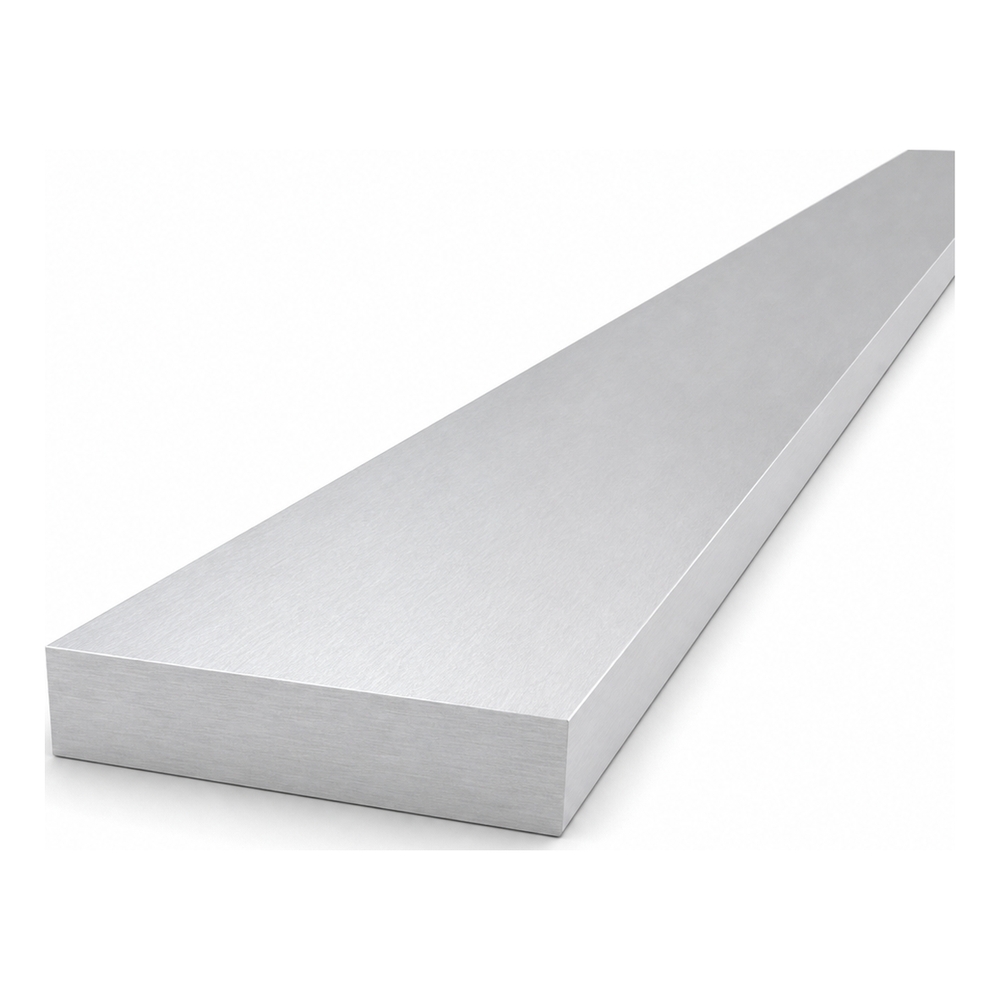

Aluminium flat bar 70×15 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 70×15 mm is a robust flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), designed for structural, finishing, and repair applications. Combining low self-weight with high rigidity, it performs excellently wherever dimensional precision and corrosion resistance matter — from mounting frames and structural reinforcements to finishing elements in photovoltaic and industrial installations.
The raw (non-anodised) surface allows complete freedom for further processing — anodising, powder coating, or direct installation in environments not exposed to aggressive chemicals. The profile is supplied in a 2000 mm length, ready to be cut and fitted on site.
Technical specification

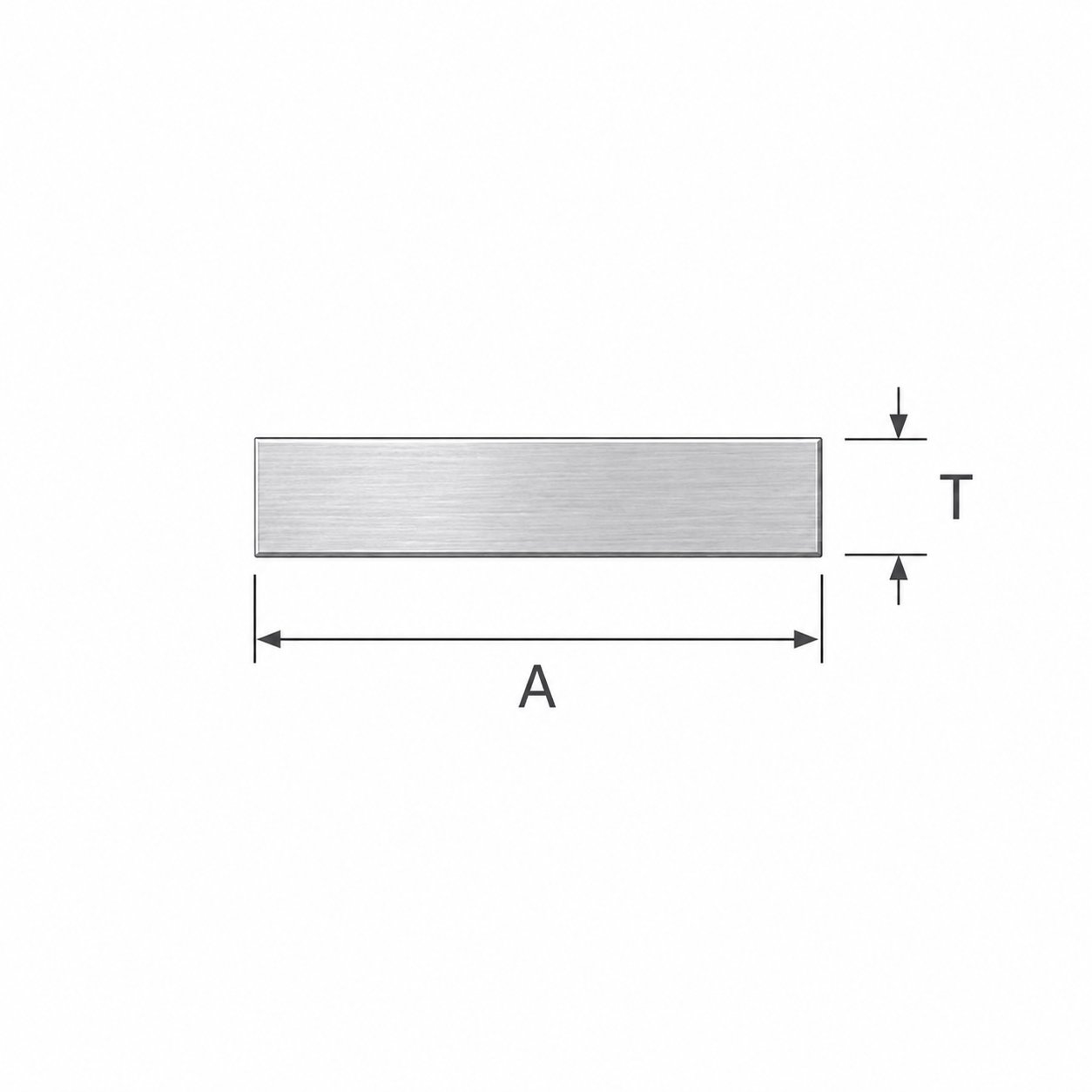

- Section type: flat bar (flat profile)
- Width (A): 70 mm
- Thickness (T): 15 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 5.66 kg (2.83 kg/m)
Benefits for the installer
- Low weight — easy transport and installation without heavy equipment
- High rigidity — the 70×15 mm profile provides stability in supporting structures and frames
- Corrosion resistance — 6060 aluminium alloy requires no additional protective coatings under standard conditions
- Ease of machining — cutting, drilling, milling, and welding without specialist tools
- Versatile application — supporting structures, frames, reinforcements, finishing, and repair elements
Loading...
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 15 |
