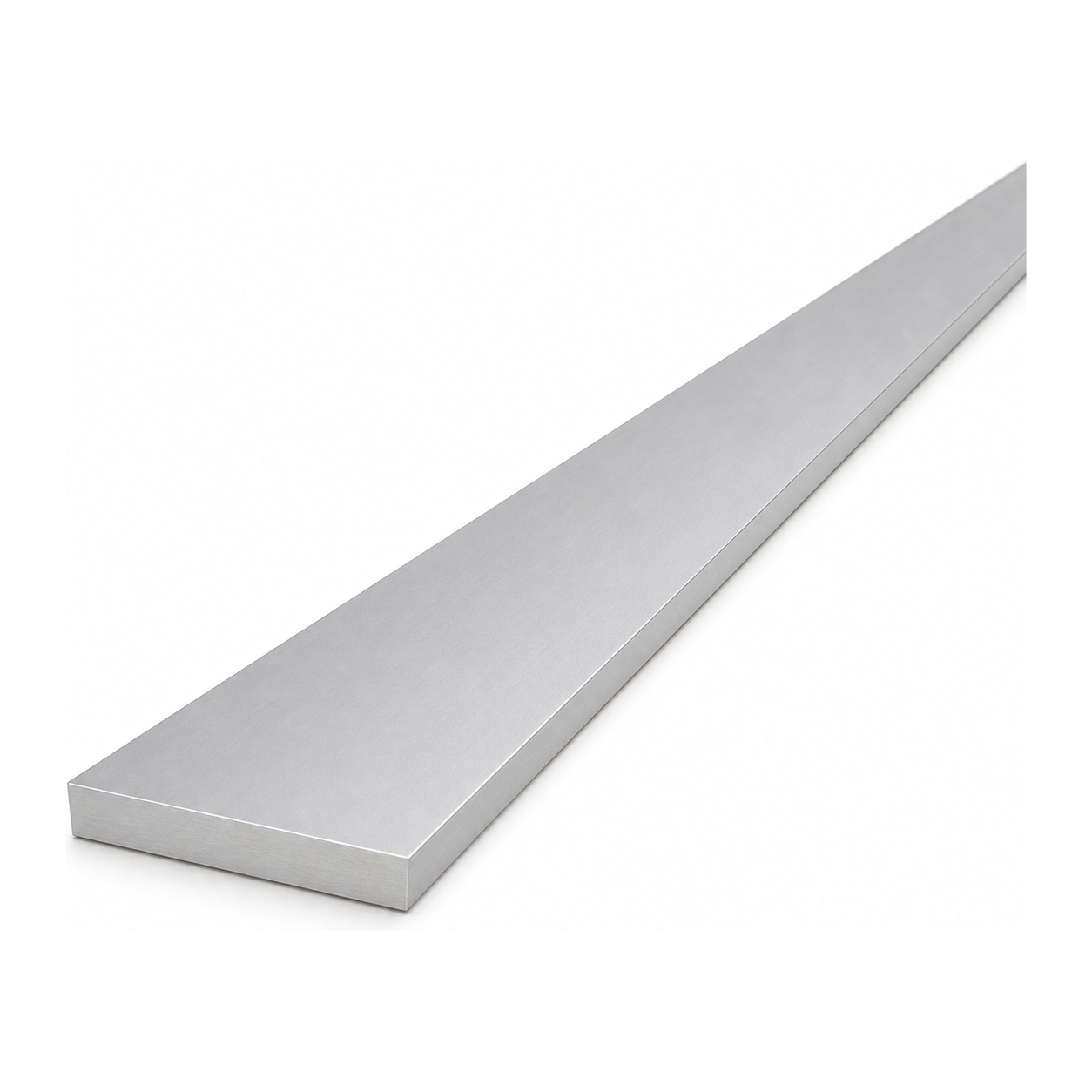

Aluminium flat bar 50×8 mm EN AW-6060 – flat profile L=2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 50×8 mm, L=2000 mm. Material: AlMgSi0.5 / PA38. Raw, non-anodised surface. Colour: silver. Section weight: 2.16 kg (1.08 kg/m).
Product code: 001-764
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 8
Description
Aluminium flat bar 50×8 mm EN AW-6060 – flat profile L=2000 mm
Aluminium flat bar 50×8 mm made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing and repair applications. Thanks to its low weight of just 2.16 kg per 2-metre section combined with high rigidity, the flat bar is an excellent choice for frames, reinforcements and substructures — including photovoltaic installations.
The EN AW-6060 alloy in the T6/T66 temper provides good mechanical strength while remaining easy to machine. Aluminium is naturally corrosion-resistant, eliminating the need for additional painting or galvanising in most outdoor applications. The raw (non-anodised) surface allows for further processing — anodising, powder coating or direct installation.
Technical specification
- Profile type: flat bar (flat profile)
- Width (A): 50 mm
- Thickness (T): 8 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 2.16 kg (1.08 kg/m)
- Colour: silver (natural aluminium)
Applications
- Structural and mounting substructure components
- Frame and rack reinforcements
- Architectural finishing and trim
- Connectors, shims and spacers in PV installations
- Repairs and prototyping of aluminium structures
