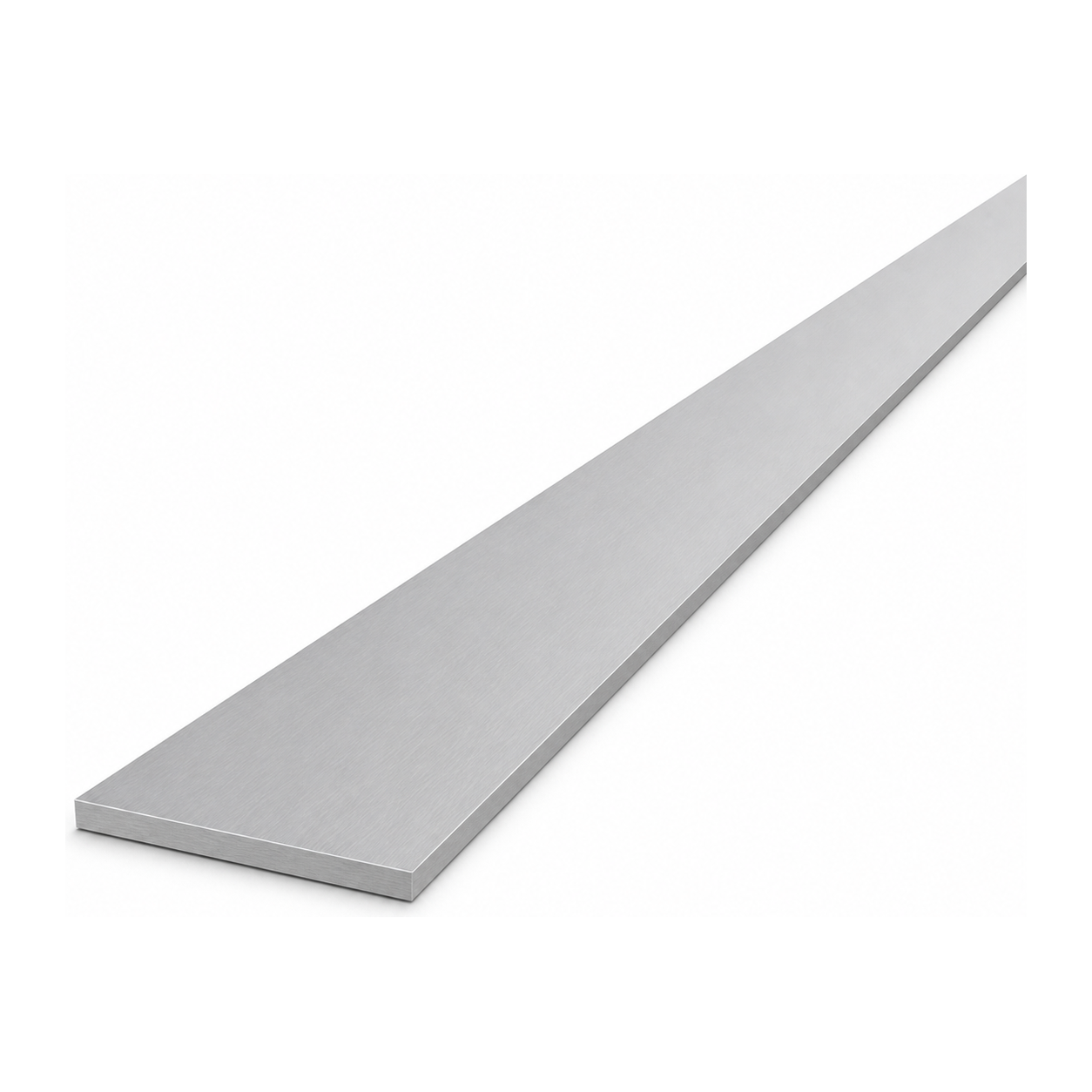

Aluminium flat bar 50×4 mm EN AW-6060 T64, length 2000 mm
0
Description
Aluminium flat bar 50×4 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 50×4 mm made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing and mounting applications. Thanks to its low weight of just 1.10 kg per 2-metre section and high corrosion resistance, the flat bar is ideal for photovoltaic structures, mounting frames, finishing elements and repairs — wherever lightness, rigidity and material durability are important.
The raw (non-anodised) surface allows for any finishing treatment — anodising, powder coating or painting — depending on project requirements. The EN AW-6060 alloy in T64 temper offers good machinability and weldability, making it easy to cut, drill and join on site.
Dimensions and technical specifications
- Cross-section: flat bar (flat profile)
- Width (A): 50 mm
- Thickness (T): 4 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 1.10 kg (0.55 kg/m)
Applications
The 50×4 mm aluminium flat bar is widely used in installation and construction work. It is used as a reinforcing element in PV mounting structures, as a finishing strip, spacer, frame and rack component, and as a material for repairs and modifications to existing aluminium structures. It serves as a convenient semi-finished product for further processing — it can easily be cut to length, drilled for mounting holes or welded to other profiles.
