Aluminium flat bar 50×10 mm EN AW-6060, length 2000 mm

Go to Product feedback

Aluminium flat bar EN AW-6060 T6/T66, 50×10 mm, length 2000 mm. Material: AlMgSi0.5 / PA38. Raw surface (non-anodised). Weight 2.70 kg (1.35 kg/m). Colour: natural silver.

Go to full description
with VAT without VAT
Price €30.15
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] Cat 150 #150

  • Material Aluminium
  • Length [mm] 2000
  • Thickness [mm] 10

Description

Aluminium flat bar 50×10 mm EN AW-6060, length 2000 mm

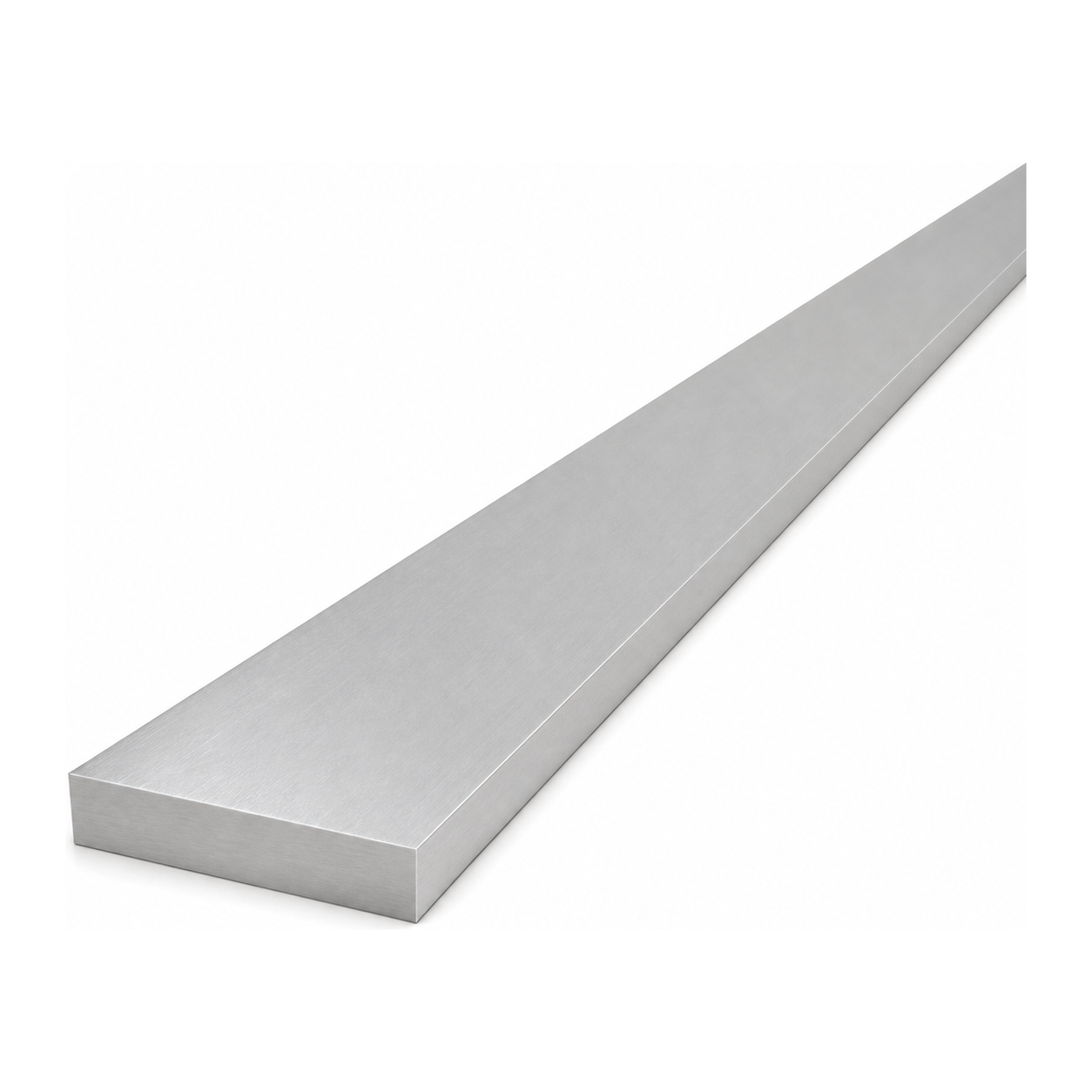

Aluminium flat bar 50×10 mm – perspective view of the flat profile
Aluminium flat bar 50×10 mm – perspective view of the flat profile

Aluminium flat bar 50×10 mm made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for supporting structures, mounting frames, finishing elements, and repairs. By using the 6060 alloy in the T6/T66 temper, the profile combines high rigidity with low self-weight and aluminium's natural corrosion resistance — no additional corrosion protection is required under standard conditions.

The raw (non-anodised) surface allows for further processing: anodising, powder coating, or direct installation in unexposed locations. The flat bar is ideal as a reinforcing element, structural connector, base for mounting rails, or spacer in photovoltaic and industrial installations.

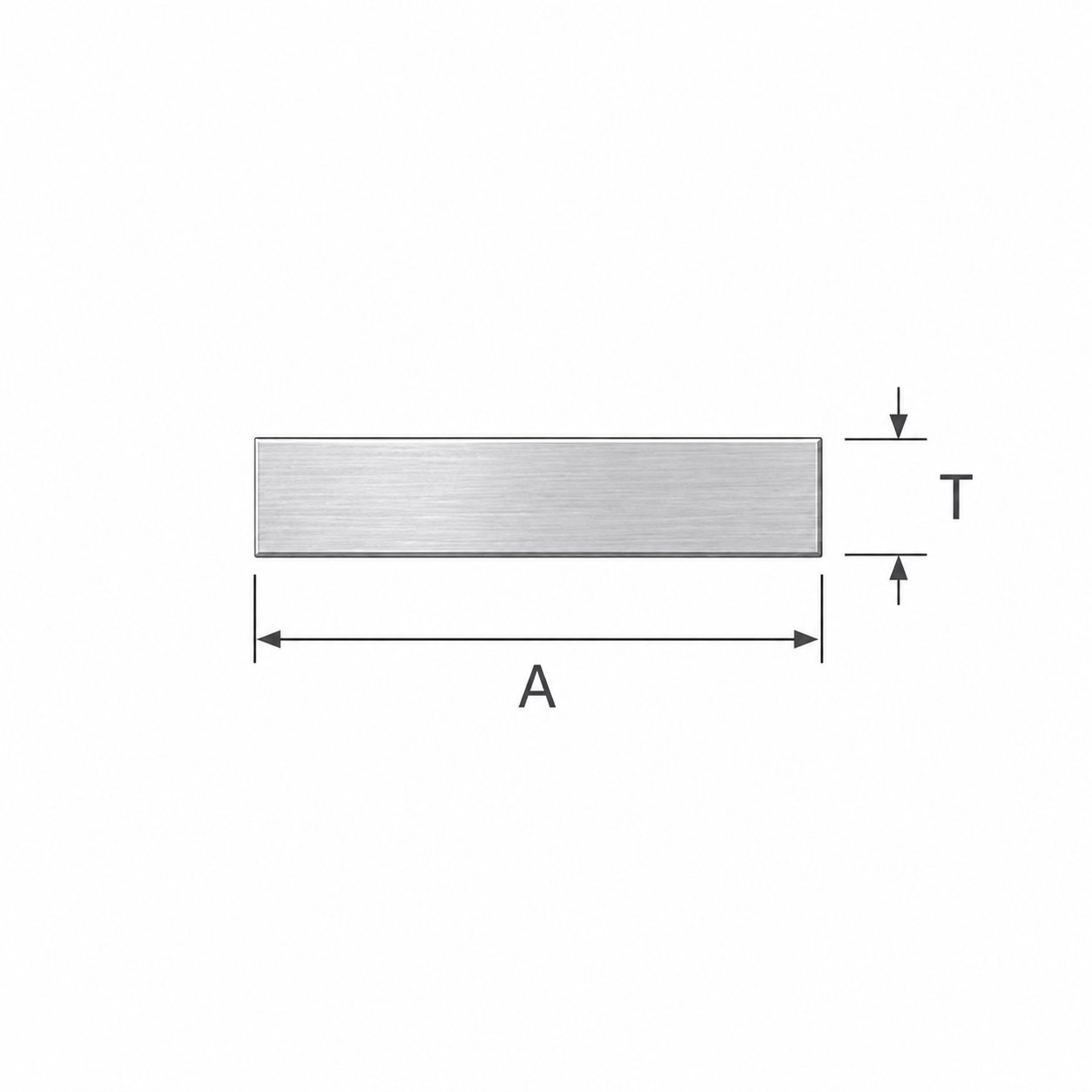

Dimensional drawing of aluminium flat bar cross-section – width A and thickness T
Dimensional drawing of aluminium flat bar cross-section – width A and thickness T

Technical Specification

  • Profile type: flat bar (flat profile)
  • Width (A): 50 mm
  • Thickness (T): 10 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: raw (non-anodised)
  • Weight: 2.70 kg (1.35 kg/m)
  • Colour: natural silver (aluminium)

Applications

  • Supporting structures and mounting frames in PV installations
  • Finishing and protective elements
  • Connectors, reinforcements, and spacers in aluminium structures
  • Repairs and custom-made components
  • Bases for mounting rails and load-bearing profiles

The EN AW-6060 alloy in the T6/T66 temper is characterised by good mechanical strength, ease of machining, and weldability in a shielding gas atmosphere. The low self-weight (1.35 kg/m) facilitates transport and handling on site, which is particularly important when working on rooftops and supporting structures.
