Aluminium flat bar 45×2 mm EN AW-6060 T64 – length 2000 mm
0
Description

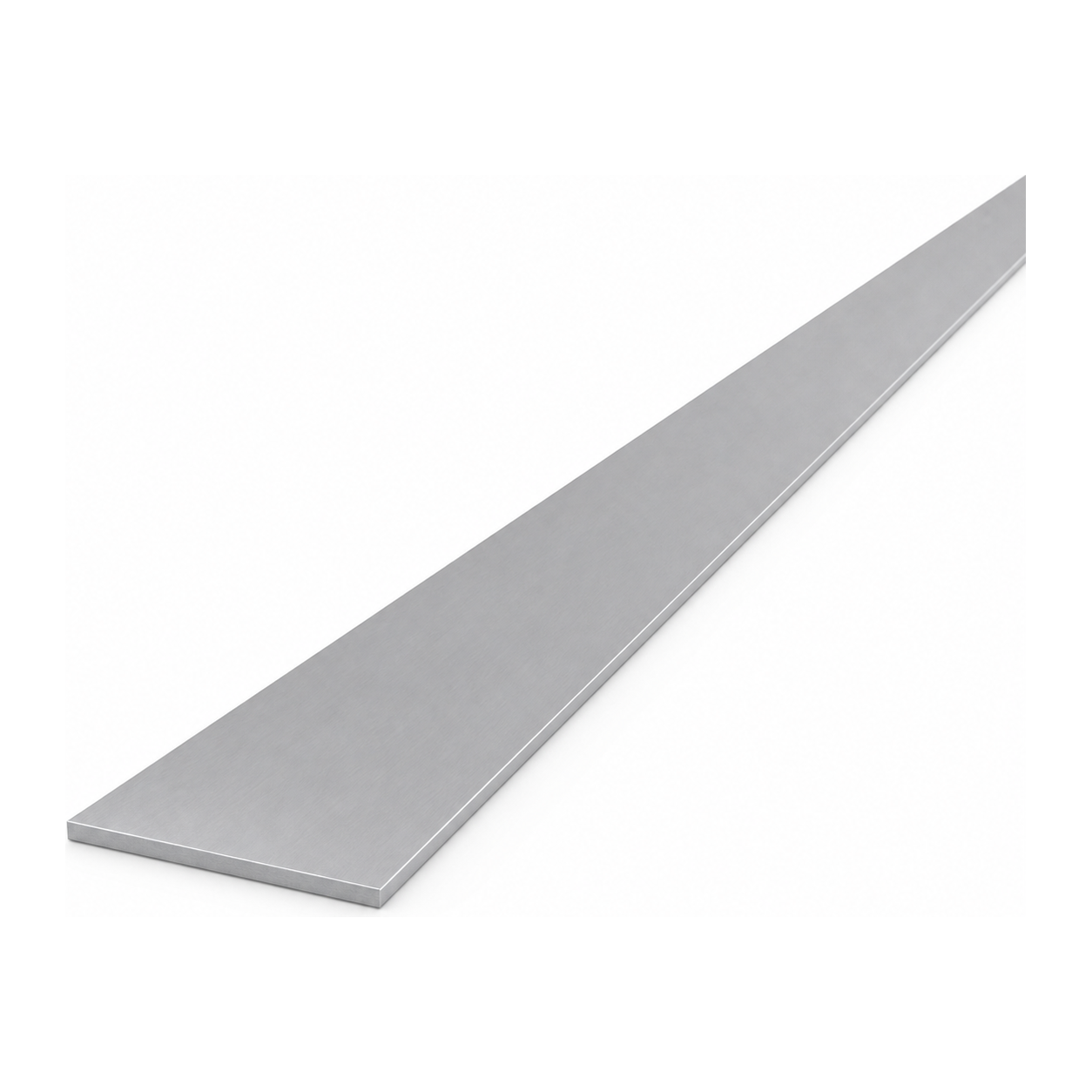

Aluminium flat bar 45×2 mm EN AW-6060 T64 – length 2000 mm
Aluminium flat bar 45×2 mm made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing, and repair applications. With a low weight of just 0.48 kg for the entire 2-metre section and high corrosion resistance, this flat bar is ideal wherever lightness, rigidity, and durability are required — including support structures for photovoltaic installations, mounting frames, and finishing elements.
The profile surface is raw (non-anodised), allowing further processing — anodising, painting, or installation in the as-supplied condition. The EN AW-6060 aluminium alloy in the T64 heat treatment temper provides good mechanical strength whilst remaining easy to cut and shape on site.
Technical Specification
- Section type: flat bar (flat profile)
- Width (A): 45 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 0.48 kg (0.24 kg/m)
Applications
- Components for support structures and mounting frames
- Reinforcements and connectors in photovoltaic installations
- Finishing and cover profiles
- Repairs and modifications to existing aluminium structures
- Elements of lightweight building and furniture structures
