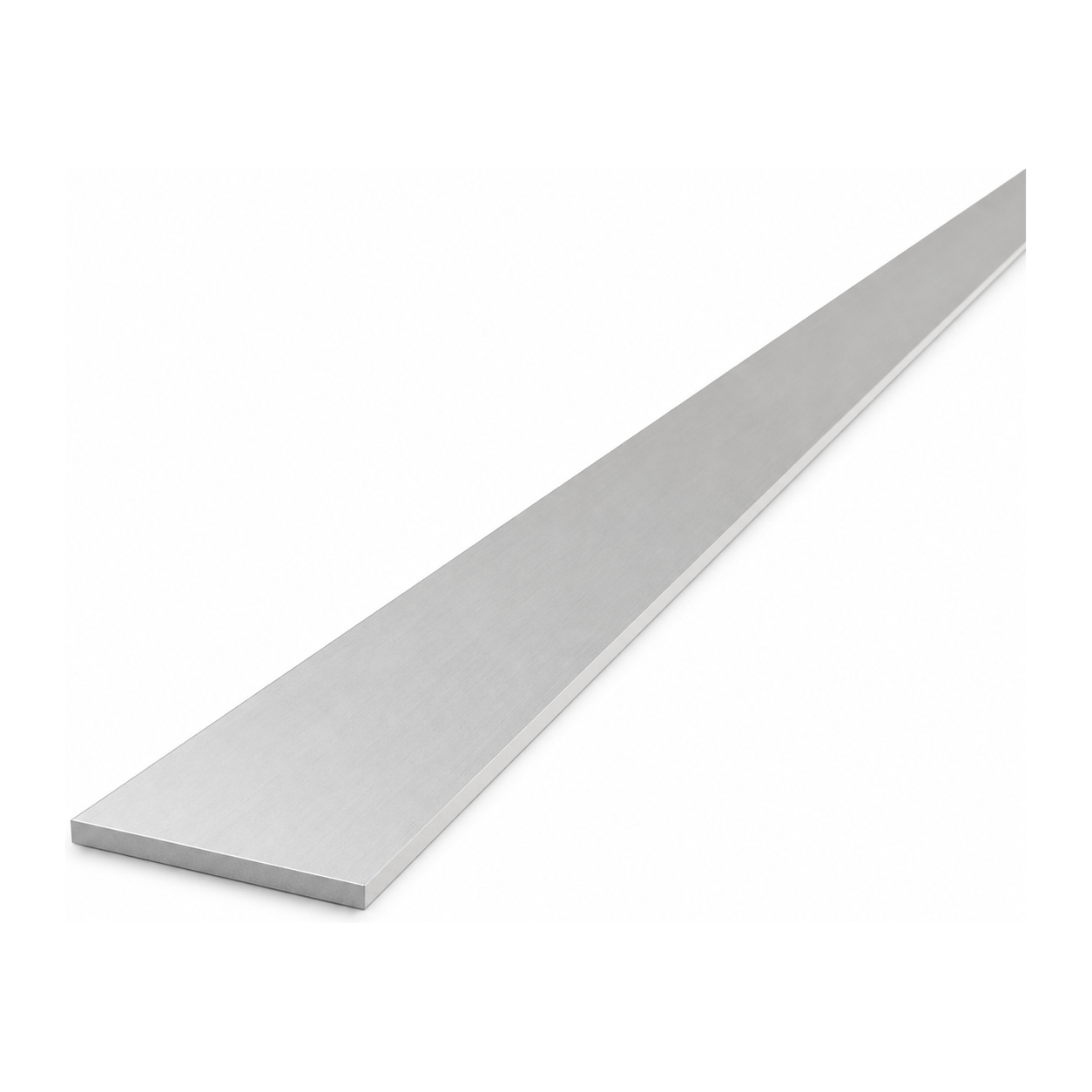

Aluminium flat bar 40×3 mm EN AW-6060 – flat profile L=2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 40×3 mm, length 2000 mm. Weight 0.70 kg/2 m (0.35 kg/m). Alloy AlMgSi0.5 (PA38). Raw, non-anodised surface. Suitable for cutting, drilling, anodising and powder coating.
Product code: 001-752
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 3
Description
Aluminium flat bar 40×3 mm EN AW-6060 – flat profile L=2000 mm
Aluminium flat bar 40×3 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), with a length of 2000 mm. Thanks to its low weight of just 0.70 kg per 2-metre length and high corrosion resistance, it is ideal for load-bearing structures, mounting frames, finishing elements and repairs — wherever a lightweight, rigid and durable aluminium profile is required.
The raw (non-anodised) surface allows for further processing — anodising, powder coating or painting — depending on the requirements of the specific project. The EN AW-6060 alloy in T6/T66 temper combines good mechanical strength with ease of cutting and drilling, enabling fast on-site assembly without the need for specialist tools.
Technical specification
- Profile type: flat bar (flat profile)
- Width (A): 40 mm
- Thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 0.70 kg
- Linear weight: 0.35 kg/m
Applications
- Support structures and mounting frames
- Finishing elements and cover strips
- Reinforcements and stiffeners in photovoltaic installations
- Repairs and adaptations of profiles in existing structures
- Manufacture of brackets, connectors and custom components
