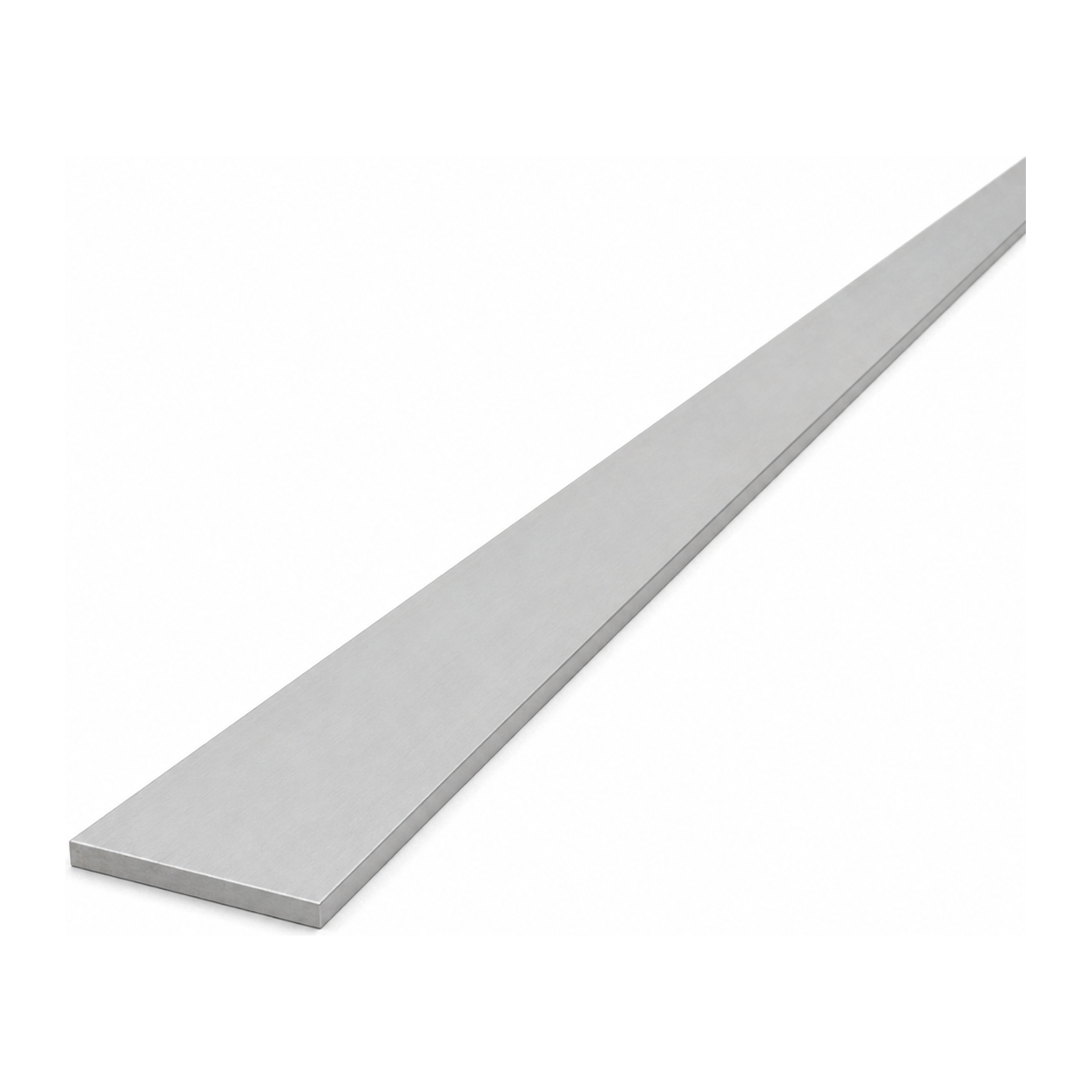

Aluminium flat bar 30×3 mm EN AW-6060 T64, length 2000 mm
0
Description
Aluminium flat bar 30×3 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 30×3 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its lightweight construction and high corrosion resistance, it is suitable wherever a rigid yet easy-to-machine mounting element is required — from support structures and frames, through façade finishes, to repairs and modifications of existing installations.
The profile, with a length of 2000 mm and a weight of just 0.48 kg, is convenient to transport and store. The raw (non-anodised) aluminium surface allows for further processing — powder coating, anodising, or leaving in its natural state for unexposed applications.
Technical specification
- Cross-section: flat bar (flat profile)
- Width (A): 30 mm
- Thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight (2 m): 0.48 kg (0.24 kg/m)
Applications
The aluminium flat bar 30×3 mm is widely used in installation and construction work. It can be used as a reinforcing element for support structures, a mounting spacer, a profile connector, a finishing strip, or as a material for building lightweight frames and sub-frames. The EN AW-6060 alloy in the T64 temper provides good rigidity whilst remaining easy to cut and drill with standard workshop tools.
Technical data
| Thickness [mm] | 3 |
| Material | Aluminium |
| Length [mm] | 2000 |
