Aluminium flat bar 25×5 mm EN AW-6060 T64, length 2000 mm
0
Description

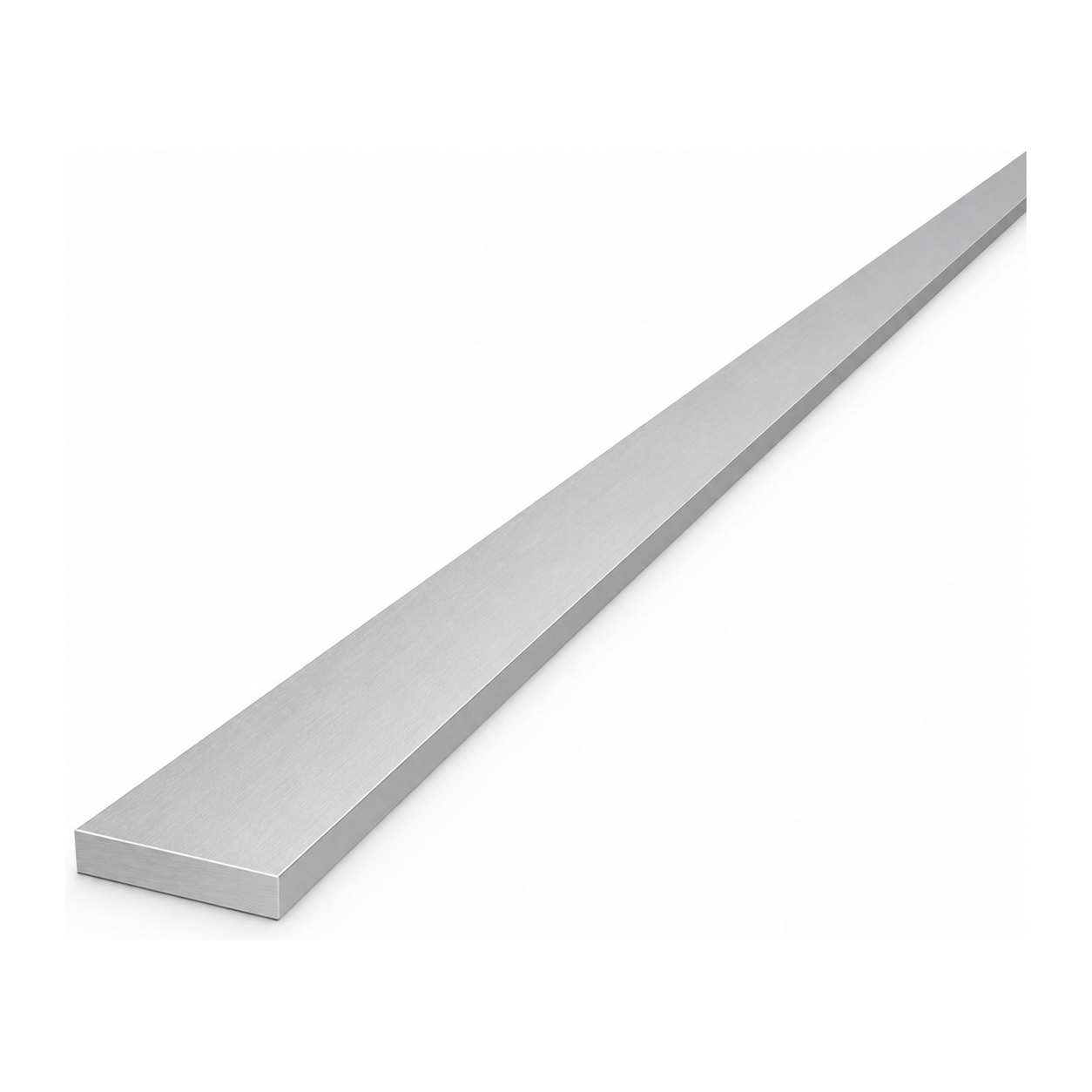

Aluminium flat bar 25×5 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 25×5 mm made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38) is a versatile flat profile designed for support structures, mounting frames, finishing and repairs. Thanks to its low weight of just 0.68 kg per 2-metre length and high corrosion resistance, it is ideal for installation applications — both indoors and outdoors.
The raw (non-anodised) surface allows for further processing — anodising, powder coating or leaving in the as-manufactured state. The T64 heat treatment condition ensures an optimal balance between rigidity and ease of cutting and bending on site.
Technical specification
- Profile type: flat bar (flat profile)
- Width (A): 25 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.68 kg (0.34 kg/m)
Applications
The 25×5 mm aluminium flat bar is ideally suited for constructing lightweight support structures, frame elements, stiffeners and connectors. Professional installation teams use it, among other things, as a spacer element in mounting systems, a levelling shim beneath load-bearing profiles, and as a material for fabricating custom brackets and clamps on site. The light weight of aluminium translates into ease of transport and faster installation — particularly when working at height.
Technical data
| Length [mm] | 2000 |
| Thickness [mm] | 5 |
| Material | Aluminium |
