Aluminium flat bar 25×3 mm EN AW-6060 T64 – length 2000 mm
0
Description

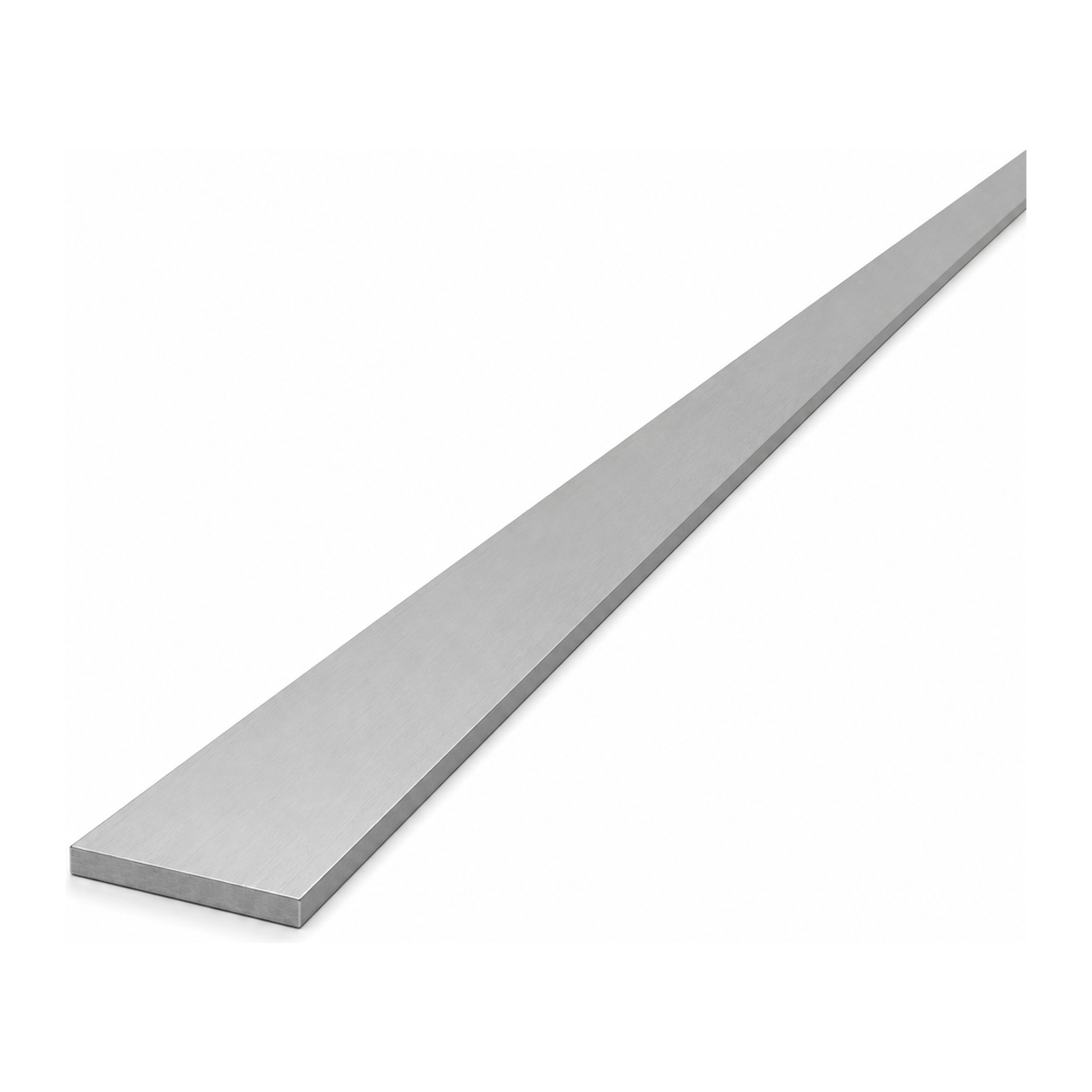

Aluminium flat bar 25×3 mm EN AW-6060 T64 – length 2000 mm
Aluminium flat bar 25×3 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), designed for structural, finishing, and repair applications. With a lightweight of just 0.40 kg per 2-metre length, the profile is easy to transport and install, whilst providing adequate rigidity and excellent corrosion resistance — without the need for additional surface treatment.
The EN AW-6060 alloy in the T64 temper condition is characterised by good mechanical strength, excellent machinability, weldability, and anodising capability. It is a proven material used in photovoltaic installations, structural frames, façade finishing elements, and all manner of stiffeners and connectors.
Applications
- Structural support and frame elements
- Finishing trims and cover strips
- Profile stiffeners and reinforcements
- Repairs and modifications to aluminium structures
- Connectors and spacer washers in PV installations
Technical specification
- Section: flat bar (flat profile)
- Width (A): 25 mm
- Thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.40 kg (0.20 kg/m)
- Colour: silver (natural aluminium)
The raw surface allows for further processing — anodising, powder coating, or polishing — depending on project requirements. The profile is ready to be cut to size and installed directly.
