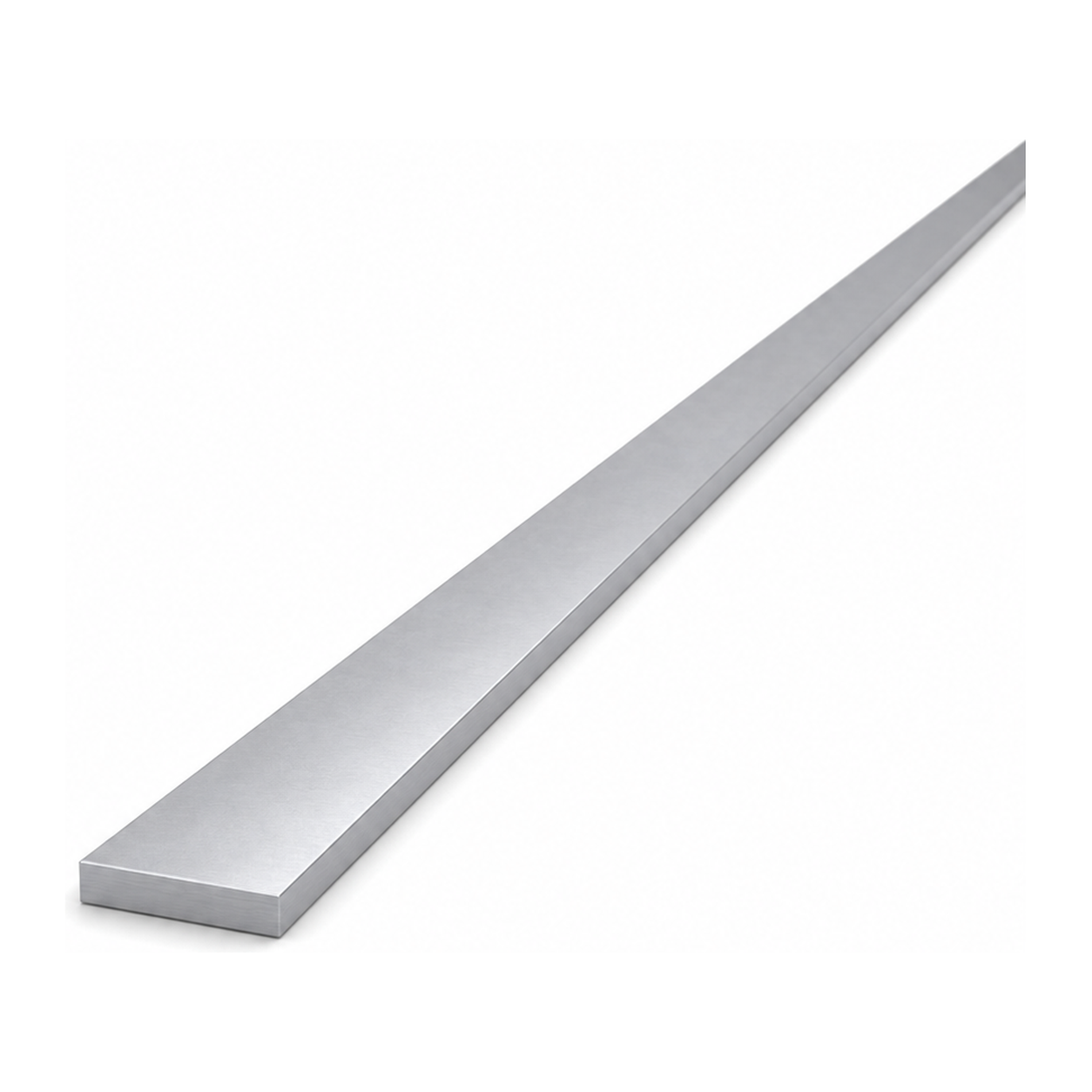

Aluminium flat bar 20×4 mm EN AW-6060 T64, length 2000 mm
0
Description
Aluminium flat bar 20×4 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 20×4 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). The two-metre length weighing just 0.44 kg combines low weight with good rigidity and aluminium's natural corrosion resistance — making it suitable for support structures in photovoltaic installations as well as finishing work, frame construction, guards and on-site repairs.
The raw (non-anodised) surface allows for further processing — anodising, powder coating, or leaving in its as-manufactured state for unexposed applications. The T64 heat treatment condition ensures enhanced mechanical properties compared to the soft condition, resulting in better load-bearing capacity and resistance to deformation.
Dimensions and technical specification
- Cross-section: flat bar (flat profile)
- Width (A): 20 mm
- Thickness (T): 4 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.44 kg (0.22 kg/m)
Applications
- Components for support structures and mounting frames
- Reinforcements, connectors and spacers in photovoltaic installations
- Finishing trims, strips and guards in construction
- Repairs and ad hoc workshop tasks on site
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 4 |
