Aluminium flat bar 20×10 mm – flat profile EN AW-6060 T64, L=2000 mm
0
Description

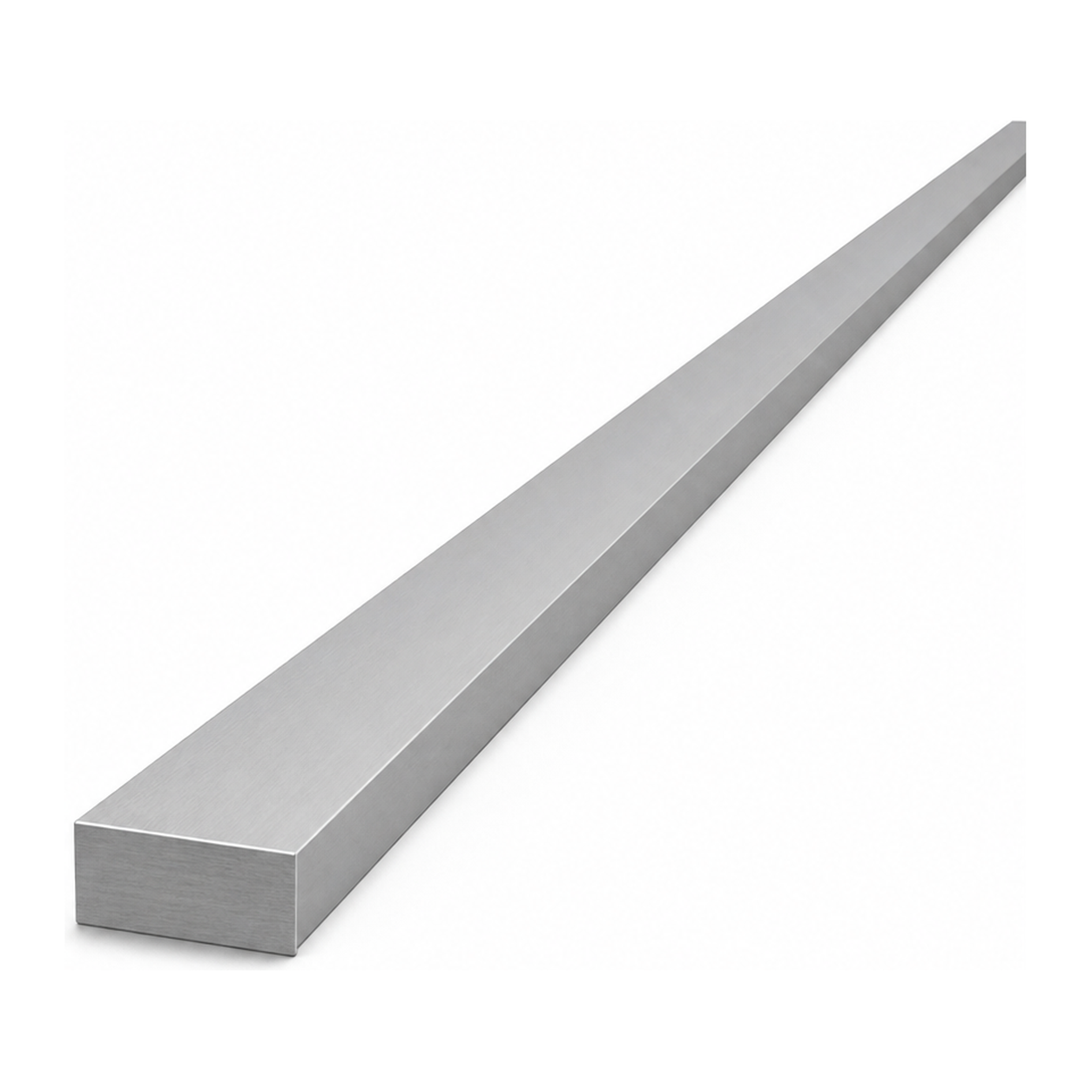

Aluminium flat bar 20×10 mm – flat profile EN AW-6060 T64, L=2000 mm
Aluminium flat bar 20×10 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), intended for structural, finishing, and repair work. Thanks to its low self-weight of just 1.08 kg per 2-metre length, the profile is easy to transport and process, whilst providing good mechanical rigidity. The raw, non-anodised aluminium surface is ready for further treatment — anodising, painting, or direct installation in locations where decorative finishing is not required.
The EN AW-6060 alloy in the T64 temper offers good resistance to atmospheric corrosion and is easy to cut, drill, and bend — enabling faster completion of on-site tasks without the need for specialist tools. The flat bar is ideally suited as a reinforcing element in aluminium structures, a profile connector, a spacer shim, and as a material for building frames, bases, and mounting brackets.
Applications
- Reinforcements and connectors in aluminium and steel structures
- Frame, base, and mounting bracket components
- Finishing and trim in photovoltaic and building installations
- Spacers and shims in fastening systems
- Repairs and ad-hoc workshop tasks

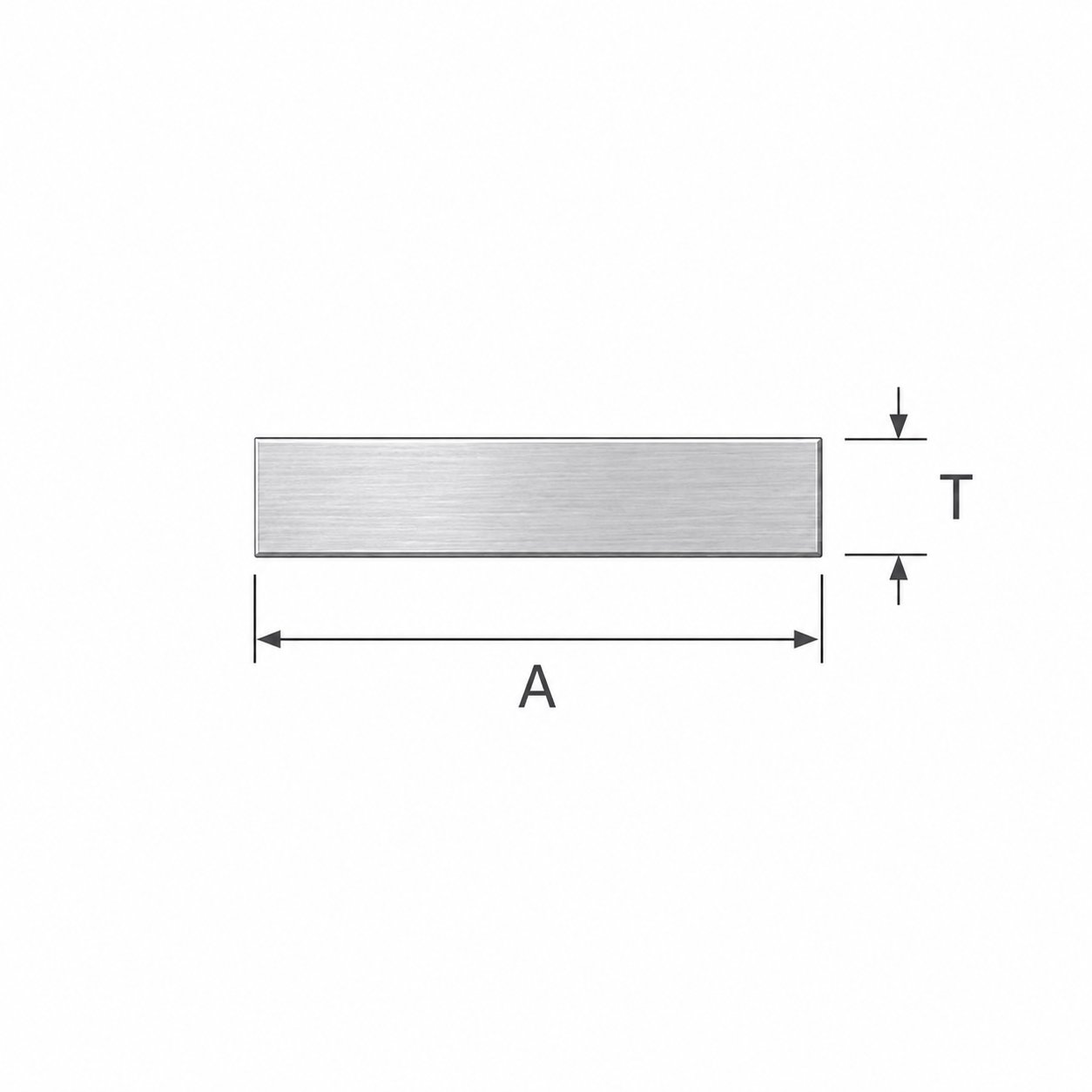

Dimensions and technical specification
- Section type: flat bar (flat profile)
- Width (A): 20 mm
- Thickness (T): 10 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 1.08 kg
- Linear weight: 0.54 kg/m
Technical data
| Length [mm] | 2000 |
| Thickness [mm] | 10 |
| Material | Aluminium |
