Aluminium flat bar 15×3 mm EN AW-6060 T64, length 2000 mm
0
Description

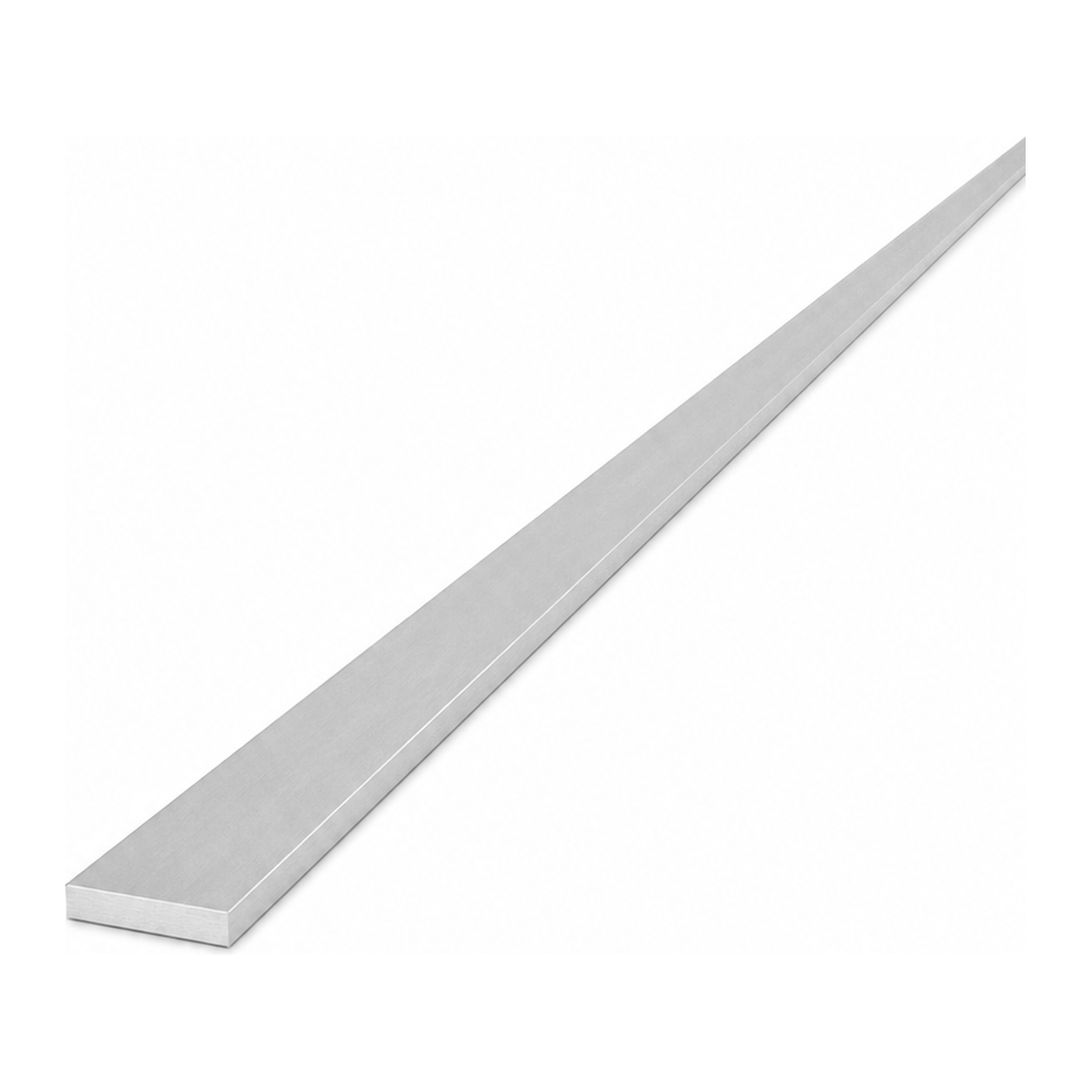

Aluminium flat bar 15×3 mm EN AW-6060 T64, length 2000 mm
Aluminium flat bar 15×3 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. The raw, non-anodised aluminium surface provides excellent corrosion resistance and allows for further processing — anodising, powder coating, or leaving in its natural state. Thanks to the low weight of just 0.24 kg per 2-metre section, the profile is easy to transport and install, whilst retaining sufficient rigidity for structural and finishing applications.
Applications
The aluminium flat bar 15×3 mm is suitable wherever a lightweight, corrosion-resistant bar with a small cross-section is required. It is used in supporting structures, finishing elements, frames, covers, as well as a material for minor repairs and installation modifications. In the photovoltaic industry, it can serve as a spacer shim, reinforcement, or connecting element.
Technical specification
- Cross-section: flat bar (flat profile)
- Width (A): 15 mm
- Thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 0.24 kg (0.12 kg/m)
The EN AW-6060 alloy in the T64 temper condition combines good machinability with sufficient strength for structural applications not subject to dynamic loading. The material is well suited to cutting, drilling and bending, allowing the profile to be quickly adapted to individual assembly requirements directly on site.
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 3 |
