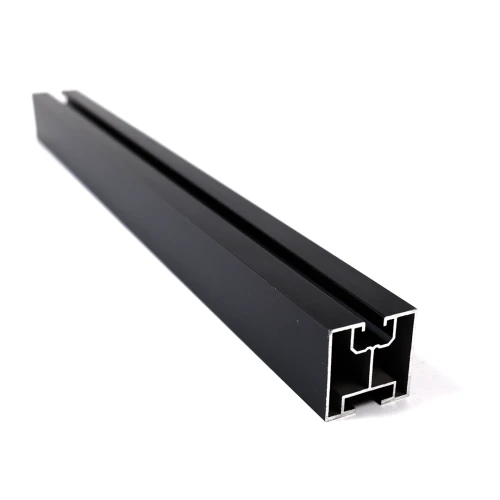

Aluminium Profile 443cm 40x40mm for Hammer Head Bolts Anodised

Go to Product feedback

Anodised aluminium 6060 mounting profile 443cm 40x40mm for photovoltaic panel installation. Mounting on M10 hammer head bolts with mid and end clamps. Extension possible using connectors.

Go to full description
with VAT without VAT
Price €55.27
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

Unavailable
Unavailable
Unavailable
Unavailable
pcs.
Availability:
Temporarily unavailable

Product features

Main parameters

  • Coating type Anodised – black
  • Mounting type T-bolt
  • Cross-section 40x40
  • Length [cm] 442
  • Cable channel None

[PIM] Profile montażowe #6

  • Length [mm] 4420
  • Profile [mm] 40×40
  • Slot Type Hammer bolt groove
  • Finish Anodised

Description

PV mounting profile 40 × 40 mm
40 × 40 mmCross-section
442 cm4420 mm
Aluminium 6060black anodised
1.1 mmWall
approx. 0.89 kg/mWeight per metre

Length 442 cm – lorry delivery (FTL)

Profiles of this length are shipped by lorry only; the cost depends on the order weight and is shown in the basket. Shorter lengths: up to 240 cm by freight, up to 195 cm by courier.

Product videosSee the profile up close and watch how the system parts are mounted.

What it is for

Aluminium mounting rail for photovoltaic installations. The panels are fixed on top of the profile with mid and end clamps, and the profile is bolted underneath to roof hooks, adapters or triangles.

  • ✓You are mounting photovoltaic panels on roof hooks, adapters or triangles.
  • ✓You fix the panel clamps with M8 fixings (top channel).
  • ✓You connect the profile to the hook or adapter with an M10 hammer-head bolt, type 28/15, and a flange nut (bottom channel).
  • ✓You need a 442 cm length in black (anodised) – other lengths are in the comparison table below.

Don't mix up the profiles

Do you have M10 hexagon bolts? Choose the profile for M10 hexagon bolts – this profile has a bottom channel for hammer-head bolts.

Profile cross-section

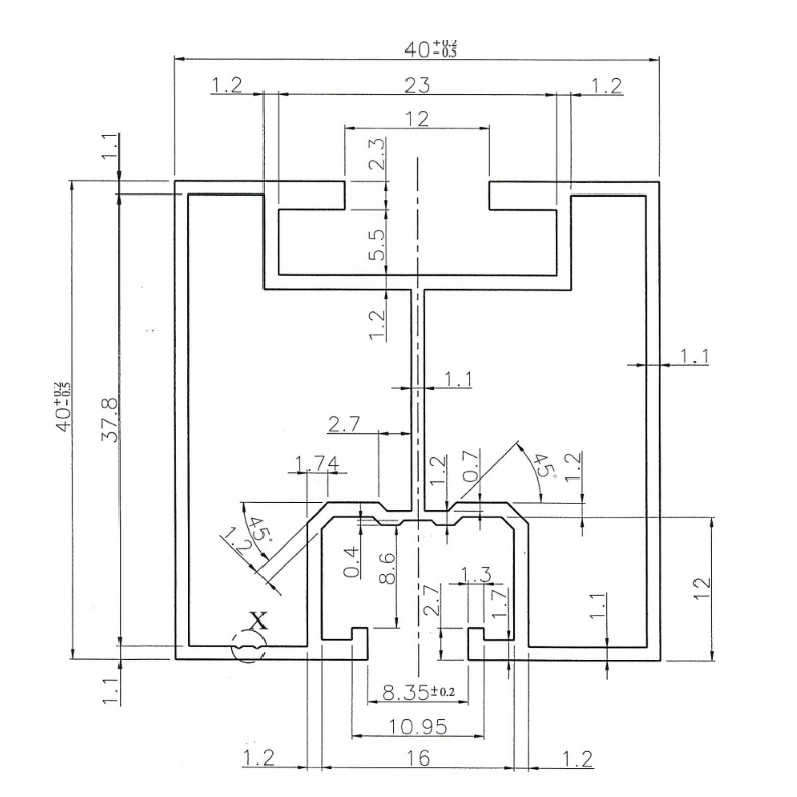

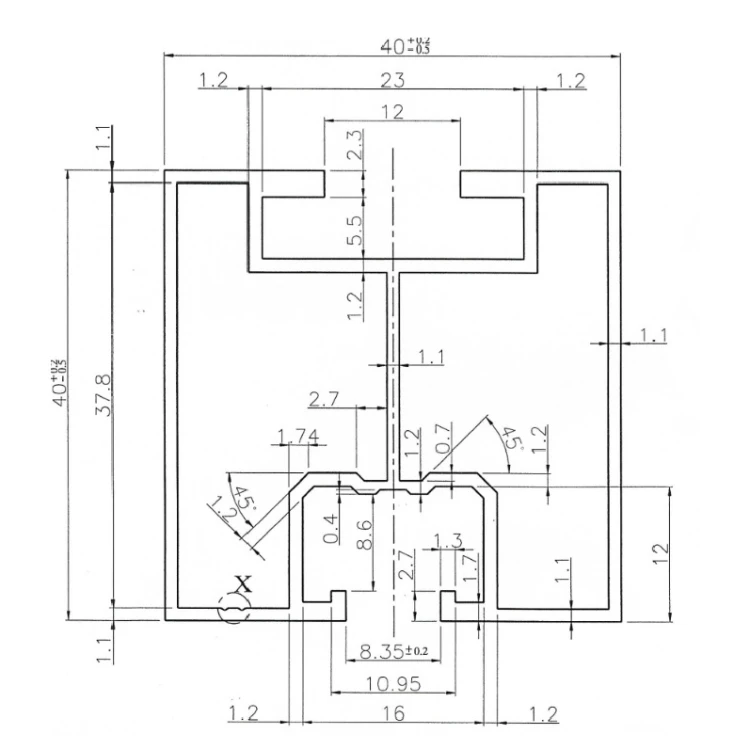

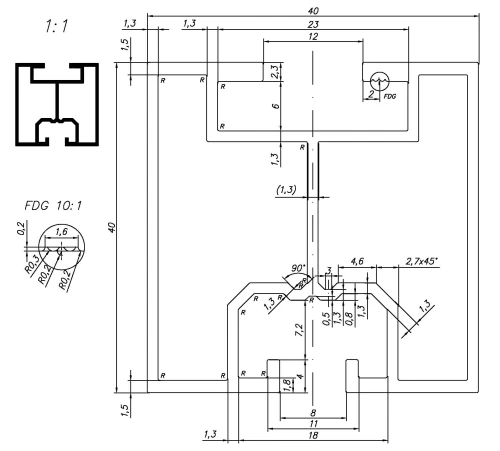

Cross-section drawing of the 40 × 40 mm profile: width 40 mm, height 40 mm, top channel slot 8.35 mm, bottom channel slot 12 mm
Enlarge cross-section
Topchannel for module clamps (M8)Bottomchannel for M10 28/15 hammer-head bolts

Indicative drawing, nominal dimensions in mm. The manufacturer's drawing with tolerances is in the downloadable files.

Choosing the fixings

DIN 557 M8 square nutTop channel · slot 8.35 mm, width 16 mmM8 T-nut or DIN 557 M8 square nut
For module mid and end clamps – choose clamps to match the module frame height.
bolt M10×25Bottom channel · slot 12 mm, width 23 mmbolt M10×25
bolt M10×30
Choose the bolt length to suit the fixing. For roof hooks, adapters or triangles.
M10 flange nutNutM10 flange nut
For the bolt in the bottom channel.
ExtendingProfile connectors – sold separately

Disclaimer

Support spacing and load capacity are determined by the structural design – taking into account snow and wind loads and the roof structure.

Technical data

Cross-section40 × 40 mm
Length4420 mm
Wall thickness1.1 mm
Top channel slot8.35 mm
Top channel width16 mm
Bottom channel slot12 mm
Bottom channel width23 mm
Alloyaluminium 6060
Finishblack anodised
Weight per metreapprox. 0.89 kg/m

Nominal dimensions according to the manufacturer's data sheet; weight is approximate.

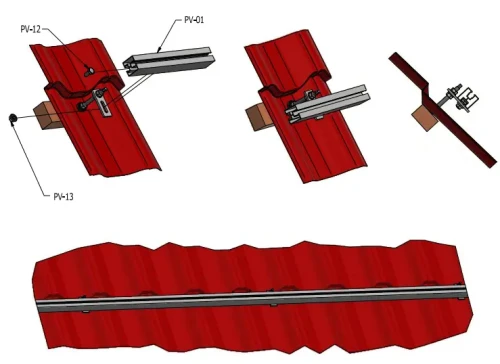

Installation exampleEnlarge installation example

Manufacturer's illustration: profile bolted through the bottom channel to the fixings on a trapezoidal sheet roof.
