Aluminium PV Mounting Profile Connector 20 cm – Channel 25×45×25 mm

Go to Product feedback

PV mounting profile connector, 6060 aluminium, channel 25×45×25 mm, wall thickness 2.5 mm. Length 20 cm, mounting holes 10.5 mm. Weight 0.12 kg. Natural corrosion resistance, black anodised version available. For joining PV mounting profiles with a 25×45×25 mm channel cross-section.

Go to full description
with VAT without VAT
Price €1.07
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Aluminium PV Mounting Profile Connector 20 cm – Channel 25×45×25 mm

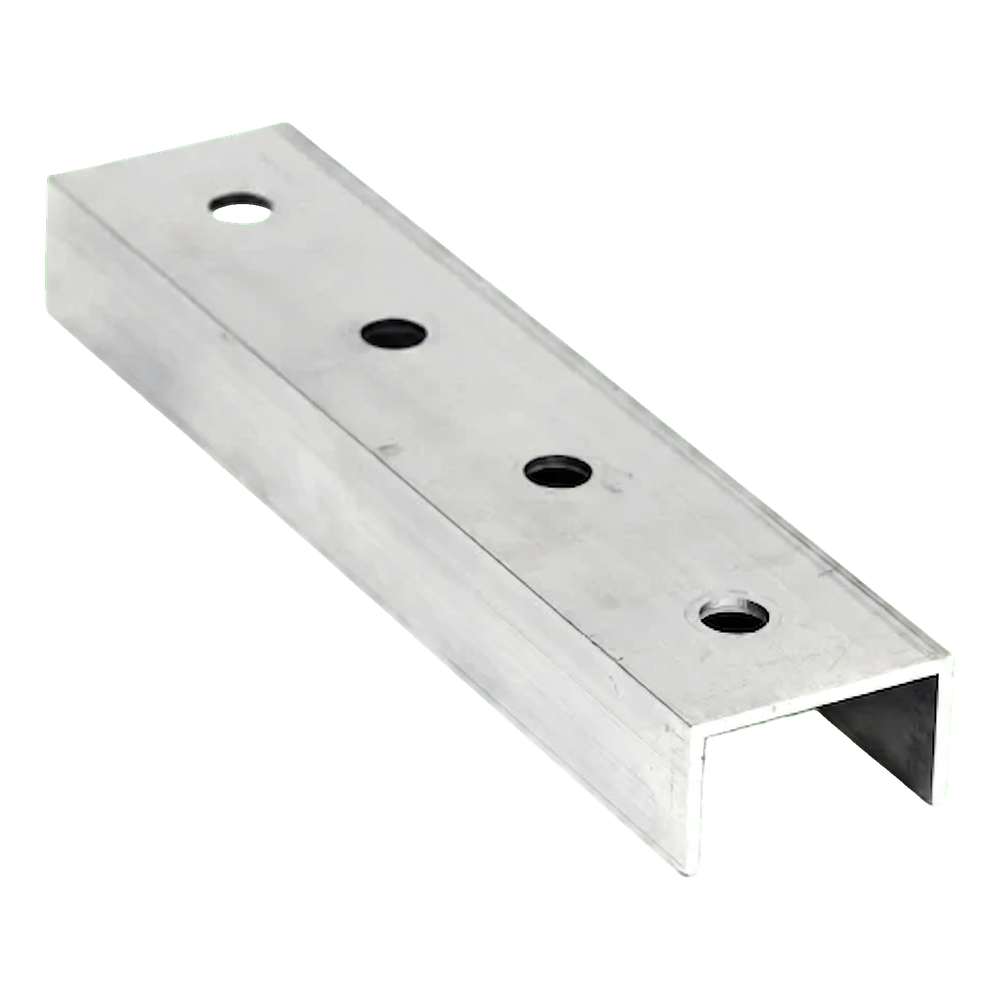

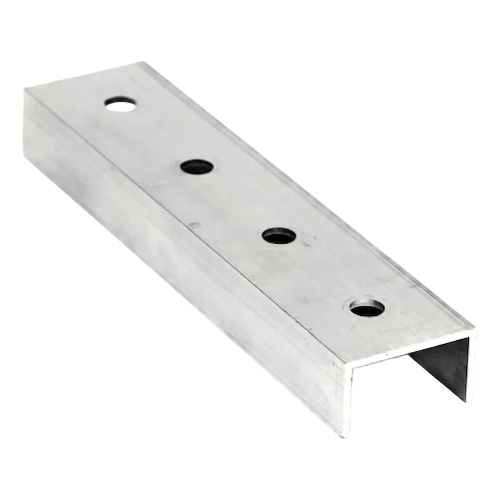

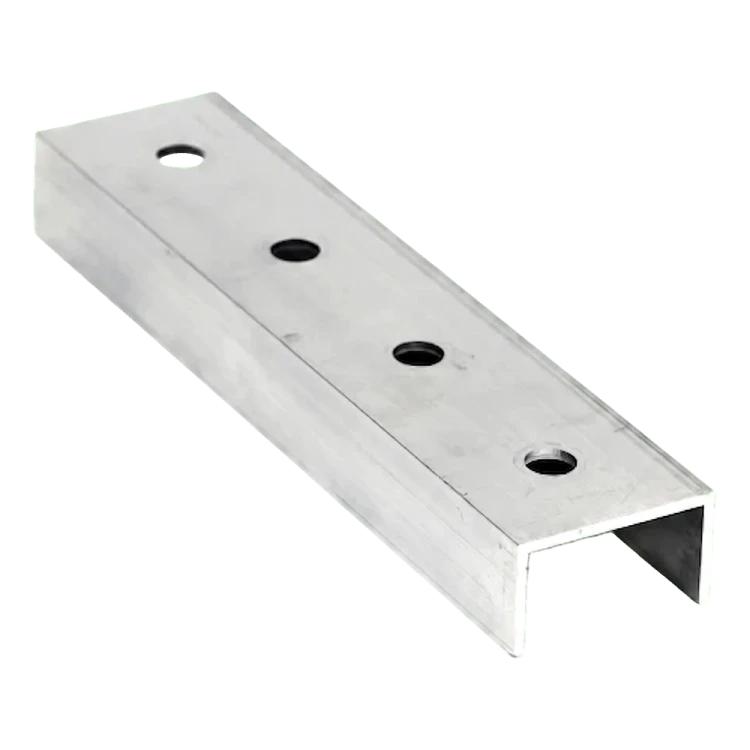

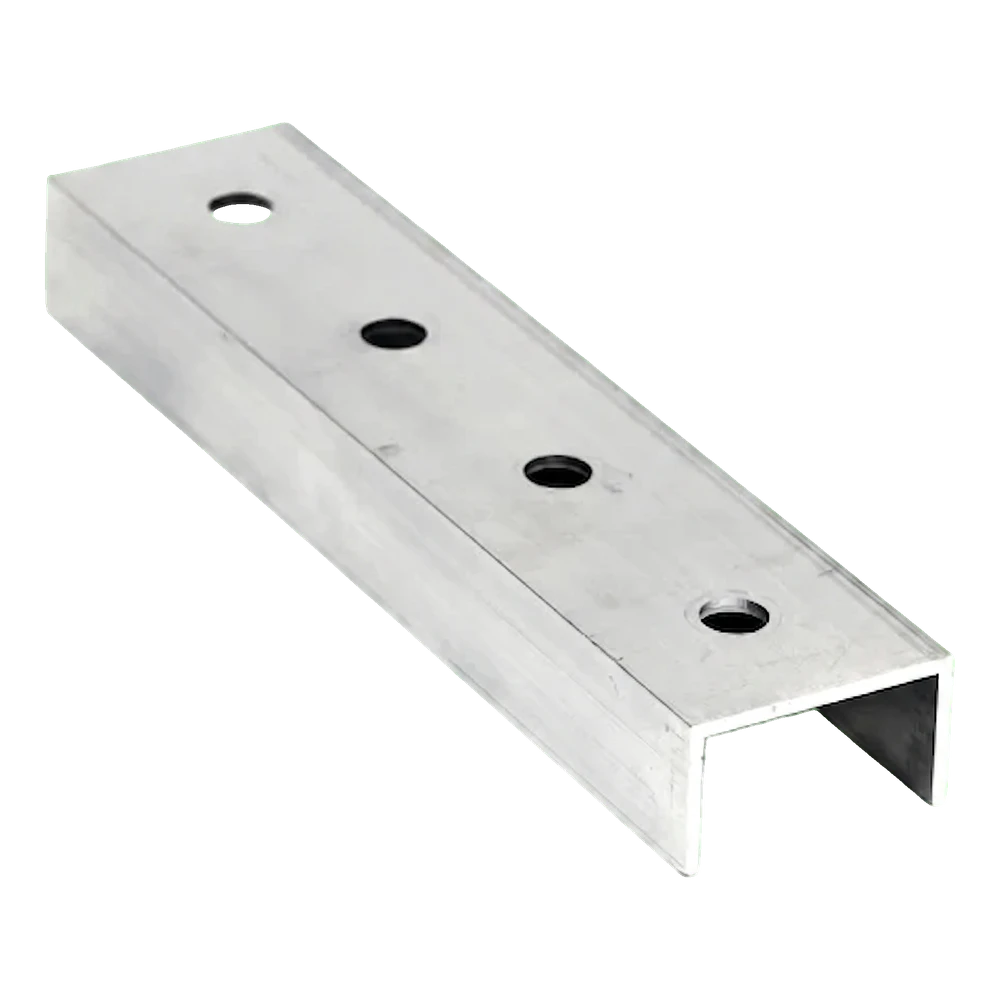

20 cm aluminium profile connector with mounting holes – perspective view
20 cm aluminium profile connector with mounting holes – perspective view

The 20 cm profile connector is an aluminium mounting component in the shape of a channel, designed for extending profiles in photovoltaic structures. Thanks to its 25×45×25 mm profile, it fits perfectly into standard PV mounting rails, providing a rigid and durable connection between two adjacent profile sections. The connector is made of 6060 aluminium, which combines low weight with good mechanical strength and natural corrosion resistance — eliminating the need for additional surface protection under typical roof conditions. Pre-made mounting holes, symmetrically arranged on the upper flange, allow for quick bolted assembly without the need for drilling on site. The product is also available in a black anodised version, providing even greater resistance to weather conditions and an aesthetic finish matching dark modules and profiles.

Key benefits for the installer

  • Quick joining of mounting profiles without additional processing — pre-made holes eliminate the need for on-site drilling
  • Aluminium ensures a lightweight structure and natural corrosion resistance throughout the entire lifespan of the installation
  • Good mechanical strength and impact resistance ensure connection stability in variable weather conditions
  • Anodising option available — black version for installations requiring uniform colouring
  • Universal channel compatible with standard PV mounting profiles
Video presenting the PV mounting profile connector
Video presenting the application of the profile connector in a photovoltaic structure

Technical parameters

Component typeprofile connector (channel)
Length / adjustment range20 cm
Thread / sizeholes 10.5 mm

Material and finish

Material6060 aluminium
Coating / corrosion resistancenatural corrosion resistance; black anodised version available

Assembly and compatibility

Compatible profilesPV mounting profiles with a 25×45×25 mm channel cross-section

Other parameters

Weight0.12 kg
Channel25×45×25 mm, wall thickness 2.5 mm
