Aluminium Flat Bar EN AW-6060 T64 – 80×20 mm, Length 2000 mm
0
Description

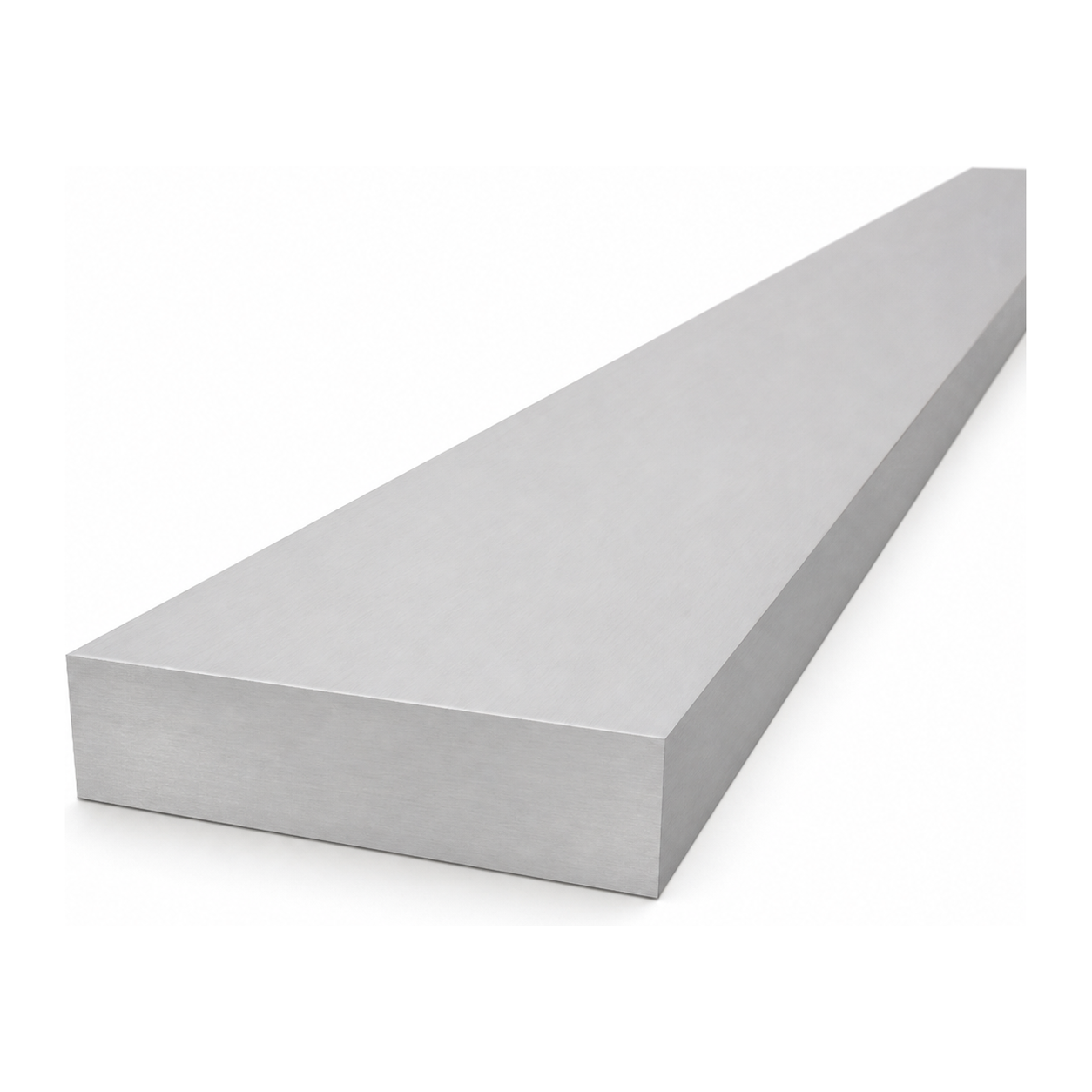

Aluminium Flat Bar EN AW-6060 T64 – 80×20 mm, Length 2000 mm
Aluminium flat bar 80×20 mm with a length of 2000 mm, manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). A versatile flat profile designed for load-bearing structures, mounting frames, finishing elements and repairs. By utilising aluminium, the profile combines high rigidity with low self-weight and natural corrosion resistance, eliminating the need for additional surface protection in most applications.
The EN AW-6060 alloy in the T64 heat treatment condition offers good mechanical strength along with excellent machinability, bending and weldability. The raw (non-anodised) surface allows for further finishing — anodising, powder coating or leaving in its natural state.

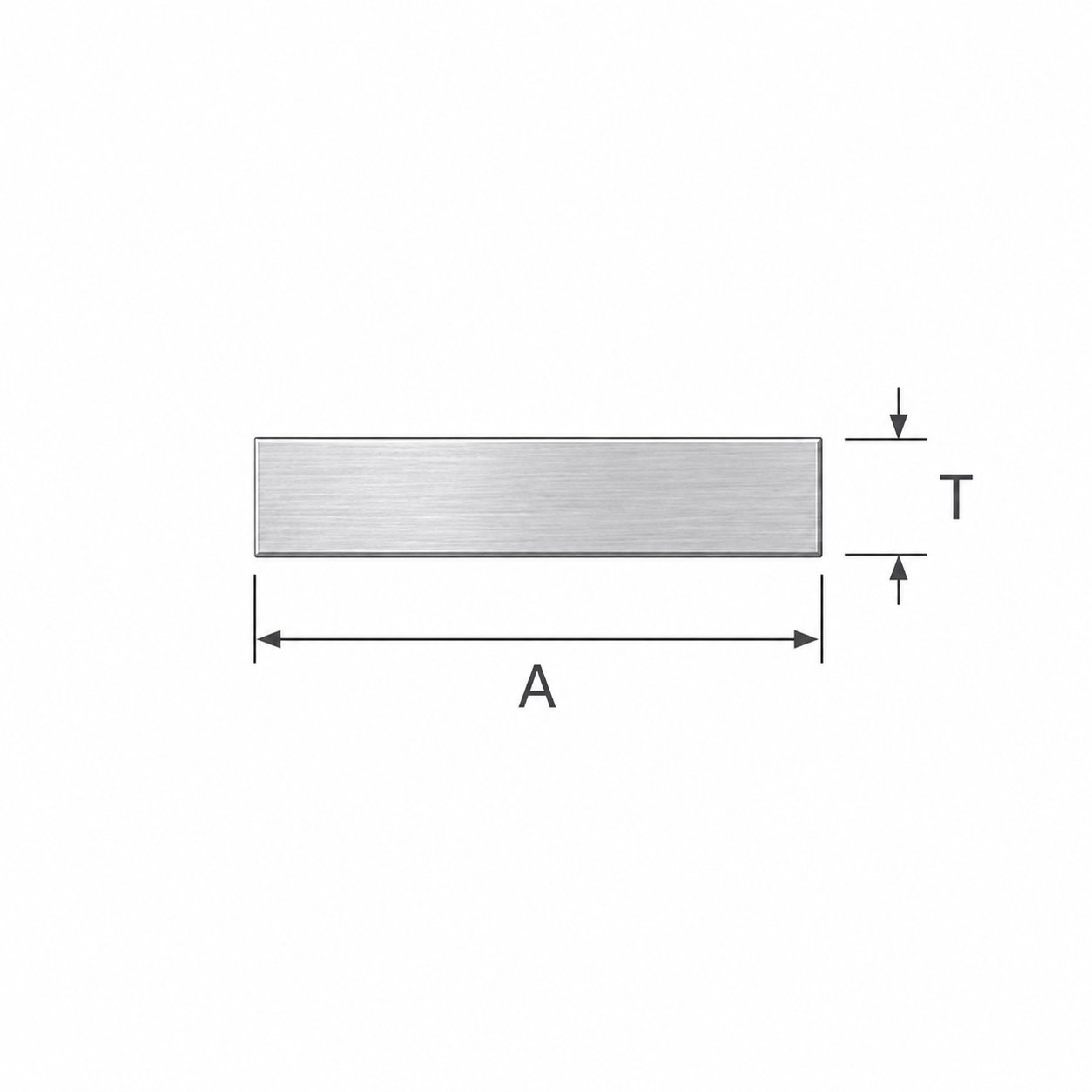

Dimensions and Technical Specifications
- Profile type: flat bar (flat profile)
- Width (A): 80 mm
- Thickness (T): 20 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per piece (2 m): 8.64 kg
- Linear weight: 4.32 kg/m
Applications
The 80×20 mm aluminium flat bar is suitable wherever a rigid, lightweight and weather-resistant structural element is required. Typical applications include:
- Supporting structures and mounting frames (including photovoltaic installations)
- Finishing and decorative elements — trims, strips, surrounds
- Bases, connectors and reinforcements for steel and aluminium structures
- Repairs and modernisation of existing structures
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 20 |
