Aluminium Flat Bar EN AW-6060 T64 – 80×15 mm, Length 2000 mm
0
Description

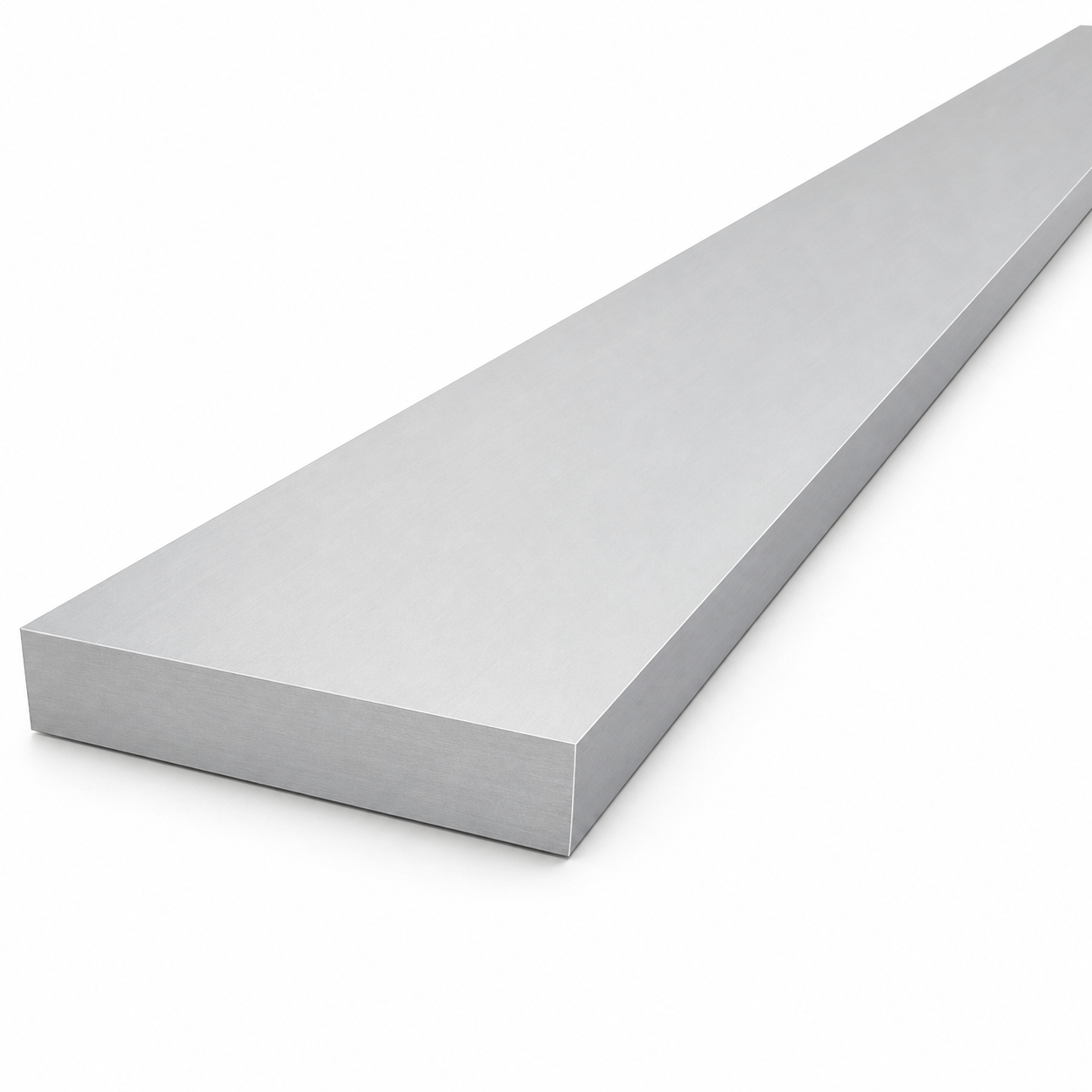

Aluminium Flat Bar EN AW-6060 T64 – 80×15 mm, Length 2000 mm
Aluminium flat bar 80×15 mm made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), length 2000 mm. A flat profile with a raw, non-anodised surface — ready for further processing, anodising, or direct use in aluminium structures, mounting frames, finishing elements, and repairs.
The EN AW-6060 alloy in the T64 temper combines good machinability with high corrosion resistance, making this flat bar suitable for outdoor use without the need for additional surface protection. Thanks to the low specific weight of aluminium, a 2 m length weighs just 6.60 kg, making it easy to transport and install on site.
Dimensions and Technical Data
- Section type: flat bar (flat profile)
- Width (A): 80 mm
- Thickness (T): 15 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 6.60 kg (unit weight 3.3 kg/m)
Applications
The 80×15 mm aluminium flat bar is ideal wherever a rigid, lightweight, and corrosion-resistant flat profile is required. The most common applications include:
- Load-bearing structures and reinforcement of mounting frames
- Façade and cladding finishing elements
- Bases and spacer pads for photovoltaic structures
- Frames, clamps, and connectors in industrial installations
- Repairs and modifications to aluminium components on site
