Aluminium Flat Bar EN AW-6060 T64 – 50×5 mm, Length 2000 mm
0
Description

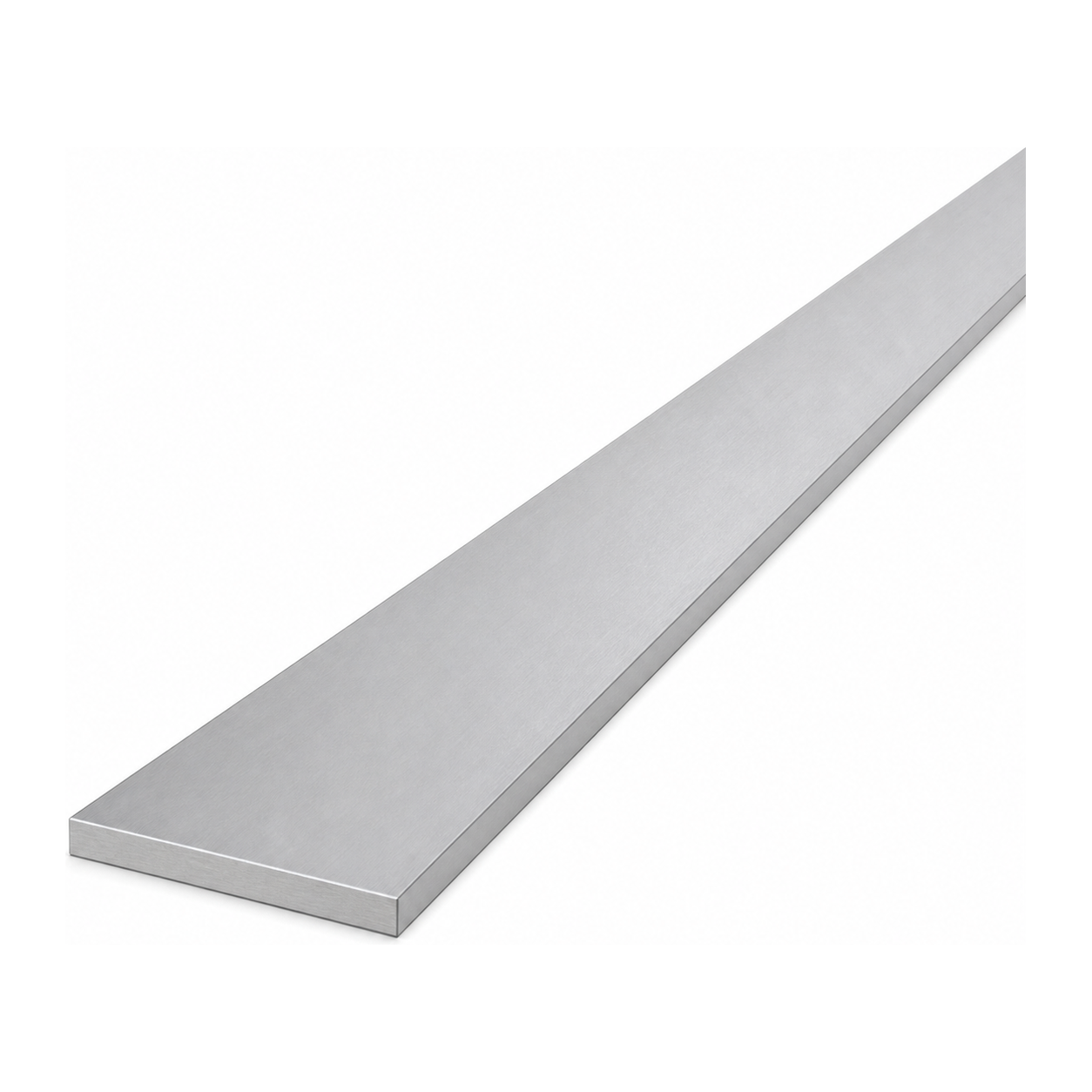

Aluminium Flat Bar EN AW-6060 T64 – 50×5 mm, Length 2000 mm
Aluminium flat bar 50×5 mm made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for support structures, frames, finishings and repairs. Thanks to its low weight of just 1.40 kg per 2-metre length and high corrosion resistance, this flat bar is suitable wherever durability, lightness and ease of processing are important — from building substructures for photovoltaic installations to scaffolding components and technical finishings.
The EN AW-6060 alloy in the T64 temper condition provides good rigidity while retaining sufficient ductility for bending and forming on site. The raw (non-anodised) surface allows for further processing — anodising, powder coating or leaving in its natural state for interior applications.
Technical Specification
- Cross-section: flat bar (flat profile)
- Width (A): 50 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 1.40 kg
- Unit weight: 0.70 kg/m
Applications
- Support structures and mounting frames
- Finishing and cladding elements
- Reinforcements and connectors in technical installations
- Repairs and modifications to existing aluminium structures
- Substructures for photovoltaic installations
