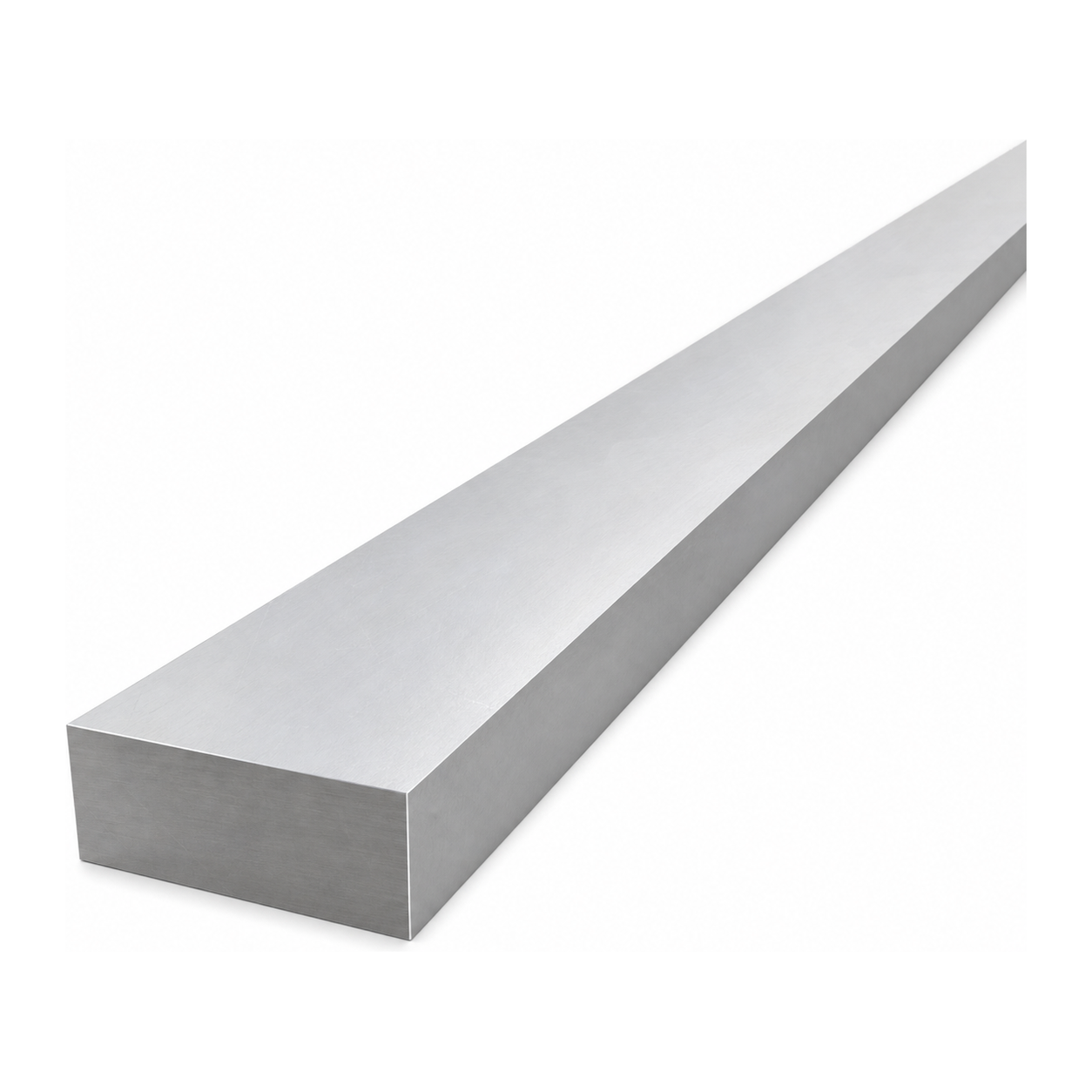

Aluminium Flat Bar EN AW-6060 T64 – 50×20 mm, Length 2000 mm
0
Description
Aluminium Flat Bar EN AW-6060 T64 – 50×20 mm, Length 2000 mm
Aluminium flat bar 50×20 mm in alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile designed for load-bearing structures, mounting frames, finishing elements, and repairs. Combining the lightweight nature of aluminium with the high rigidity of a rectangular cross-section, the flat bar is ideal wherever corrosion resistance and ease of mechanical processing are essential — without the need for additional surface protection.
The profile is supplied in lengths of 2000 mm with a raw (non-anodised) surface, ready for cutting, drilling, and welding. The low self-weight — just 5.40 kg per 2 m section — facilitates transport and on-site installation.
Technical Specification
- Cross-section type: flat bar (flat profile)
- Width (A): 50 mm
- Thickness (T): 20 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 5.40 kg (linear density 2.70 kg/m)
Applications
- Support structures and mounting frames for photovoltaic installations
- Finishing elements for facades, balustrades, and enclosures
- Reinforcements and connectors in aluminium structures
- Repairs and general workshop work
The EN AW-6060 alloy in the T64 temper provides good mechanical strength while retaining sufficient ductility for bending and forming. Aluminium from this series is easy to machine, weld using TIG/MIG methods, and anodise — offering complete flexibility for further processing during installation.
