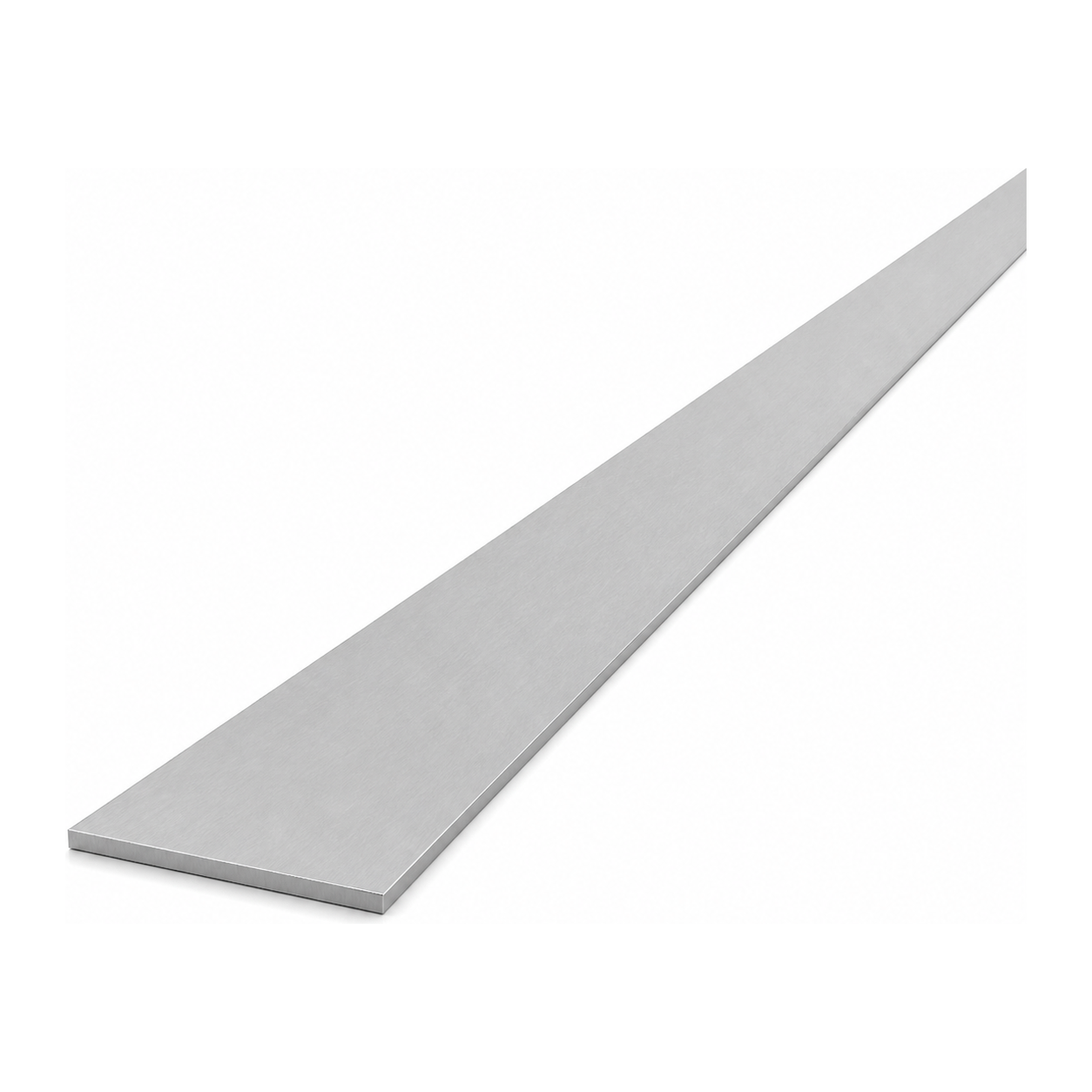

Aluminium Flat Bar EN AW-6060 T64 – 40×2 mm, length 2000 mm
0
Description
Aluminium Flat Bar EN AW-6060 T64 – 40×2 mm, length 2000 mm
Aluminium flat bar 40×2 mm with a length of 2000 mm, made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). A versatile flat profile designed for load-bearing structures, finishing elements, mounting frames and repair work. Thanks to its mill finish (non-anodised) surface, the material can be freely processed — cut, drilled, welded and anodised or painted as required by the project.
The EN AW-6060 alloy in T64 temper offers excellent resistance to atmospheric corrosion, high rigidity at low self-weight and ease of mechanical processing. The flat bar is an ideal component for constructing lightweight support structures, covers, brackets and bolted connections in photovoltaic, construction and industrial installations.
Dimensions and technical specification
- Profile type: flat bar (flat profile)
- Width (A): 40 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight: 0.42 kg (0.21 kg/m)
Benefits for the installer
- Low weight — just 0.21 kg/m, making transport and installation at height easier
- Corrosion resistance — the 6060 alloy requires no additional corrosion protection under typical atmospheric conditions
- Easy to process — can be cut, drilled, milled and welded with standard tools
- Mill finish surface — ready for anodising, powder coating or leaving without any finishing treatment
- Versatility — suitable for PV support structures, frames, covers, finishing elements and repairs
