Aluminium Flat Bar EN AW-6060 T64 – 40×10 mm, Length 2000 mm
0
Description

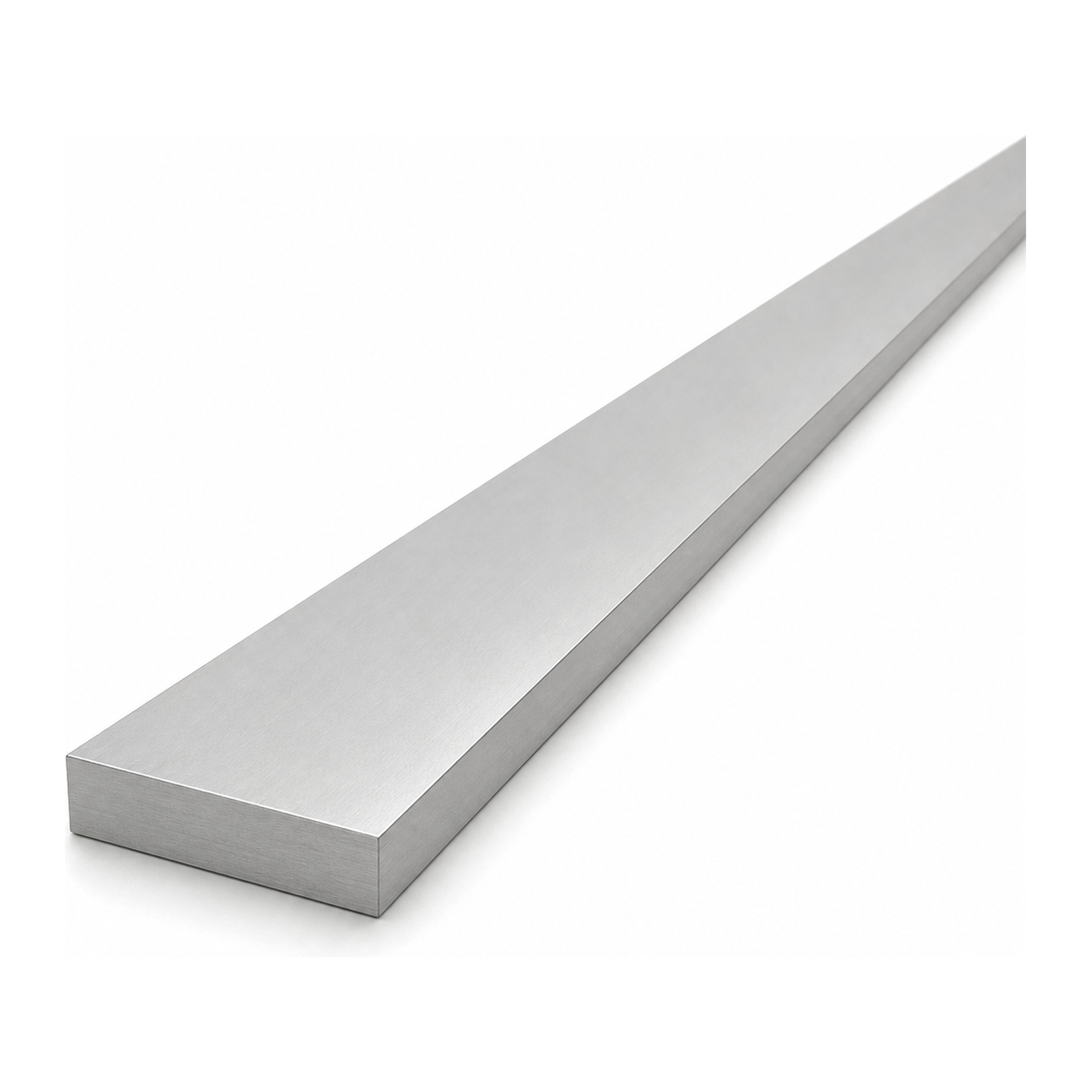

Aluminium Flat Bar EN AW-6060 T64 – 40×10 mm, Length 2000 mm
Aluminium flat bar 40×10 mm made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing and mounting applications. Thanks to its low self-weight of just 2.16 kg per 2-metre length and high corrosion resistance, the flat bar is an excellent choice as a reinforcing element for photovoltaic structures, mounting frames, supports and repair components.
The EN AW-6060 alloy in the T64 temper condition provides good rigidity whilst remaining easy to machine — cutting, drilling and tapping require no specialist tools. The raw (non-anodised) surface allows further processing: anodising, powder coating or direct installation in locations not exposed to atmospheric conditions.
Technical Specification
- Cross-section: flat bar (flat profile)
- Width (A): 40 mm
- Thickness (T): 10 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight: 2.16 kg (1.08 kg/m)
Applications
- Reinforcements and connectors in PV mounting structures
- Frame components, clamps and brackets in technical installations
- Finishing and protective profiles
- Repairs and temporary reinforcement of aluminium structures
- Manufacture of custom mounting components to size
