Aluminium Flat Bar EN AW-6060 T64 – 30×5 mm, Length 2000 mm
0
Description

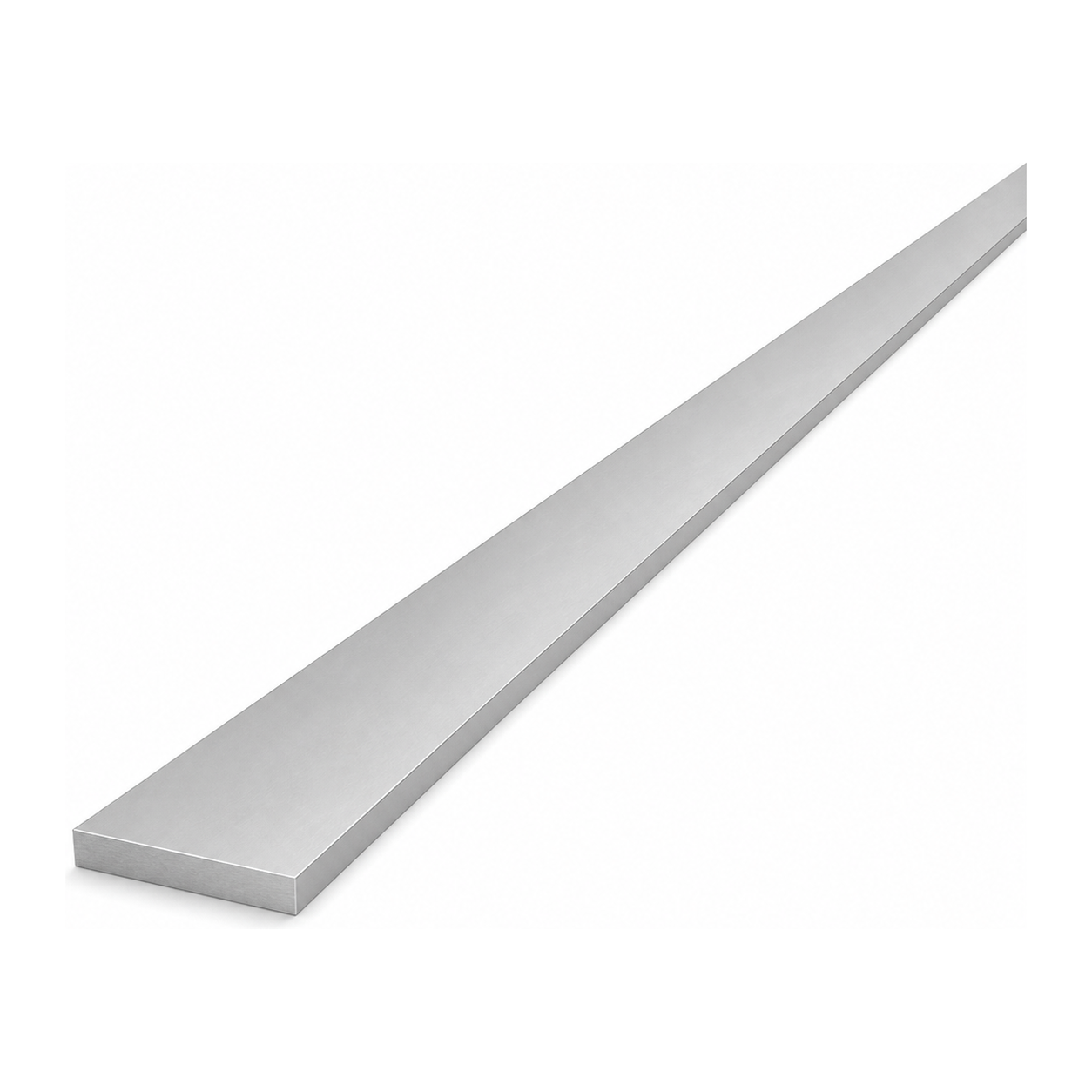

Aluminium Flat Bar EN AW-6060 T64 – 30×5 mm, Length 2000 mm
Aluminium flat bar 30×5 mm in alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, ideal for structural, finishing, and assembly work. Thanks to its low weight of just 0.82 kg per 2-metre length, it is convenient to transport and easy to machine, whilst also providing good rigidity and high corrosion resistance.
The aluminium alloy EN AW-6060 in the T64 temper combines good mechanical strength with excellent formability. The raw (non-anodised) surface allows for further processing — anodising, powder coating, or leaving in its natural state. The flat bar is suitable as a component for frames, reinforcements, spacer shims, fittings, finishing strips, and wherever a lightweight and durable flat profile is required.

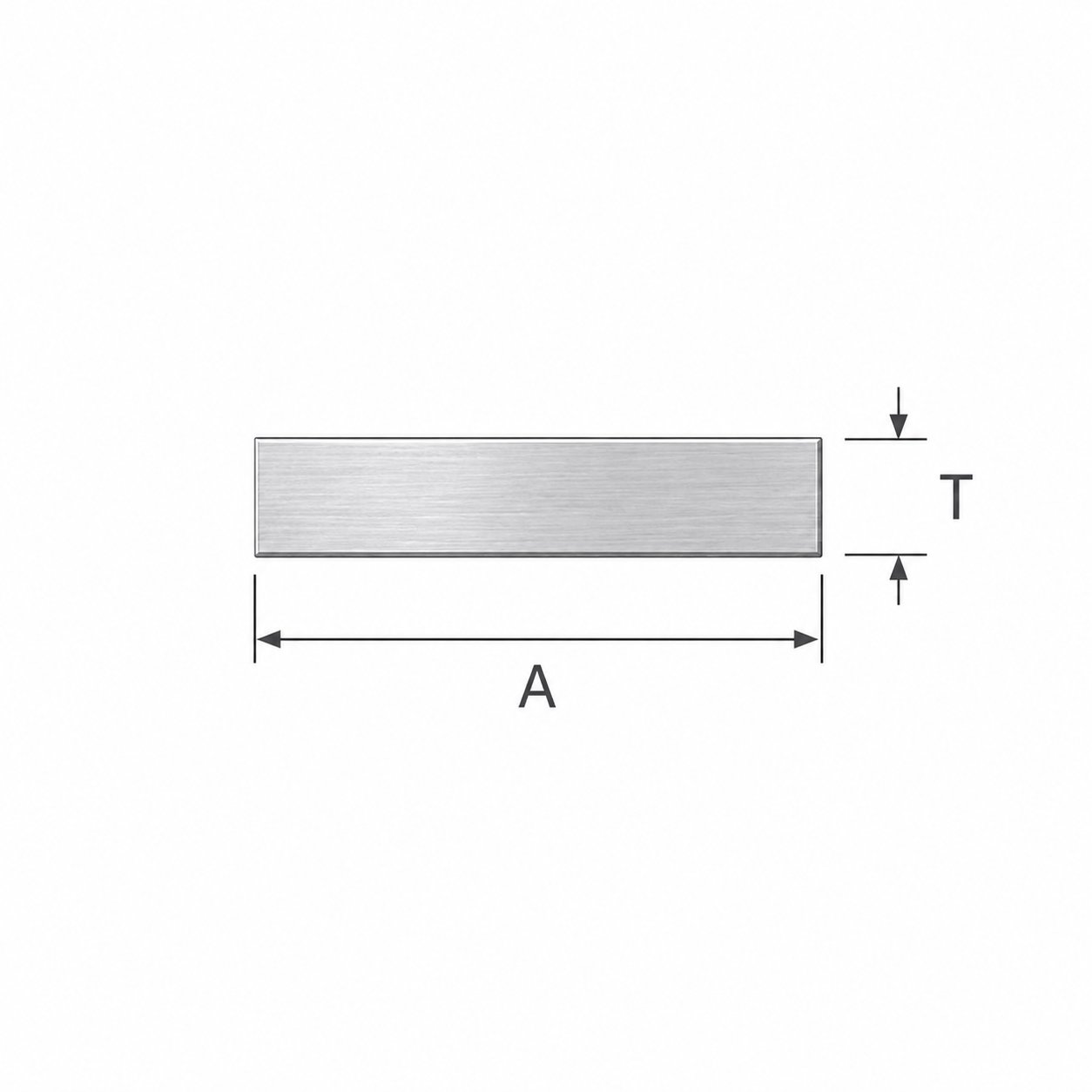

Technical Specification
- Profile type: flat bar (flat profile)
- Width (A): 30 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 0.82 kg
- Linear weight: 0.41 kg/m
Applications
- Aluminium structures and frames
- Finishing elements and mounting strips
- Spacer shims and reinforcements
- Repairs and maintenance work
- Projects requiring a lightweight, corrosion-resistant flat profile
