Aluminium Flat Bar EN AW-6060 T64 – 30×2 mm, Length 2000 mm
0
Description

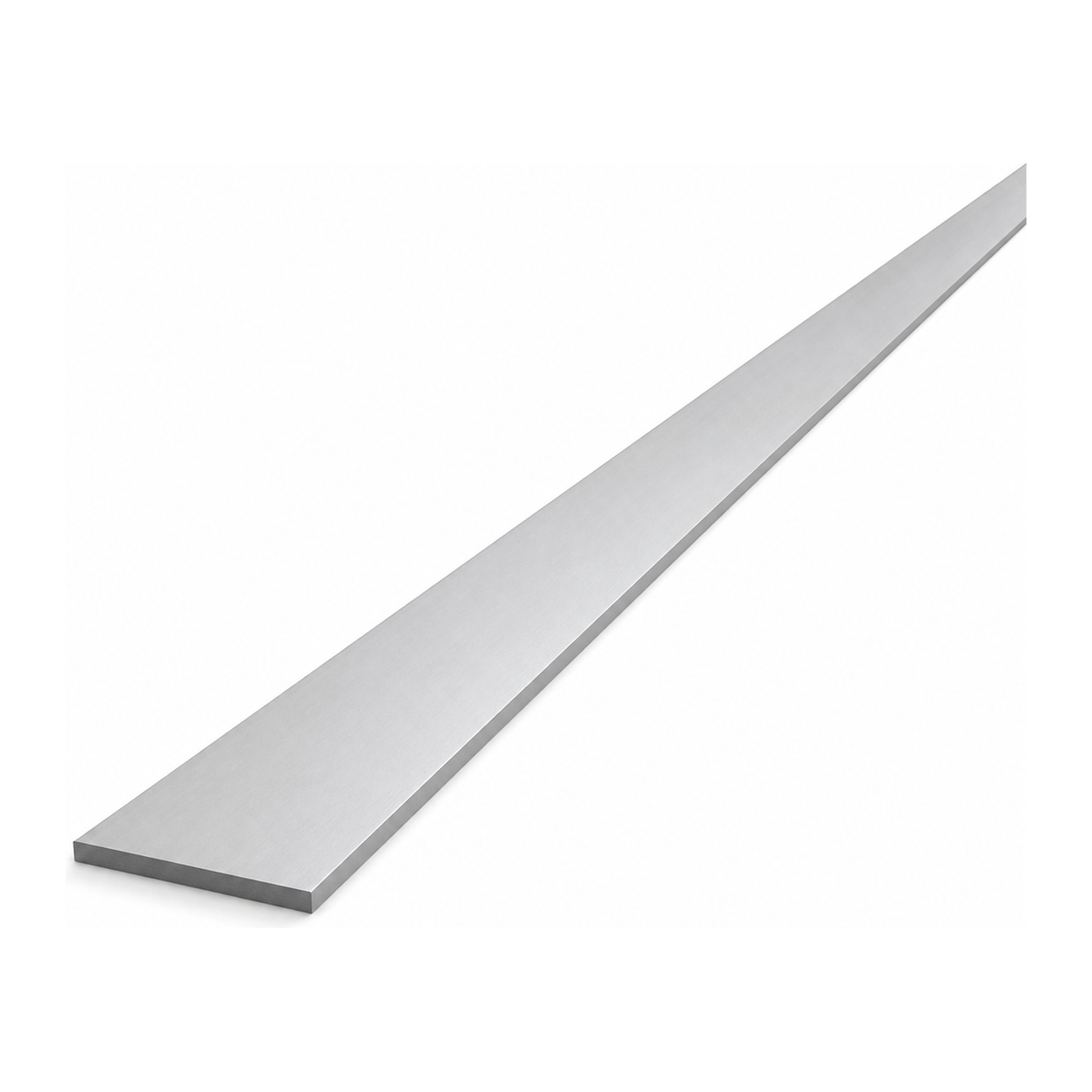

Aluminium Flat Bar EN AW-6060 T64 – 30×2 mm, Length 2000 mm
Aluminium flat bar 30×2 mm in alloy EN AW-6060 T64 (AlMgSi0.5 / PA38) is a versatile flat profile with a length of 2000 mm, designed for structural, finishing, and repair applications. Thanks to its low weight of just 0.32 kg per 2-metre length, the flat bar is exceptionally easy to transport and install — resulting in lower logistics costs and faster project completion.
The aluminium alloy EN AW-6060 in the T64 temper provides good rigidity and mechanical strength while maintaining a low self-weight. The material features natural corrosion resistance, eliminating the need for additional protective coatings in most indoor and outdoor applications. The raw (non-anodised) surface allows further processing — anodising, powder coating, or painting — in accordance with the requirements of a specific project.
Technical Specifications
- Section type: flat bar (flat profile)

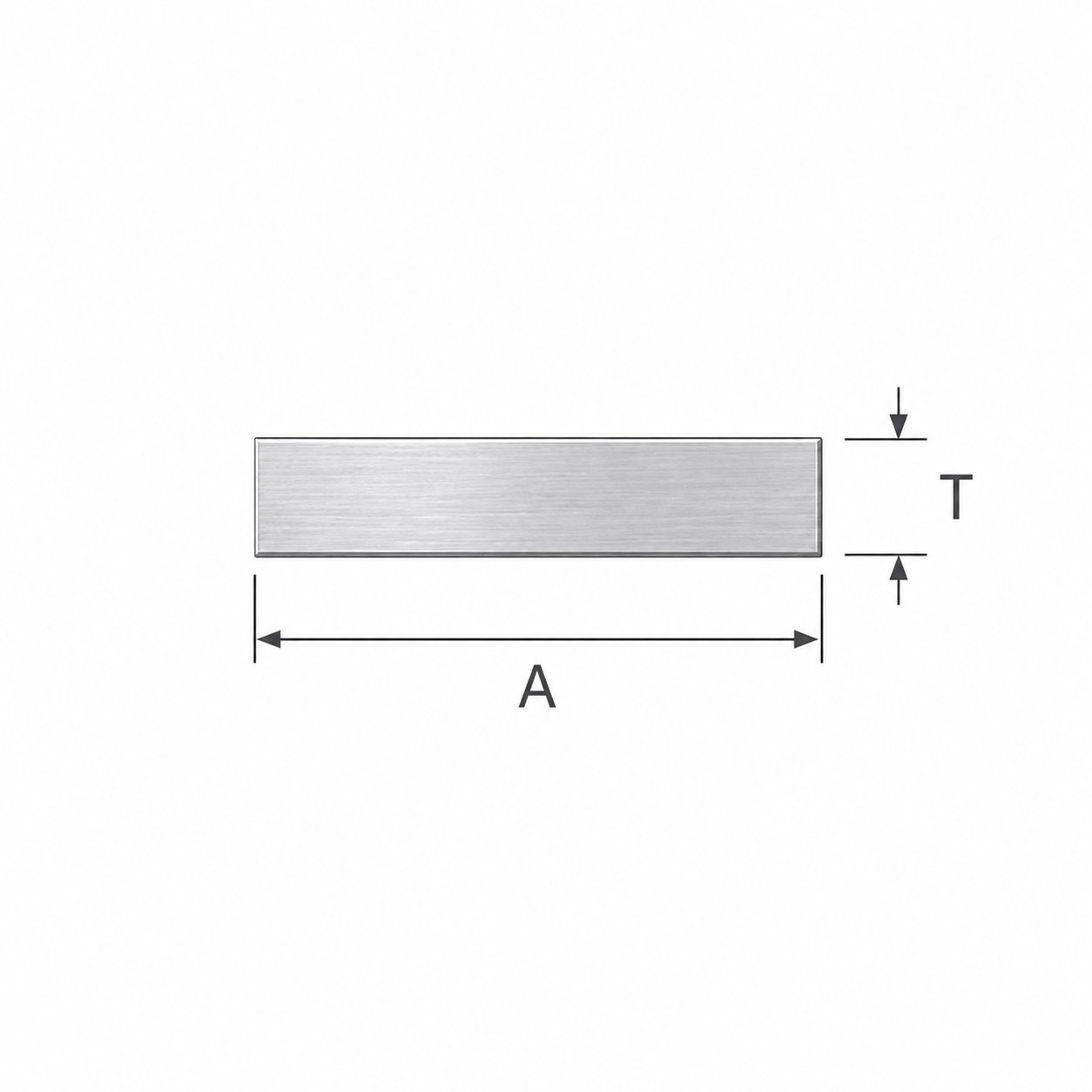

- Width (A): 30 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.32 kg (0.16 kg/m)
Applications
The 30×2 mm aluminium flat bar is suitable wherever a lightweight, rigid, and corrosion-resistant flat element is required. Typical applications include:
- Support structures and mounting frames
- Reinforcements and connectors in photovoltaic installations
- Finishing elements for façades, balustrades, and enclosures
- Cover strips, edge guards, and decorative profiles
- Repairs and modifications to aluminium structures
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 2 |
