Aluminium Flat Bar EN AW-6060 T64 – 25×2 mm, Length 2000 mm
0
Description
Aluminium Flat Bar EN AW-6060 T64 – 25×2 mm, Length 2000 mm
Aluminium flat bar 25×2 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. Thanks to its low weight of just 0.26 kg per 2-metre length and high corrosion resistance, it is suitable wherever lightweight construction and material durability are required. It is an ideal component for building frames, support structures, finishings and repairs in photovoltaic and general construction installations.
The surface of the profile is raw (non-anodised), allowing further processing — anodising, painting or powder coating — depending on the requirements of a specific project. The T64 heat treatment temper provides an optimal balance between rigidity and ease of cutting and forming.
Dimensions and Technical Specification

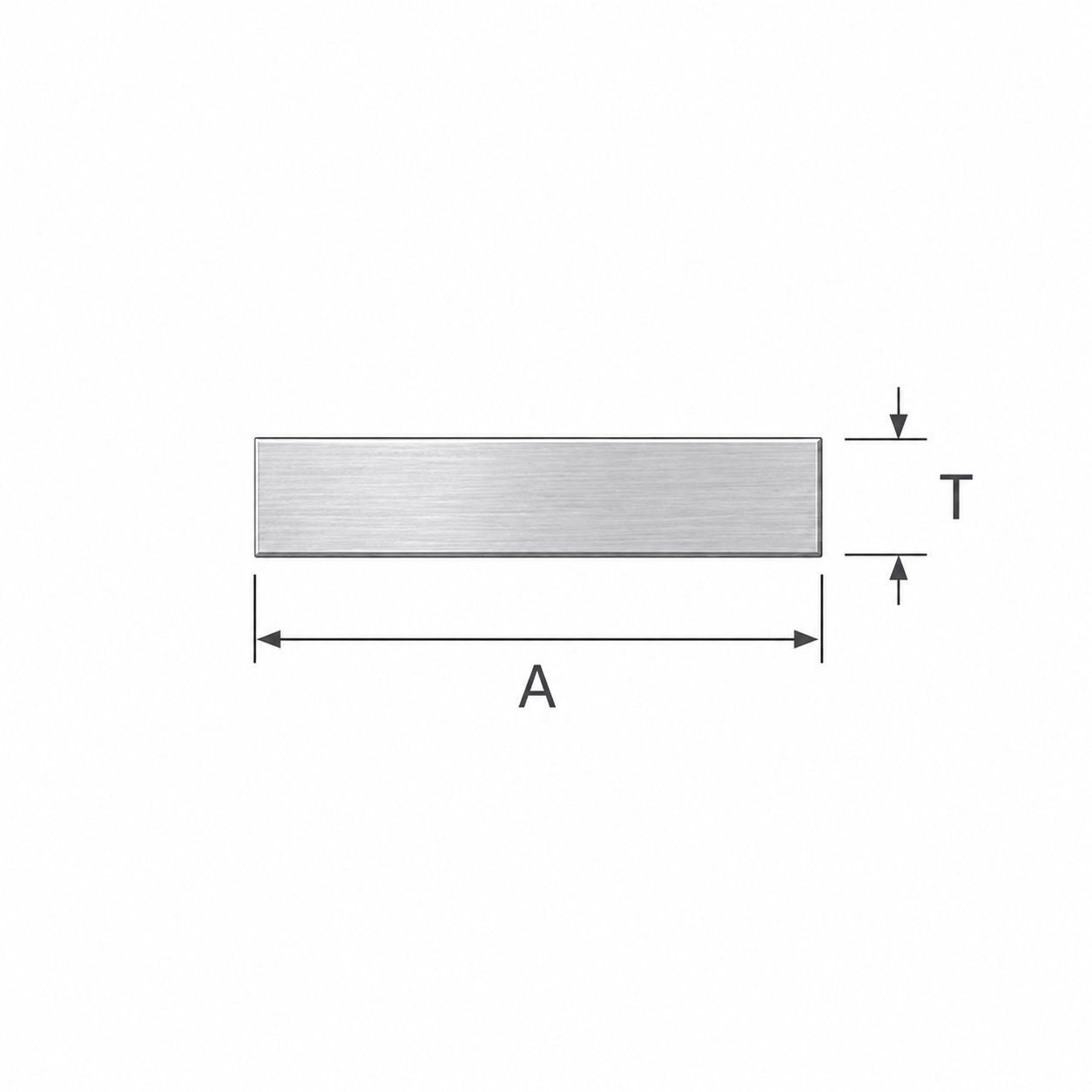

- Cross-section: flat bar (flat profile)
- Width (A): 25 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m length: 0.26 kg (0.13 kg/m)
Applications
The 25×2 mm aluminium flat bar is widely used in installation and structural work. It can serve as a reinforcing element, profile connector, cable guide, spacer or finishing strip. Its low linear weight (0.13 kg/m) facilitates transport and installation at height, while its corrosion resistance eliminates the need for additional anti-corrosion protection under standard operating conditions.
