Aluminium Flat Bar EN AW-6060 T64 – 15×4 mm, Length 2000 mm
0
Description

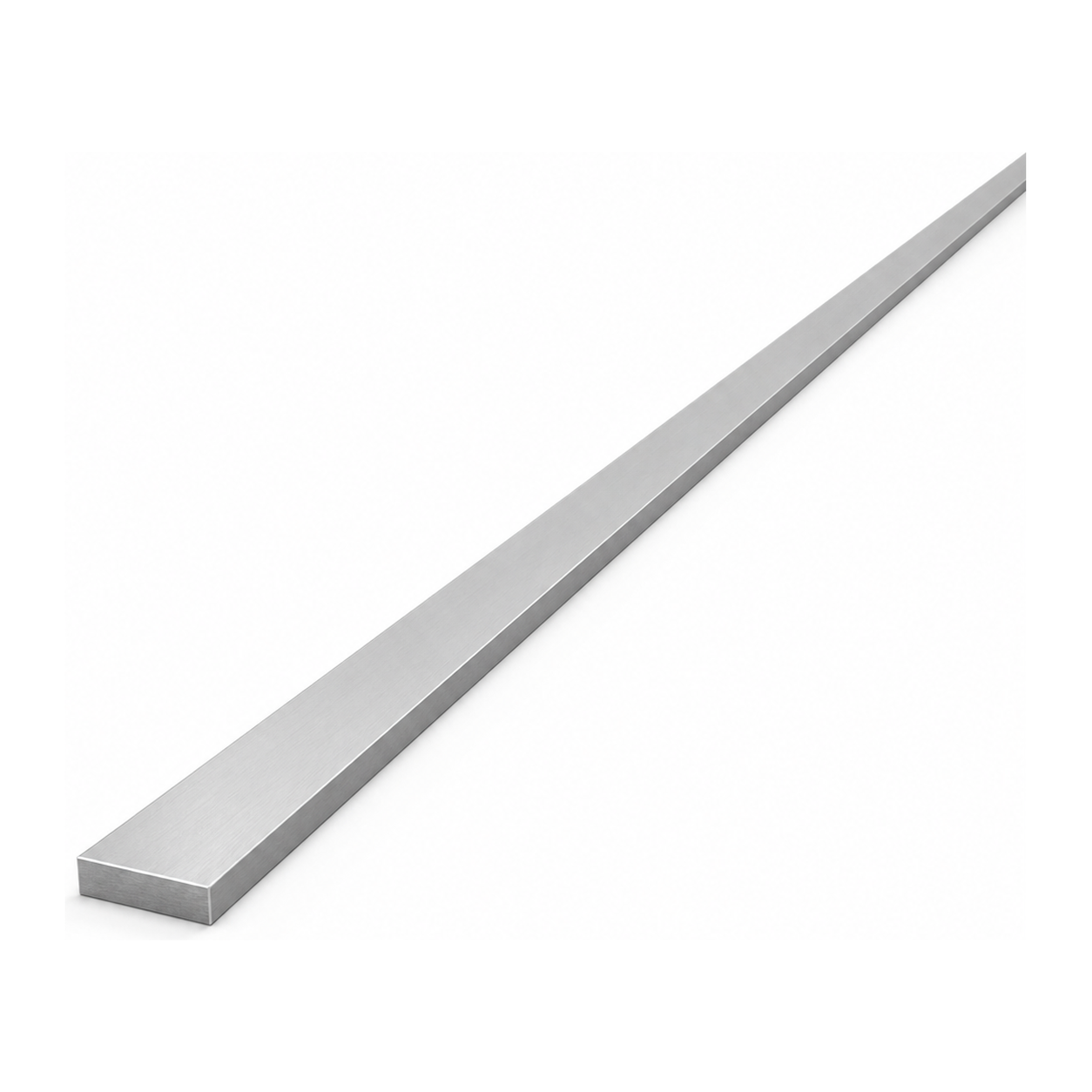

Aluminium Flat Bar EN AW-6060 T64 – 15×4 mm, Length 2000 mm
Aluminium flat bar 15×4 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. Thanks to its low weight of just 0.32 kg per 2-metre length, it is easy to handle and process, while still providing adequate rigidity and durability. The raw, unanodised surface allows for further processing — anodising, powder coating or leaving in its natural state.
The profile is suitable wherever a lightweight, corrosion-resistant structural element is required — from reinforcements for mounting frames, through edge finishes and guards, to repairs and custom aluminium structures in photovoltaic installations and general construction.
Technical Specification
- Profile type: flat bar (flat profile)

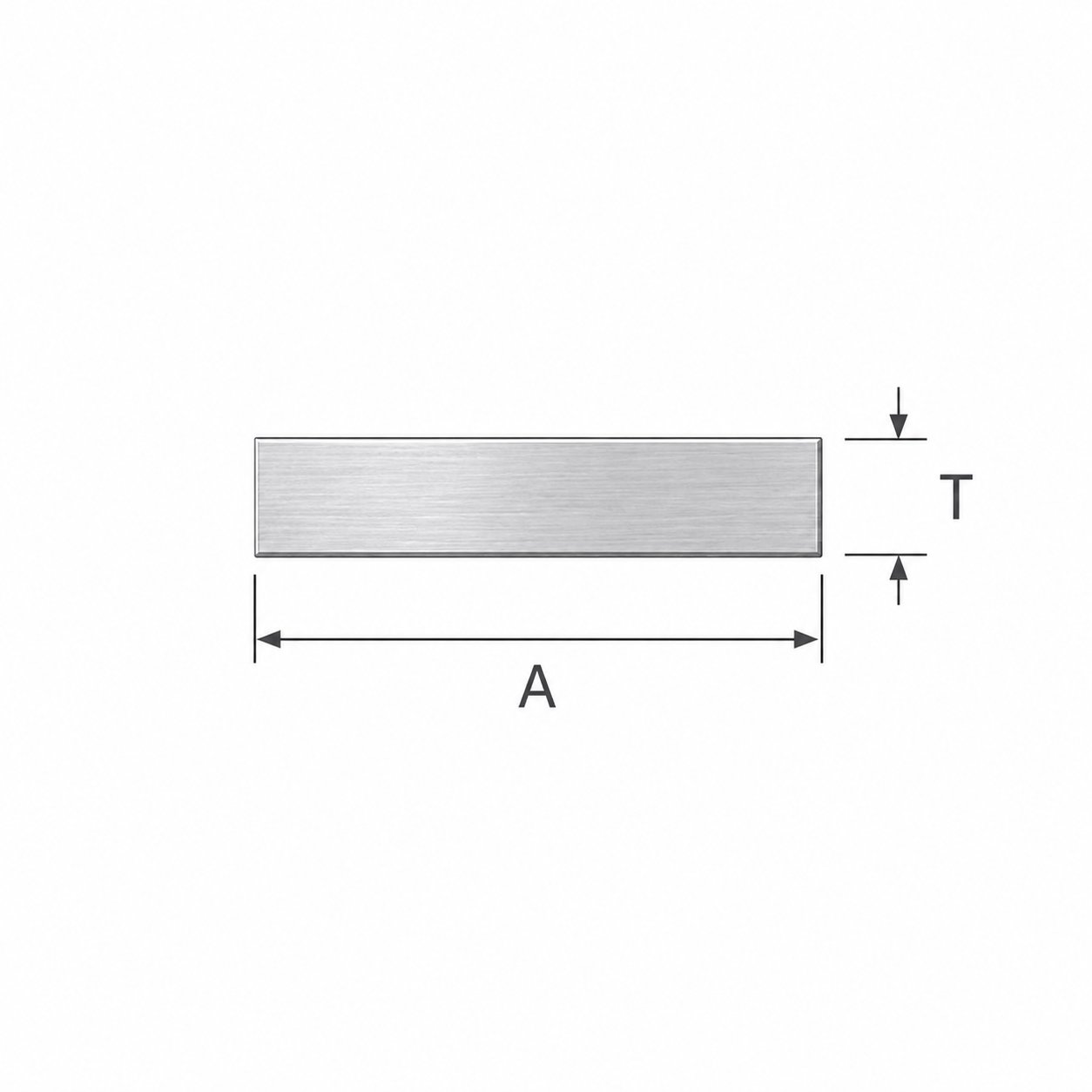

- Width (A): 15 mm
- Thickness (T): 4 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (unanodised)
- Weight (2 m): 0.32 kg (0.16 kg/m)
Applications
- Reinforcements and connectors in aluminium structures
- Edge finishes, strips and guards
- Frame components and mounting substructures
- Repairs, prototyping and workshop tasks
The EN AW-6060 alloy in T64 temper combines good machinability with high resistance to atmospheric corrosion. The profile can be cut, drilled, milled and welded using standard methods — an ideal base material for installation teams carrying out custom mounting solutions.
