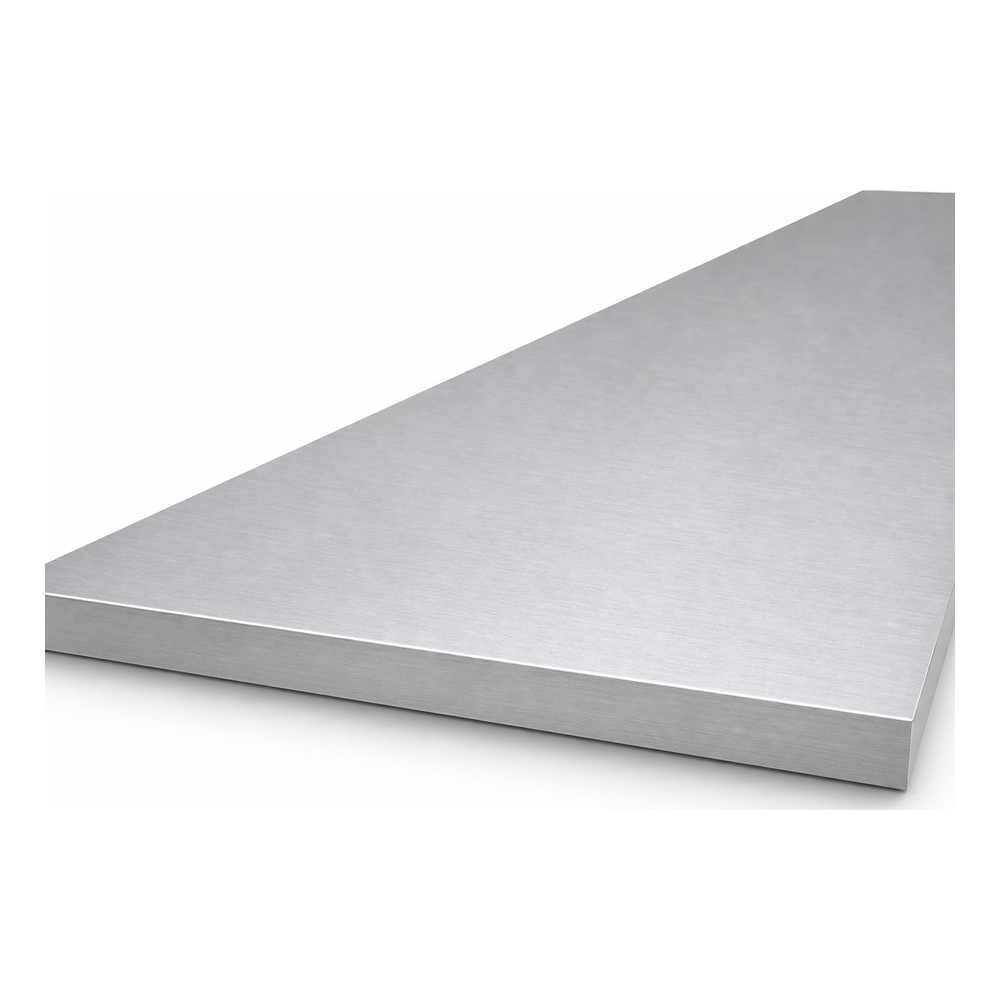

Aluminium Flat Bar EN AW-6060 T64 – 150×10 mm, Length 2000 mm
0
Description
Aluminium Flat Bar EN AW-6060 T64 – 150×10 mm, Length 2000 mm
Aluminium flat bar 150×10 mm is a robust flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), designed for structural, finishing, and repair applications. Thanks to its low weight of just 8.10 kg at a length of 2 metres combined with high rigidity, the flat bar is an excellent choice as a component for mounting frames, brackets, and reinforcements in photovoltaic and general construction installations. The raw (non-anodised) surface allows for further processing — painting, anodising, or powder coating — depending on project requirements.
Technical Specifications
- Cross-section: flat bar (flat profile)
- Width (A): 150 mm
- Thickness (T): 10 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 8.10 kg (4.05 kg/m)
Applications and Benefits
The EN AW-6060 alloy in the T64 temper combines good machinability with high corrosion resistance, eliminating the need for additional anti-corrosion treatment in many indoor applications. The flat bar is suitable for constructing support structures for PV installations, equipment frames and enclosures, façade finishing elements, and wherever a lightweight yet rigid profile with a large contact surface is required. The standard length of 2000 mm facilitates transport and storage, while the simple cross-sectional shape allows for quick cutting and fitting on site without specialist tools.
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 10 |
