Aluminium Flat Bar EN AW-6060 T64 – 10×2 mm, length 2000 mm
0
Description

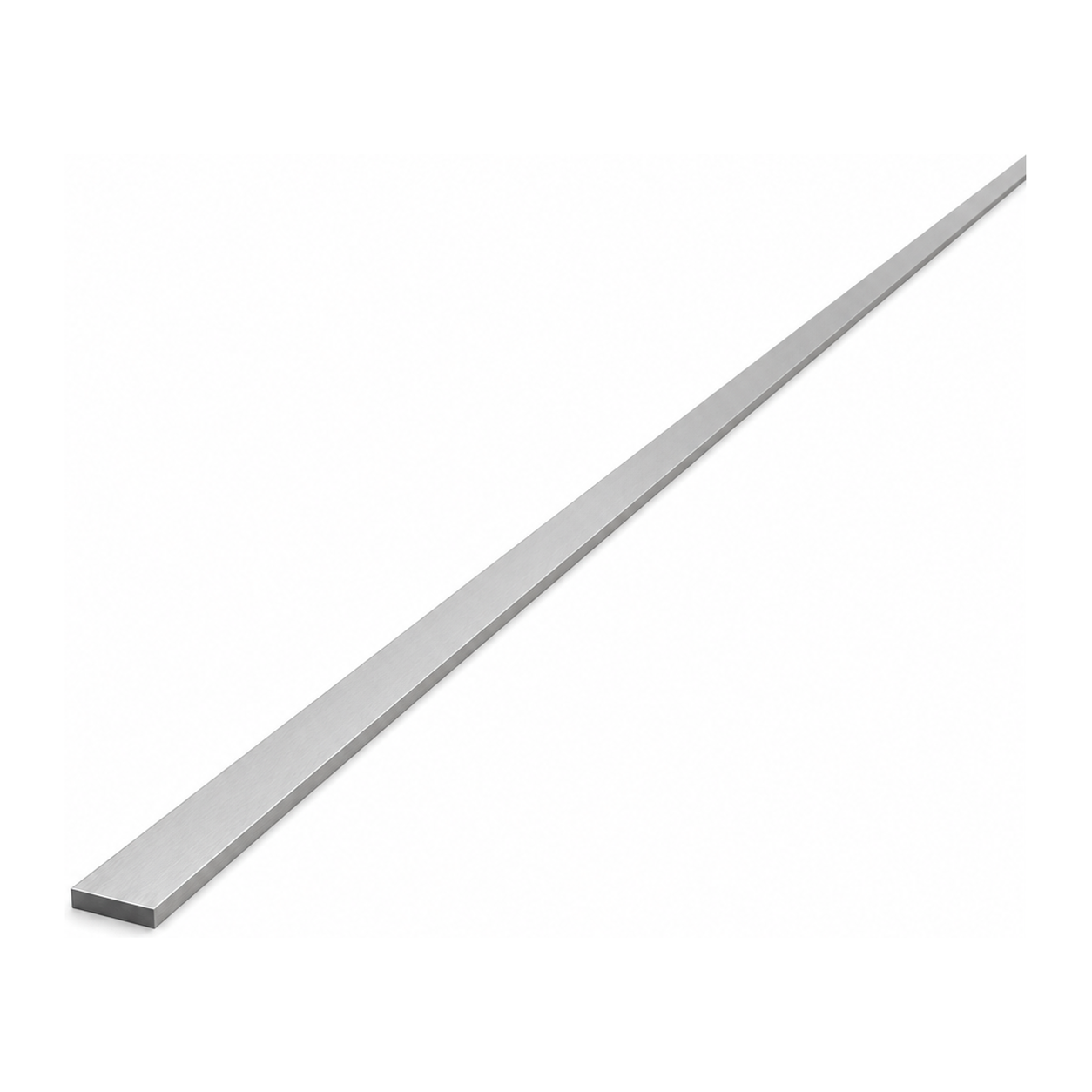

Aluminium Flat Bar EN AW-6060 T64 – 10×2 mm, length 2000 mm
Aluminium flat bar 10×2 mm with a length of 2000 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its very low self-weight of just 0.11 kg for the full 2 m length and high corrosion resistance, it is suitable wherever a lightweight, rigid and durable aluminium element is required — from support and frame structures to finishing, repairs and workshop tasks.
The EN AW-6060 alloy in the T64 temper combines good machinability with satisfactory strength. The mill finish surface (non-anodised) allows further processing — anodising, painting or powder coating — according to individual project requirements.
Technical Specification
- Profile type: flat bar (flat profile)

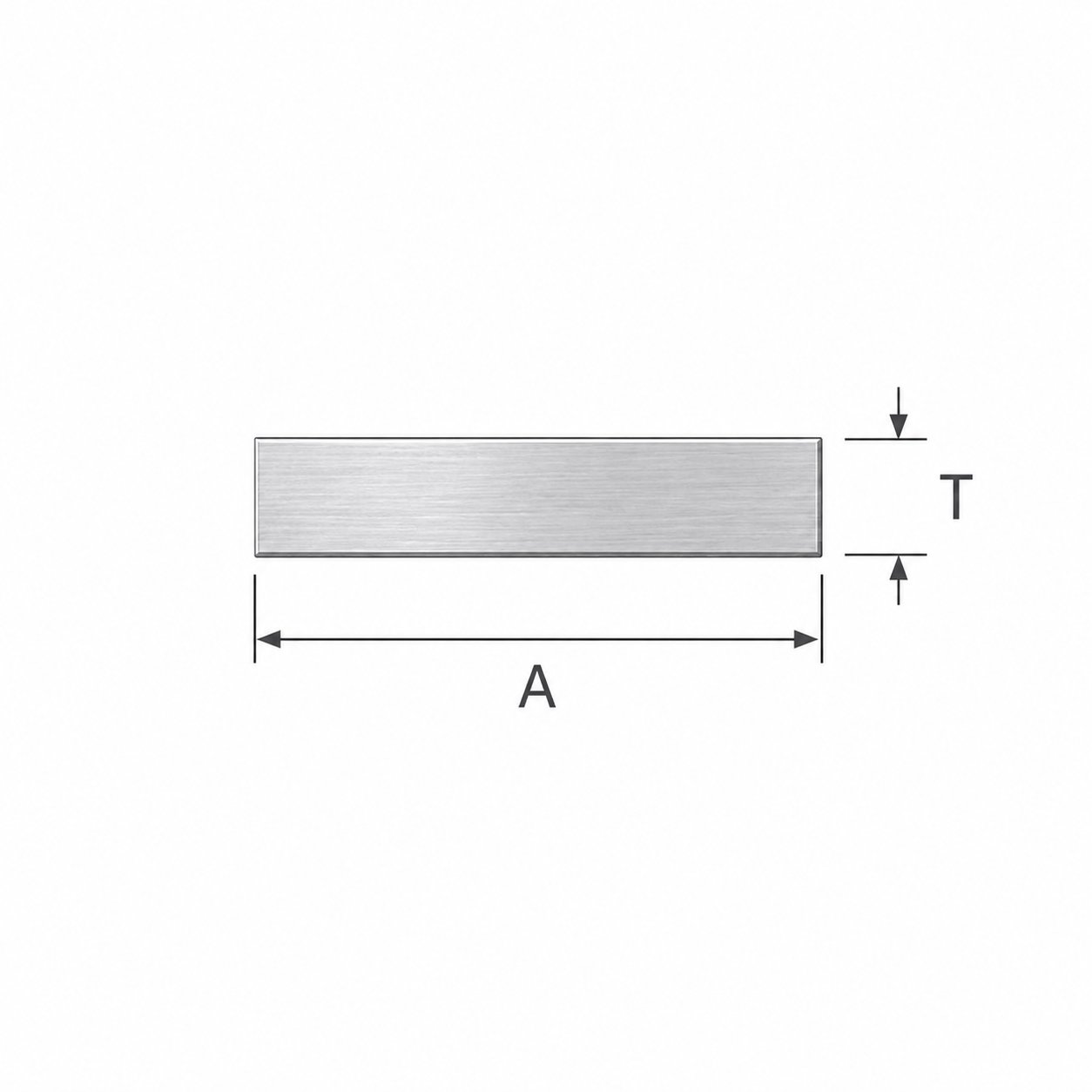

- Width (A): 10 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: mill finish (non-anodised)
- Weight (2 m): 0.11 kg (linear density 0.054 kg/m)
Applications
The 10×2 mm aluminium flat bar is used as a reinforcing, spacer or finishing element in aluminium structures, frames, enclosures, photovoltaic installations and general assembly work. Its small cross-section and low weight make it ideal for details, shims, strips and small connecting components.
