Aluminium Flat Bar EN AW-6060 T64 100×5 mm – Length 2000 mm
0
Description

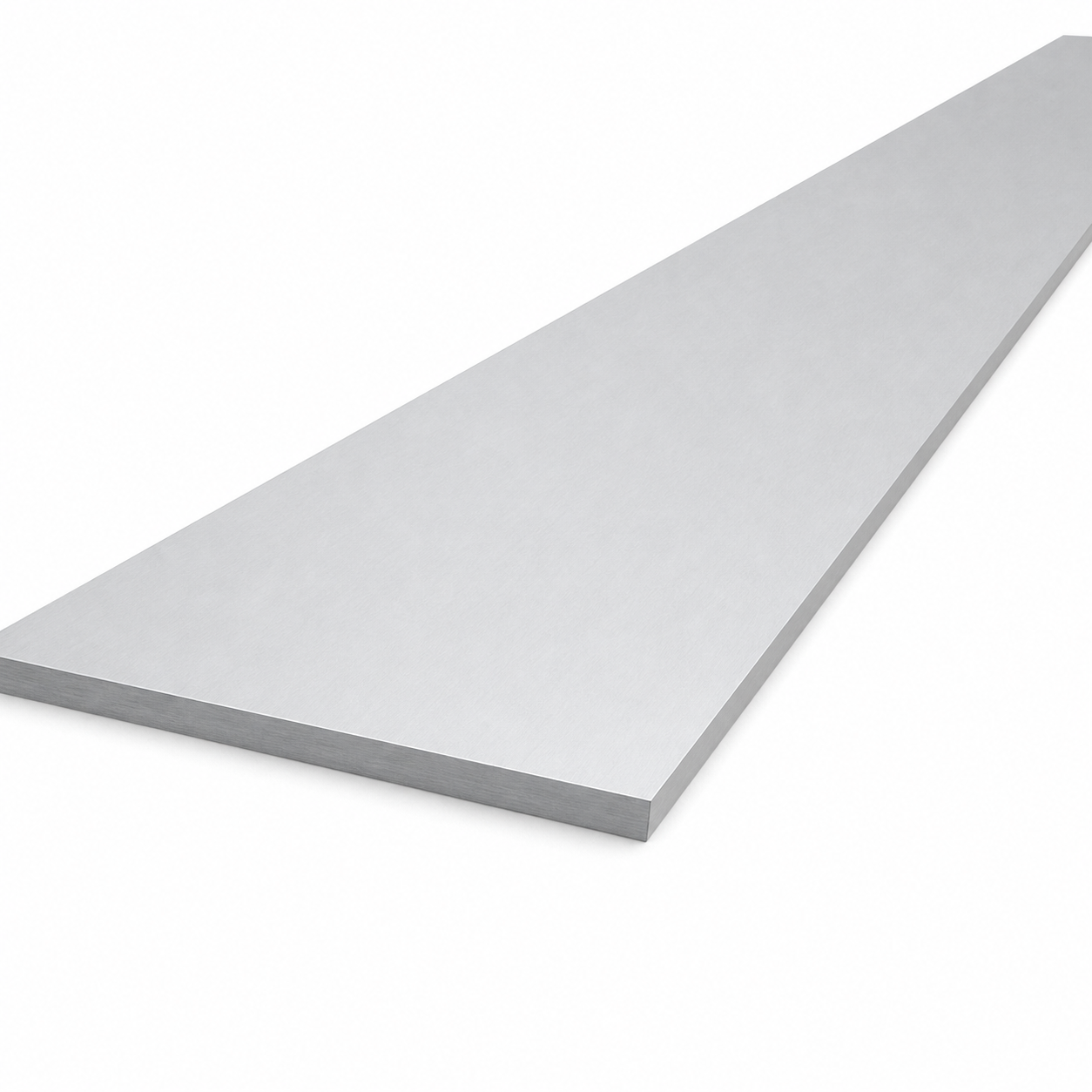

Aluminium Flat Bar EN AW-6060 T64 100×5 mm – Length 2000 mm
Aluminium flat bar 100×5 mm with a length of 2000 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Combining low weight with good rigidity and natural corrosion resistance, it is suitable wherever installation teams require a durable, easy-to-machine material — from support structures and mounting frames to façade finishing, as well as on-the-spot repairs and reinforcements.
The EN AW-6060 alloy in the T64 temper provides an optimal balance between mechanical strength and ductility — the profile can be cut, drilled, and bent using standard workshop tools. The raw (non-anodised) surface allows any finishing treatment: anodising, powder coating, or painting, depending on project requirements.
Technical Specification
- Section type: flat bar (flat profile)
- Width (A): 100 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 2.70 kg
- Unit weight: 1.35 kg/m
Applications
The aluminium flat bar 100×5 mm is widely used in professional installations — it serves as a structural support element for photovoltaic systems, stiffening of mounting frames, edge and joint finishing, as well as a material for constructing lightweight frameworks, guards, and spacer components. Its low weight (1.35 kg/m) facilitates transport and installation at height, resulting in shorter project completion times.
