Aluminium Flat Bar EN AW-6060 T64 – 100×15 mm, Length 2000 mm
0
Description

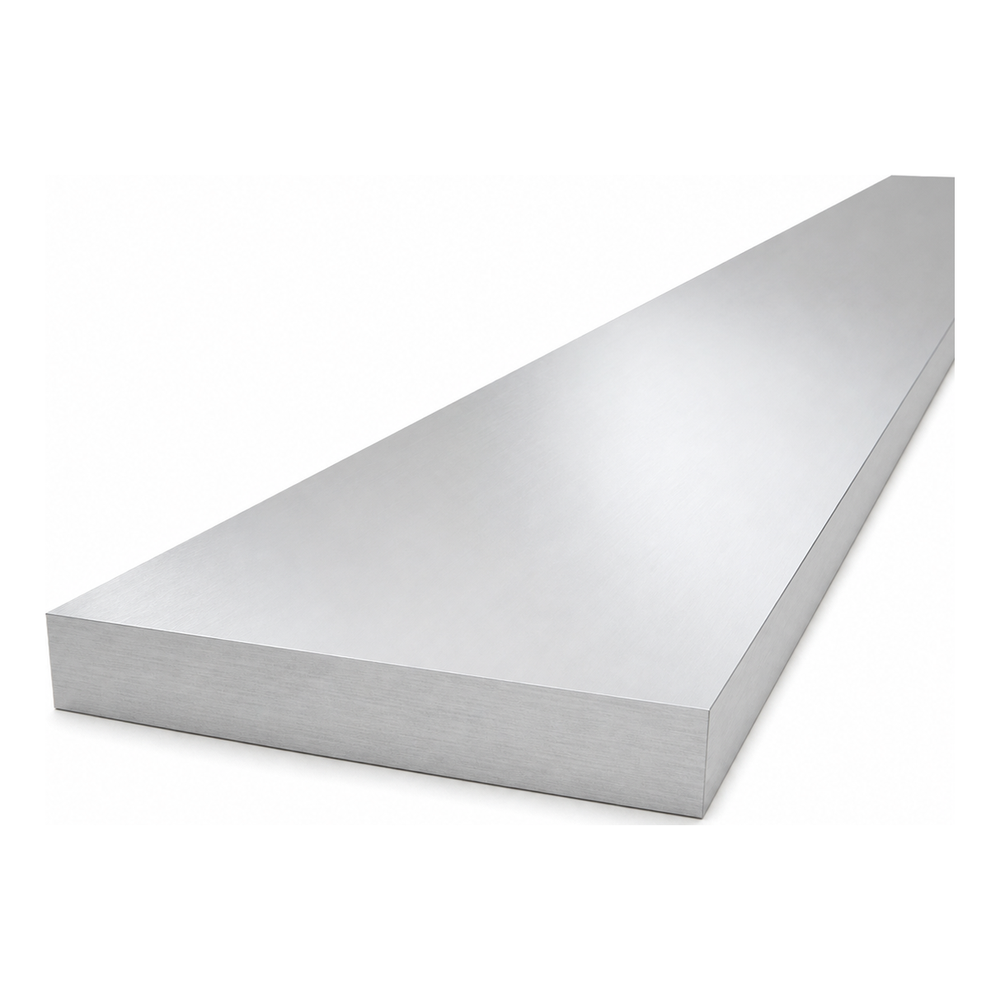

Aluminium Flat Bar EN AW-6060 T64 – 100×15 mm, Length 2000 mm
Aluminium flat bar 100×15 mm made from EN AW-6060 T64 alloy (AlMgSi0.5) is a versatile flat profile with a length of 2000 mm, designed for structural and finishing applications as well as use in frames and mounting substructures. Thanks to the combination of low weight, high rigidity and aluminium's natural corrosion resistance, the flat bar performs reliably wherever durability and ease of machining are essential — from support structures for photovoltaic installations to mounting frames and repair components.
The raw (non-anodised) surface allows for further processing — anodising, powder coating or leaving unfinished in unexposed applications. EN AW-6060 alloy in the T64 temper offers good machinability, weldability and formability, making it an ideal material for custom structural fabrication on site.
Dimensions and Technical Specifications
- Section: flat bar (flat profile)
- Width (A): 100 mm
- Thickness (T): 15 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight (2 m): ≈ 8.10 kg (4.05 kg/m)
Applications
- Support structures and mounting substructures
- Frames, door frames and finishing elements
- Reinforcements, connectors and repair components
- Substrates for photovoltaic and electrical installations
- Machine parts and workshop equipment components
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 15 |
