Aluminium Flat Bar EN AW-6060 T64, 20×8 mm, Length 2000 mm
0
Description

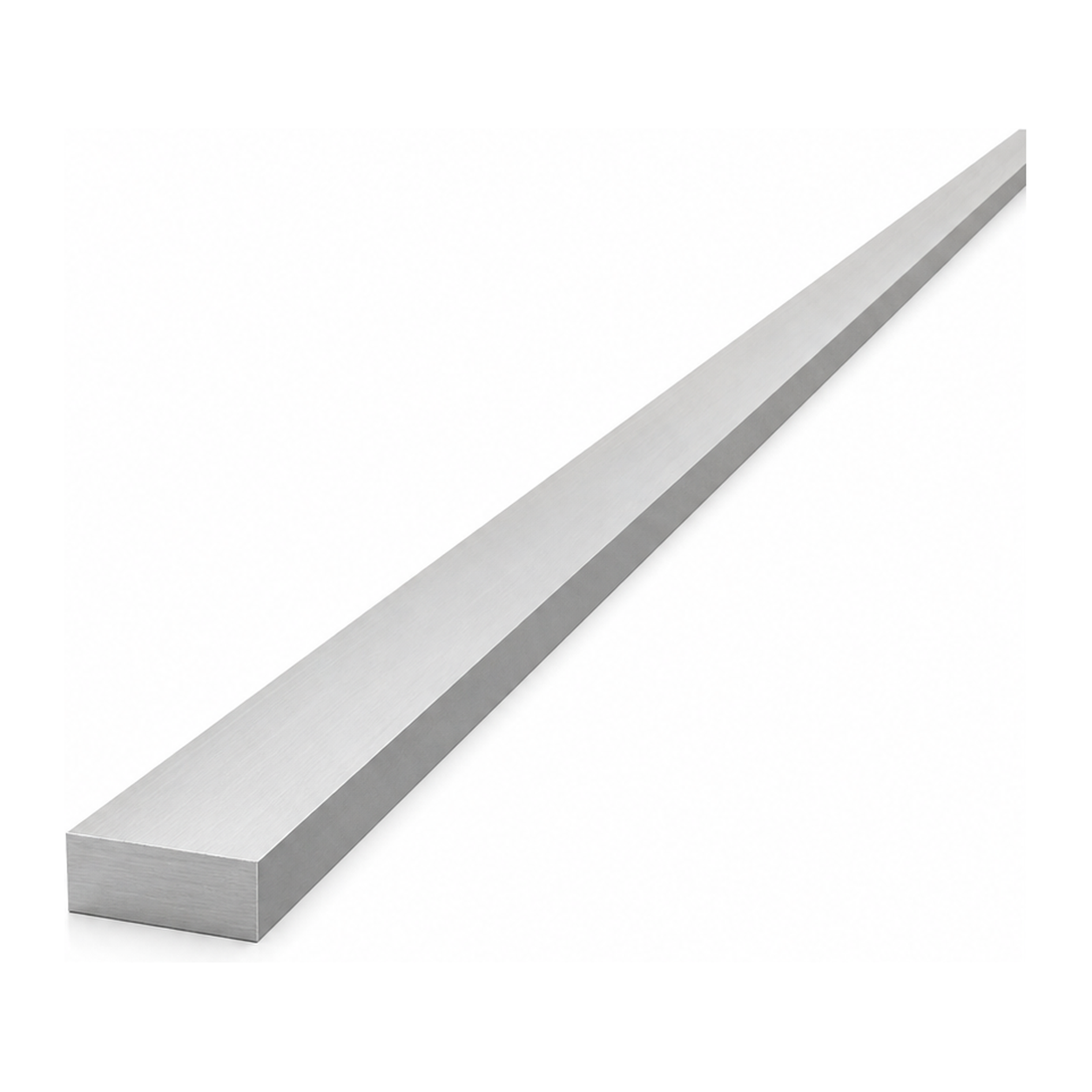

Aluminium Flat Bar EN AW-6060 T64, 20×8 mm, Length 2000 mm
Aluminium flat bar 20×8 mm with a length of 2000 mm is a versatile flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its low self-weight and high corrosion resistance, it performs excellently as a structural element in photovoltaic installations, mounting frames, finishings, and anywhere a rigid, lightweight, and durable aluminium profile is required.
The profile surface is raw (non-anodised), allowing for further processing — anodising, powder coating, or leaving without additional protection in environments with low corrosive aggressiveness. The T64 heat treatment condition ensures good mechanical strength whilst maintaining the ductility needed for cutting, drilling, and bending on site.
Technical Specifications

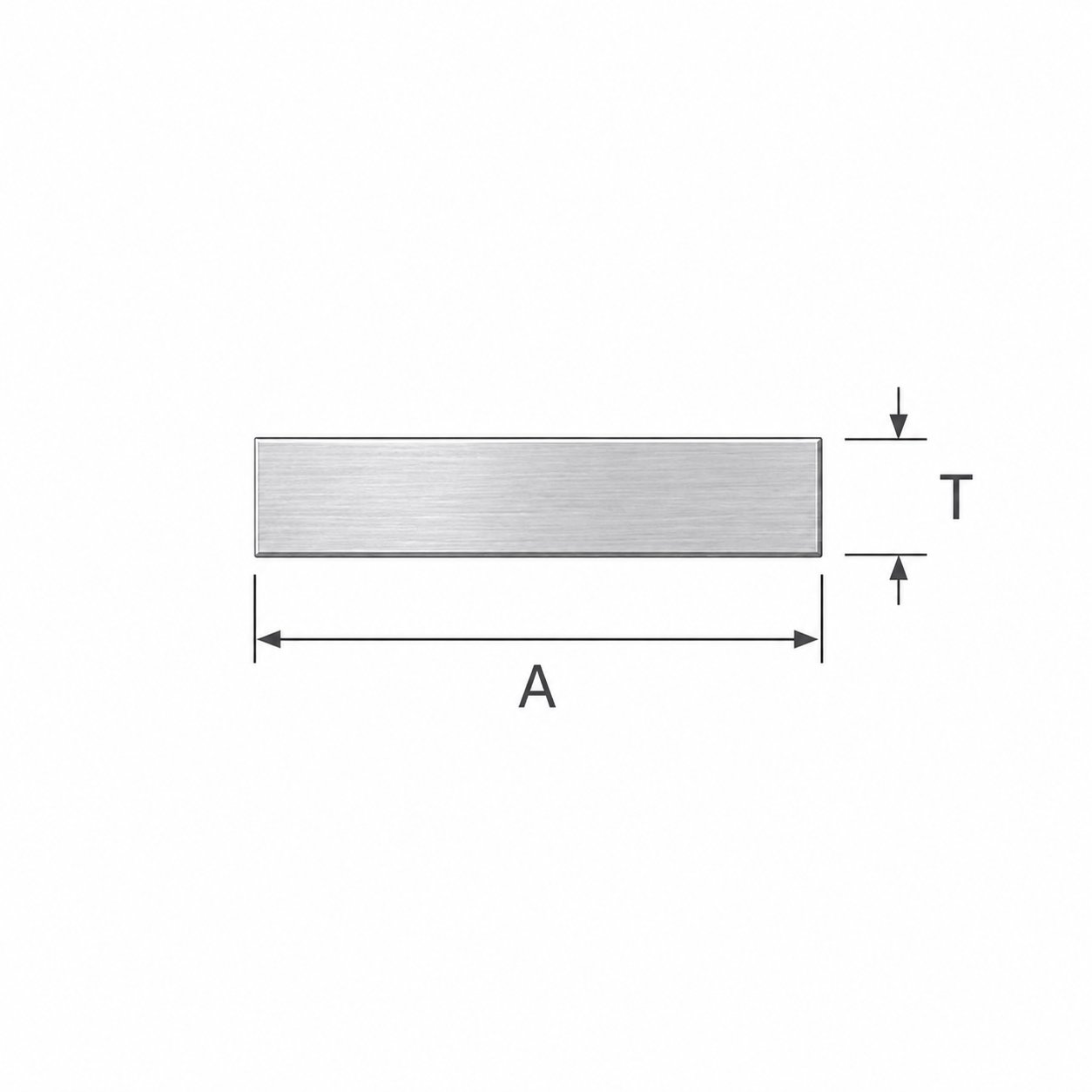

- Cross-section: flat bar (flat profile)
- Width (A): 20 mm
- Thickness (T): 8 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per piece (2 m): 0.86 kg (0.43 kg/m)
Applications
The aluminium flat bar 20×8 mm is used as a reinforcing and connecting element in support structures for PV installations, as a guide rail, spacer strip, frame element, or finishing trim. Its low weight (0.43 kg/m) facilitates transport and installation, whilst the rectangular cross-section provides a good bearing surface and easy fixing using bolts, rivets, or welding.
Technical data
| Material | Aluminium |
| Length [mm] | 2000 |
| Thickness [mm] | 8 |
