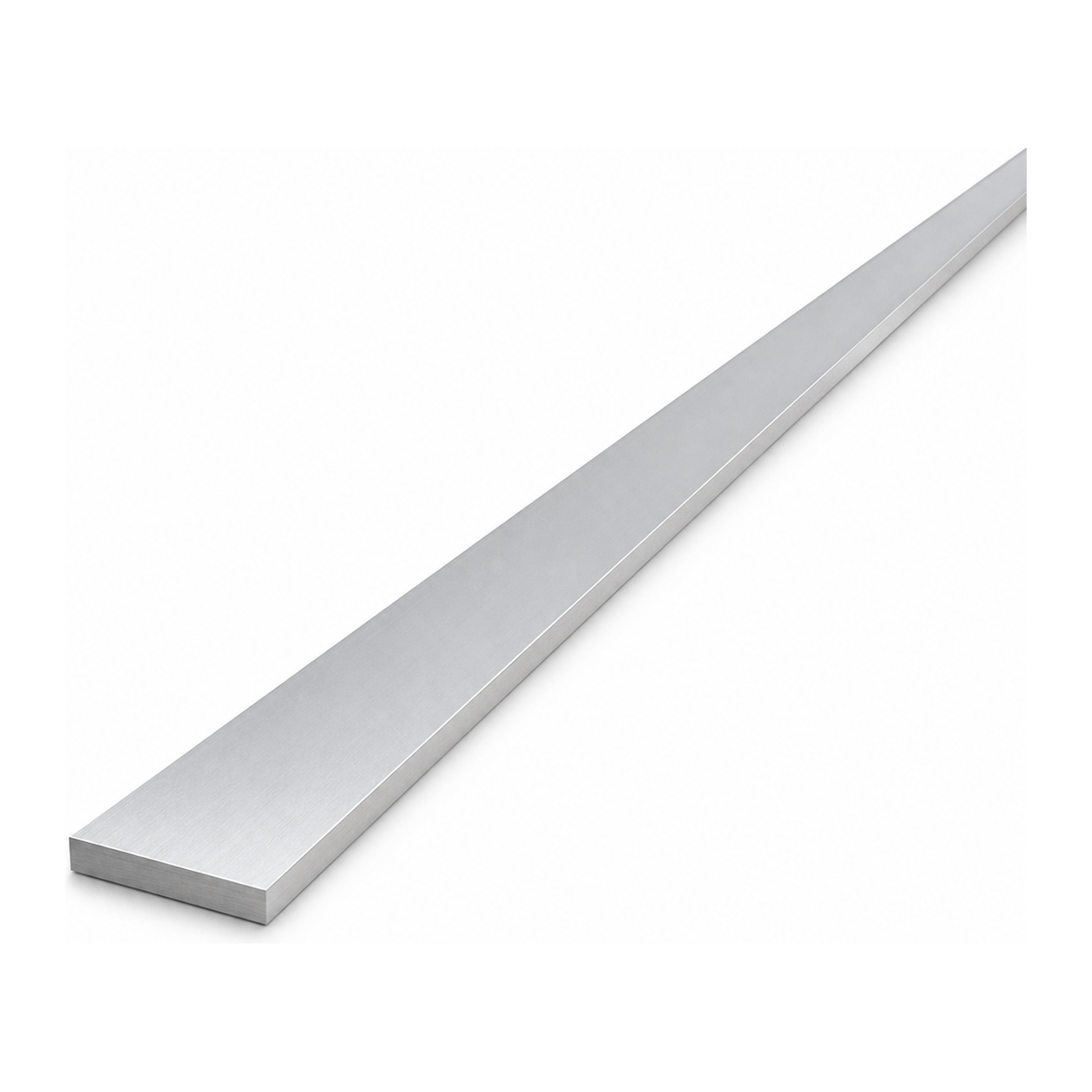

Aluminium Flat Bar EN AW-6060 25×4 mm, Length 2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 25×4 mm, length 2000 mm. Weight 0.54 kg. Raw surface (non-anodised). For supporting structures, mounting frames and photovoltaic installations.
Product code: 001-745
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 4
Description
Aluminium Flat Bar EN AW-6060 25×4 mm, Length 2000 mm
Aluminium flat bar 25×4 mm made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) is a versatile flat profile designed for supporting structures, finishing, mounting frames and repairs. Thanks to its low self-weight of just 0.54 kg per 2-metre length and high corrosion resistance, the flat bar is ideally suited to photovoltaic installations and general construction — wherever durability, lightness and ease of processing are required.
The raw (non-anodised) surface allows further processing — anodising, powder coating or leaving in the as-supplied condition. EN AW-6060 alloy in the T6/T66 temper combines good mechanical strength with excellent weldability and suitability for bending, cutting and drilling, resulting in faster installation work on site.
Technical Specification
- Profile type: flat bar (flat profile)
- Width (A): 25 mm
- Thickness (T): 4 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 0.54 kg
- Linear weight: 0.27 kg/m
Applications
The 25×4 mm aluminium flat bar is widely used as a structural and finishing element. It is ideally suited for the construction of mounting frames, substructures for photovoltaic panels, reinforcements, spacer strips, profile stiffeners and minor repairs in workshops and on construction sites. Thanks to its compact dimensions and low weight, it is easy to transport and store.
