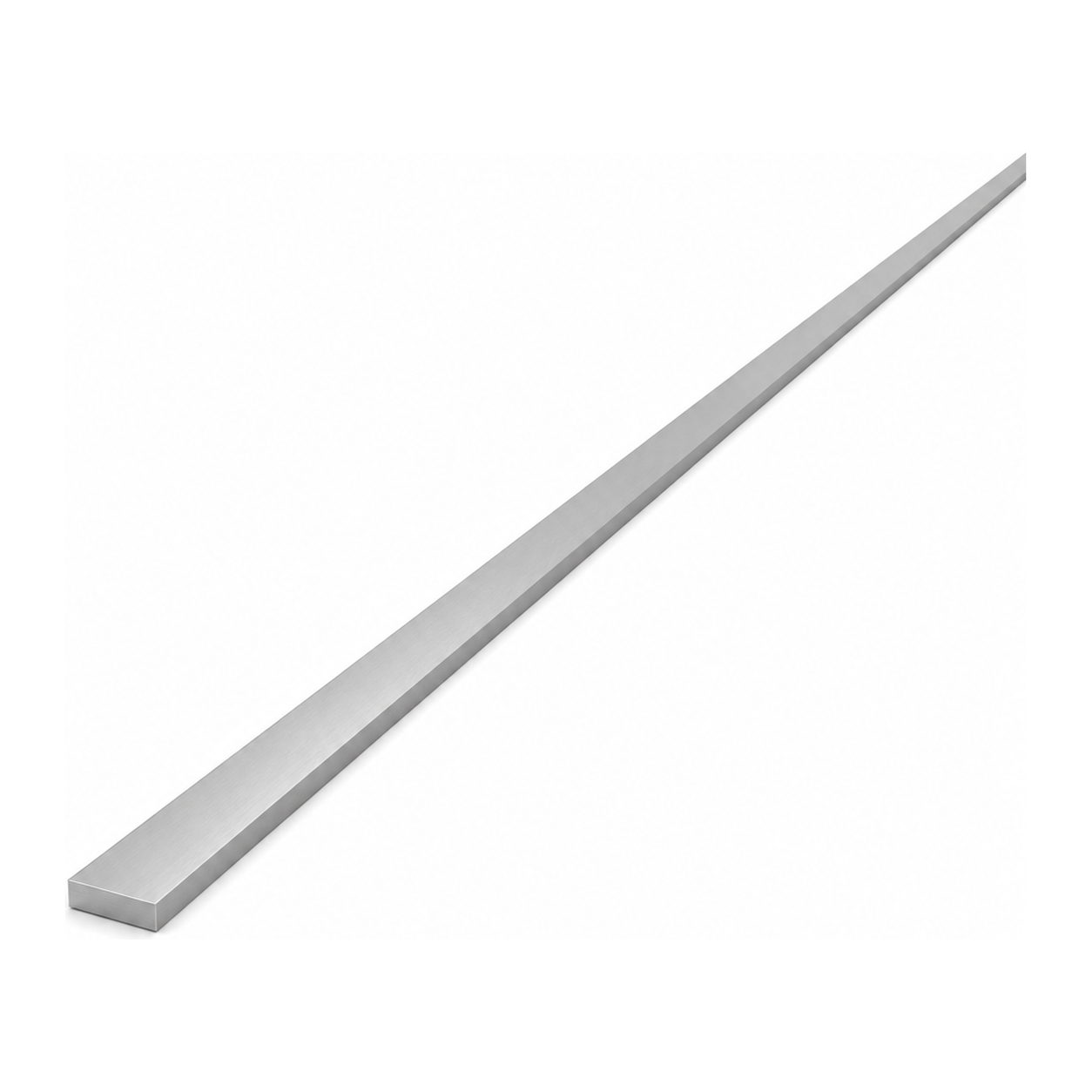

Aluminium Flat Bar EN AW-6060 10×3 mm, Length 2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 10×3 mm, length 2000 mm. Raw (non-anodised) surface. Weight: 0.16 kg (0.08 kg/m). Alloy AlMgSi0.5 / PA38.
Product code: 001-734
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 3
Description
Aluminium Flat Bar EN AW-6060 10×3 mm, Length 2000 mm
Aluminium flat bar 10×3 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. Thanks to its low weight of just 0.16 kg over the full length and high corrosion resistance, it is suitable both as a structural and finishing element in photovoltaic installations, mounting frames, and repair work.
The raw (non-anodised) aluminium surface allows for any desired finishing treatment — anodising, powder coating, or leaving in its natural state. The EN AW-6060 alloy in the T6/T66 temper provides good rigidity while remaining easy to cut and drill with standard tools, resulting in fast assembly on site.
Technical Specification
- Cross-section: flat bar (flat profile)
- Width (A): 10 mm
- Thickness (T): 3 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 0.16 kg
- Linear weight: 0.08 kg/m
Applications
The aluminium flat bar 10×3 mm is widely used in the installation industry — as a reinforcing element for support structures, a profile connector, spacer, or edge finishing. Ideal for building lightweight frames, brackets, and covers, as well as a material for minor repairs and modifications to existing structures. The small cross-section and low weight make transport and storage easy.
