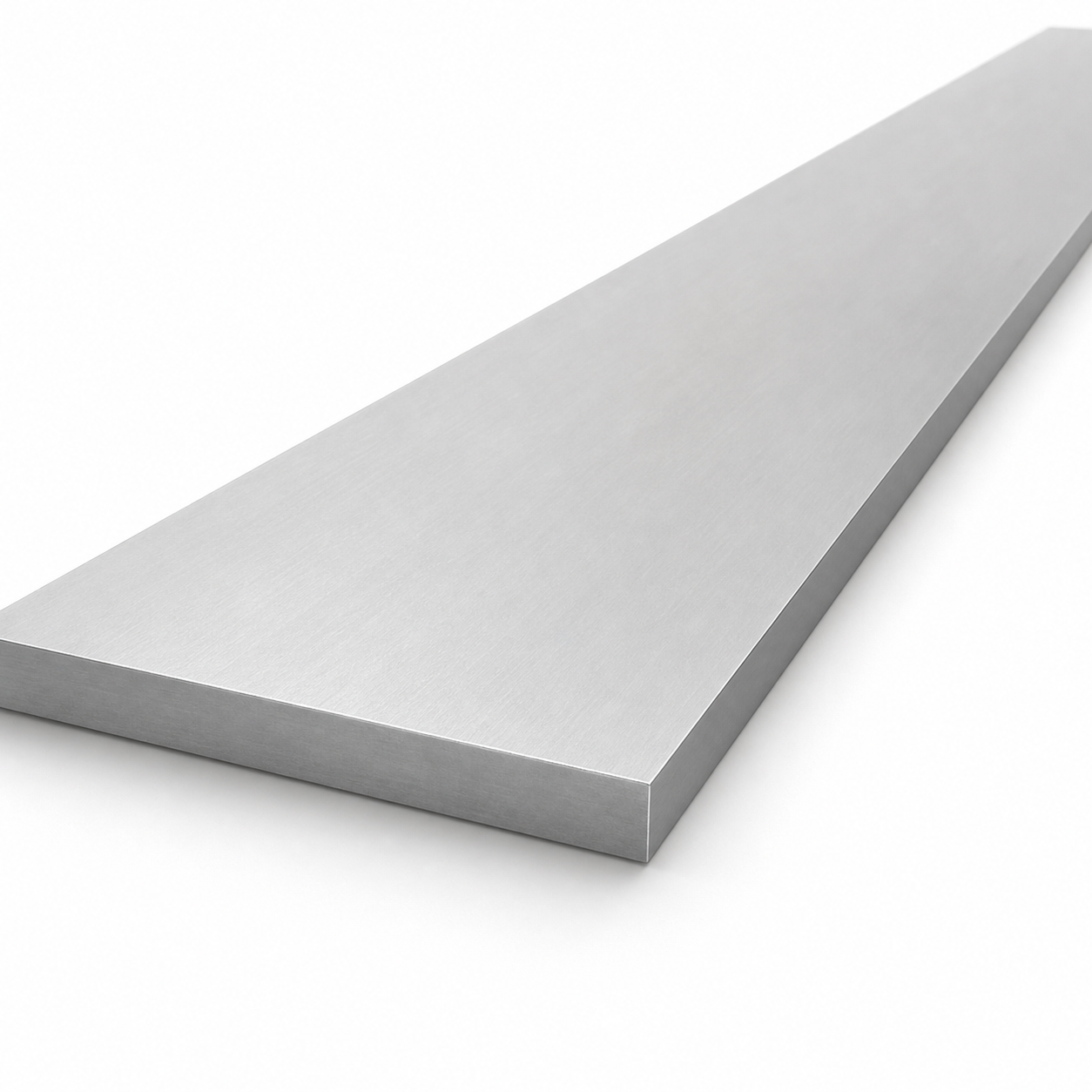

Aluminium Flat Bar EN AW-6060 100×10 mm, Length 2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 100×10 mm, length 2000 mm. Material: AlMgSi0.5 / PA38. Mill finish (non-anodised). Weight: 5.40 kg (2.70 kg/m).
Product code: 001-772
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 10
Description
Aluminium Flat Bar EN AW-6060 100×10 mm, Length 2000 mm
Aluminium flat bar 100×10 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. Combining low weight with good rigidity and aluminium's natural corrosion resistance, it is suitable for support structures, mounting frames, finishing elements, and wherever a lightweight, durable, and easy-to-machine material is required.
The mill finish (non-anodised) surface allows for further processing — anodising, powder coating, or leaving uncoated in environments with low corrosive aggressiveness. The EN AW-6060 alloy in the T6/T66 temper guarantees good mechanical strength whilst retaining sufficient ductility for bending and milling.
Technical Specification
- Section type: flat bar (flat profile)
- Width (A): 100 mm
- Thickness (T): 10 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface finish: mill finish (non-anodised)
- Item weight: 5.40 kg (2.70 kg/m)
Applications
- Support structures and mounting frames
- Finishing and protective elements
- Reinforcements and connectors in industrial installations
- Repairs and modifications to existing aluminium structures
- Bases for rails and mounting profiles
