Aluminium Flat Bar 80×60 mm EN AW-6060 T64 – Length 2000 mm
0
Description
Aluminium Flat Bar 80×60 mm EN AW-6060 T64 – Length 2000 mm

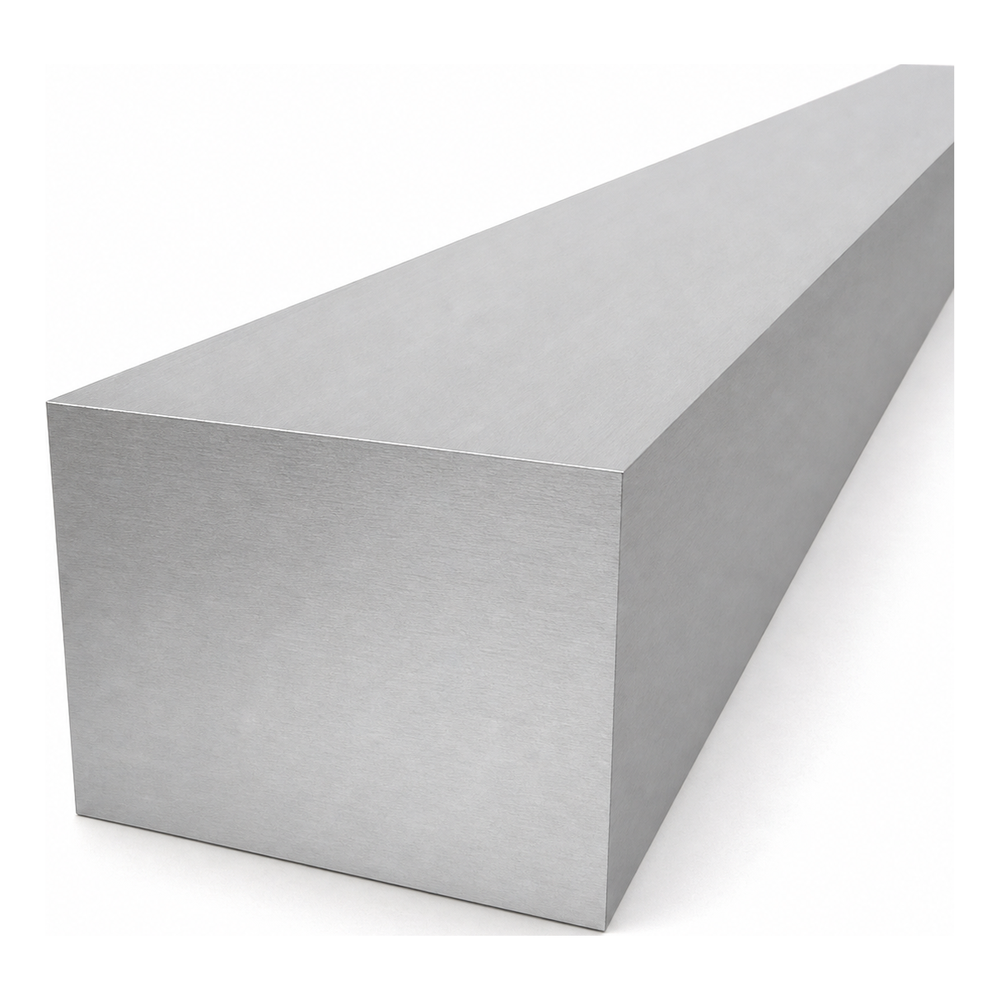

Aluminium flat bar 80×60 mm is a solid flat profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), designed for constructing strong load-bearing structures, mounting frames, finishing components and repairs. Thanks to the combination of a large cross-section and the properties of aluminium, you get a rigid yet relatively lightweight element that is corrosion-resistant — with no need for additional surface protection in indoor conditions.
The profile is supplied in a 2000 mm length with a raw (non-anodised) surface, ready for further processing — cutting, drilling, milling, welding or anodising as required by your project. The T64 temper provides enhanced strength parameters compared to the T6 temper, resulting in better load-bearing capacity at the same cross-section.
Dimensions and Technical Specification
- Cross-section type: flat bar (flat profile)
- Width (A): 80 mm
- Thickness (T): 60 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Total weight (2 m): 25.92 kg
- Unit weight: 12.96 kg/m
Applications
The aluminium flat bar 80×60 mm is suitable wherever high rigidity and load-bearing capacity are required while keeping the self-weight low. Typical applications include:
- Load-bearing structures and mounting frames for industrial installations
- Structural components for machine beds and foundations
- Frames and enclosures for equipment, control cabinets and guards
- Finishing elements in construction and architecture
- Repairs and modifications to existing aluminium structures
The EN AW-6060 alloy in T64 temper belongs to the group of aluminium alloys with excellent machinability and weldability. The profile can be easily cut, drilled and joined using standard methods — both with bolts and TIG/MIG welding. The raw surface allows optional anodising or powder coating, enabling the appearance and corrosion protection to be tailored to the requirements of a specific project.
Technical data
| Length [mm] | 2000 |
| Thickness [mm] | 60 |
| Material | Aluminium |
