Aluminium Flat Bar 20×5 mm EN AW-6060 – Flat Profile L=2000 mm

Go to Product feedback

Aluminium flat bar EN AW-6060 T6/T66 (AlMgSi0.5), cross-section 20×5 mm, length 2000 mm. Raw, non-anodised surface. Section weight: 0.54 kg, linear density: 0.27 kg/m.

Go to full description
with VAT without VAT
Price €6.62
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] Cat 150 #150

  • Material Aluminium
  • Length [mm] 2000
  • Thickness [mm] 5

Description

Aluminium Flat Bar 20×5 mm EN AW-6060 – Flat Profile L=2000 mm

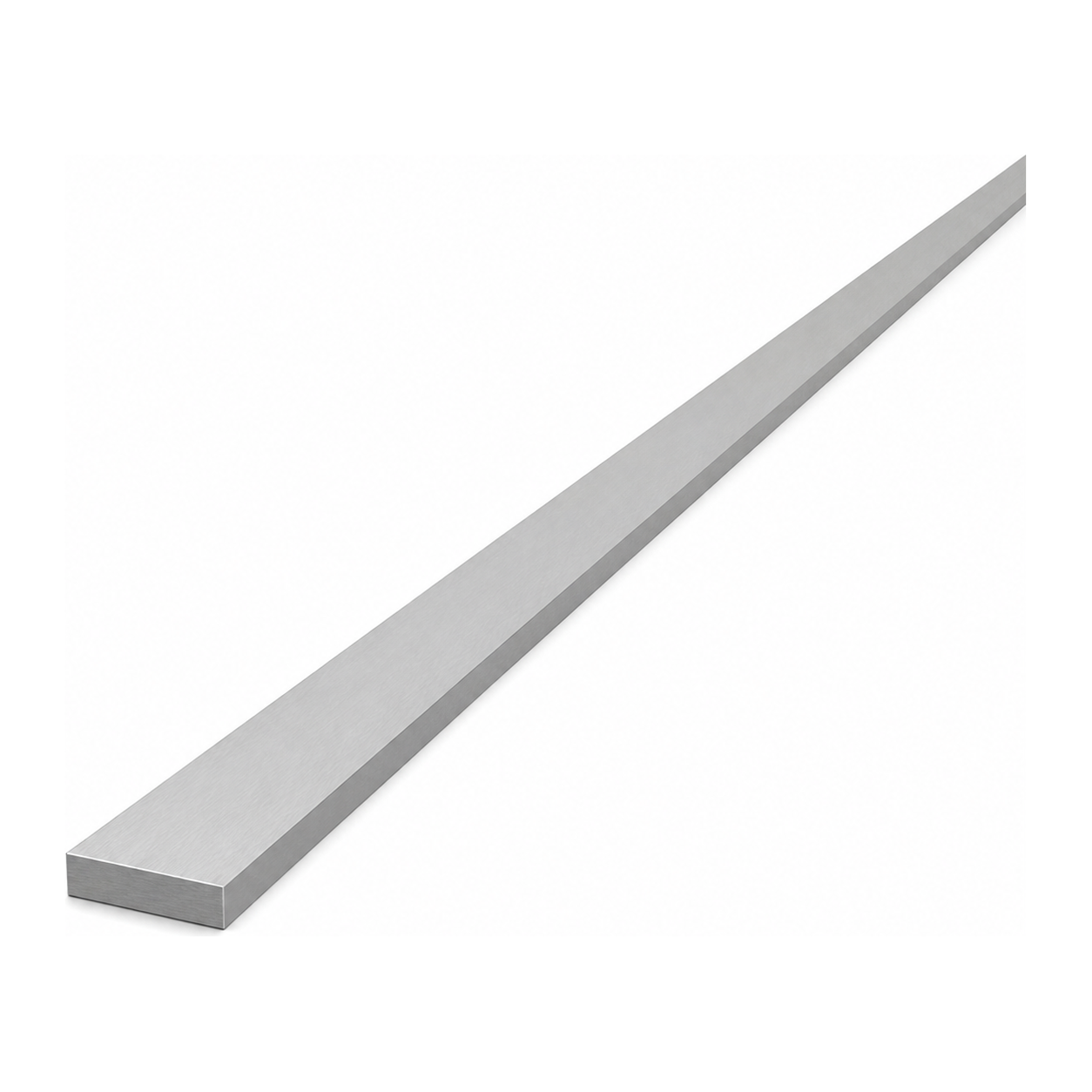

Aluminium flat bar 20×5 mm – view of the flat profile
Aluminium flat bar 20×5 mm – view of the flat profile

Aluminium flat bar 20×5 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), supplied in lengths of 2000 mm. Thanks to the combination of low weight, good rigidity, and aluminium's natural corrosion resistance, this flat bar is suitable wherever a lightweight, durable and easy-to-machine structural element is required — from frame reinforcements and support structures to finishing trims and sheet metal work, through to repairs and prototype projects.

Benefits for the installer

  • Low weight — only 0.54 kg per 2 m section (linear density 0.27 kg/m), making transport and installation at height straightforward
  • Corrosion resistance — aluminium requires no additional corrosion protection in most outdoor applications
  • Ease of machining — the 6060 alloy in T6/T66 temper cuts, drills and bends excellently without risk of cracking
  • Raw surface (non-anodised) — ready for further processing: anodising, powder coating, or leaving in its natural state

Technical specification

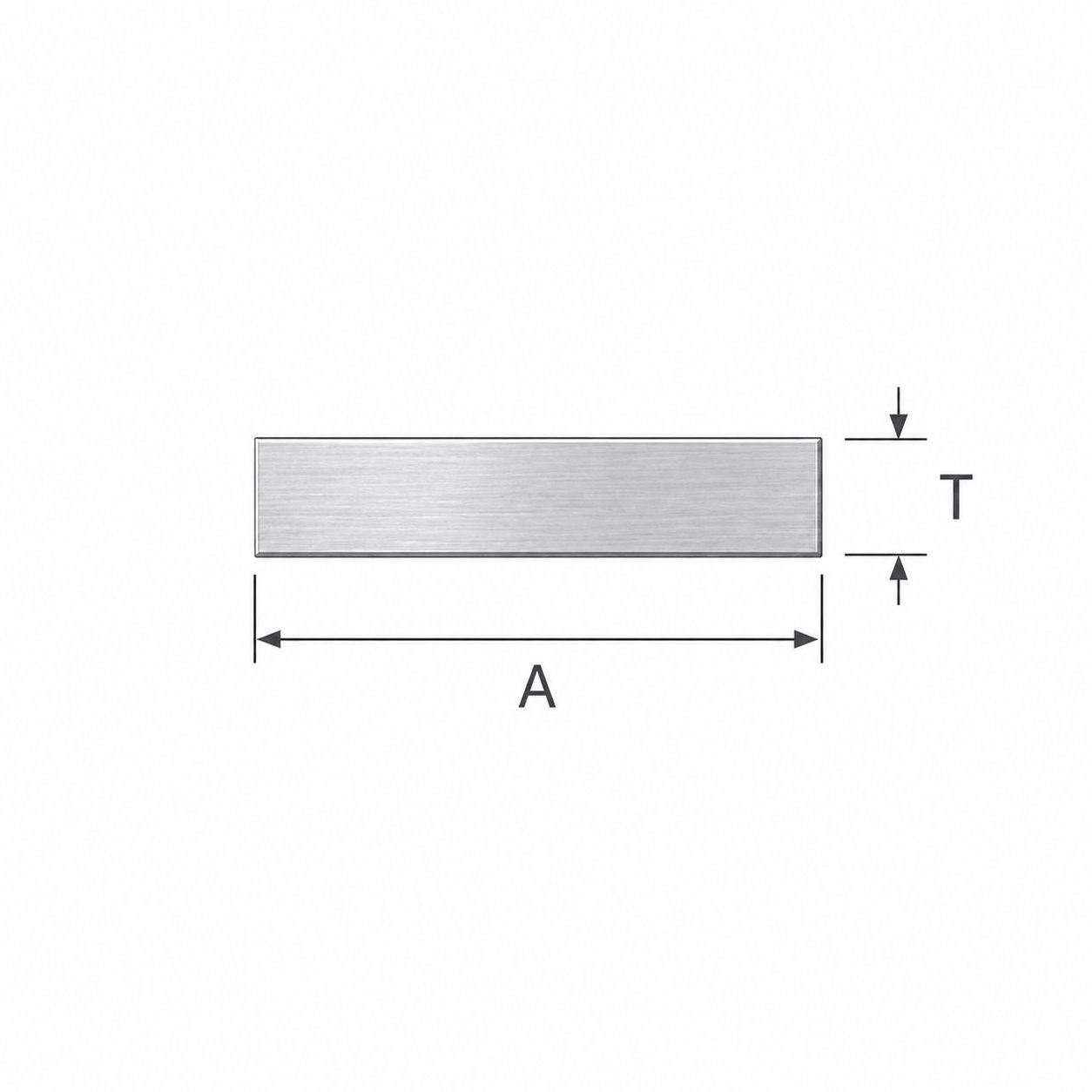

Dimensional drawing of aluminium flat bar – width A and thickness T
Dimensional drawing of aluminium flat bar – width A and thickness T
  • Cross-section: flat bar (flat profile)
  • Width (A): 20 mm
  • Thickness (T): 5 mm
  • Length: 2000 mm
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
  • Surface: raw (non-anodised)
  • Section weight (2 m): 0.54 kg
  • Linear weight: 0.27 kg/m

Typical applications

The 20×5 mm aluminium flat bar is widely used in installation and construction work. It can serve as a reinforcing element for frames and frameworks, a mounting spacer, a finishing strip, as well as material for building lightweight support structures. It is also suitable for repair work — as a connector, spacer shim, or reinforcement for existing profiles.
