Aluminium Flat Bar 20×2 mm EN AW-6060 T64 – Length 2000 mm
0
Description

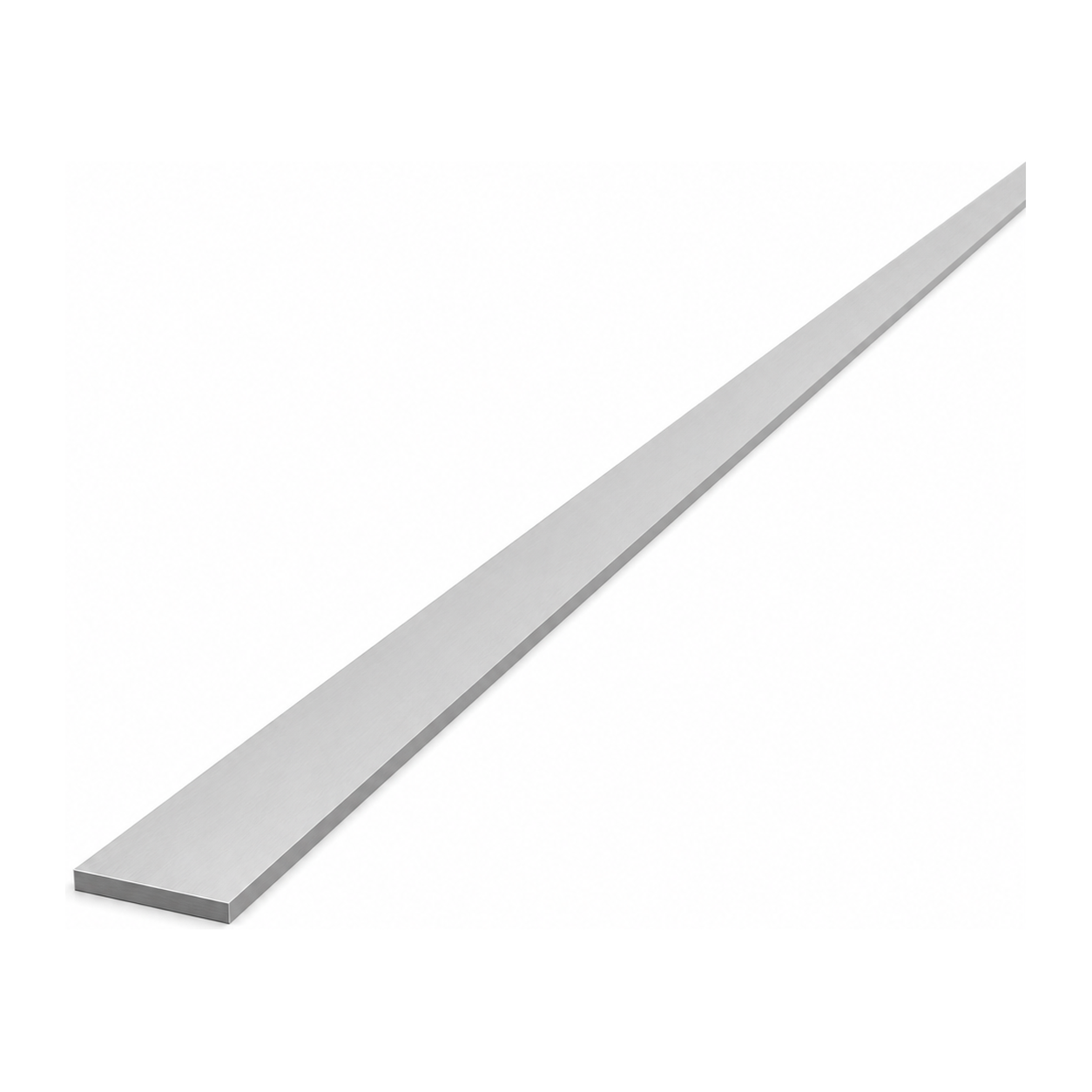

Aluminium Flat Bar 20×2 mm EN AW-6060 T64 – Length 2000 mm
Aluminium flat bar 20×2 mm is a versatile flat profile made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its low weight of just 0.22 kg per 2-metre length and excellent corrosion resistance, it is suitable wherever a lightweight yet rigid structural element is required — from frames and reinforcements to trims and guards, through to repairs and modifications of existing installations.
Technical Specification

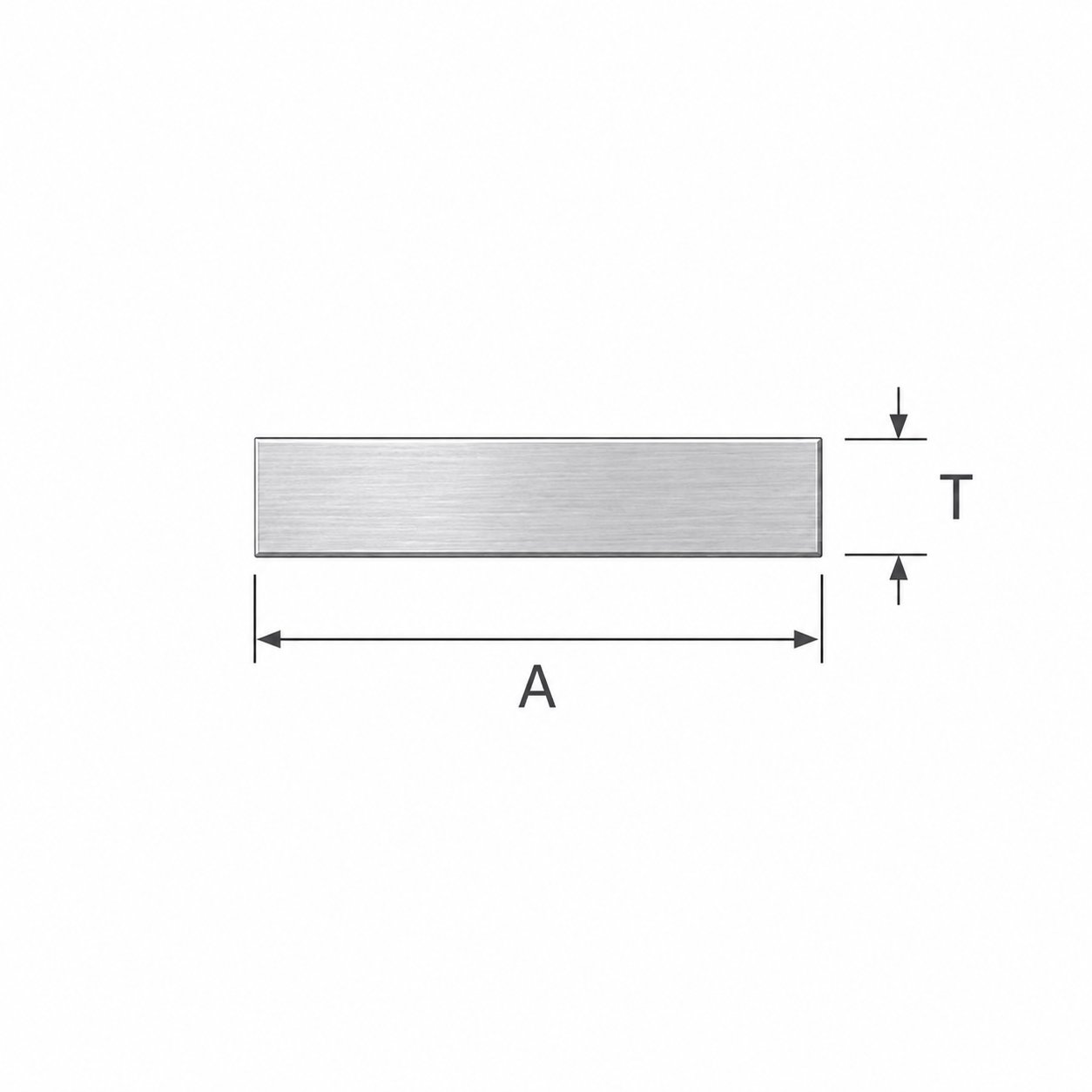

- Cross-section: flat bar (flat profile)
- Width (A): 20 mm
- Thickness (T): 2 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface finish: mill finish (non-anodised)
- Weight per 2 m section: 0.22 kg (0.11 kg/m)
Applications
The EN AW-6060 alloy in the T64 temper combines good mechanical strength with ease of fabrication — the profile can be cut, drilled and bent without specialist equipment. The flat bar is well suited as a structural element in lightweight frames and structures, as reinforcement for aluminium profile joints, as a finishing or spacer strip, and as a material for on-site repairs and adaptations. The mill finish surface allows further processing — anodising, powder coating, or leaving in its natural state for interior applications.
