Adjustable bent hinge M16 for gates and wickets – 180° / 125 mm, galvanised
Adjustable bent hinge M16 made from S235JR steel, galvanically galvanised. Arm length 125 mm, axis offset 40 mm, 180° opening. Mounting plate 82x50x78 mm with 4 fixing holes. For gates and wickets. Weight 0.57 kg.
001-521 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable Built-in Hinge M16 Galvanised Steel
Adjustable built-in hinge M16 made from galvanised steel. M16 thread with adjustment nut. Spindle length 90 mm, anchor 112 mm, sleeve 40 mm. Ear width 36 mm. Weight 0.42 kg. For gates and wickets in masonry structures.
001-353 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable Gate Hinge Bolt-on M18 Steel – Long L180 mm
Adjustable gate hinge M18 steel, spindle length 180 mm. Bracket 40x30 mm, plate thickness 6 mm, pin diameter Ø15 mm. M18 thread with adjustment nuts. Weight 0.64 kg. For gates and light swing gates.
001-348 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge for welding M20 galvanised steel
Adjustable gate hinge for welding M20 galvanised steel. M20 thread, length 87 mm, ear width 43 mm, sleeve 40 mm. Steel with hot-dip galvanising. Weight 0.415 kg. For leaf gates, load capacity of pair 105 kg on 2 m leaf.
001-342 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M12 bent L-115 steel
Adjustable steel gate hinge M12 with threaded spindle. Working length 115 mm, total length 137.5 mm. Bent base 75x25 mm with mounting holes 12x8.5 mm. Weight 0.26 kg. For swing gates and wicket gates, external use.
001-425 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M12 galvanised – plate 130×30 mm
Adjustable gate hinge M12 made from galvanised steel. Plate 130×30 mm, hole spacing 110 mm, M12 thread, screw length 110 mm. Weight 0.52 kg. For swing gates and wicket gates, adjustment after installation. Permissible load of pair 40 kg on 2 m leaf.
001-417 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M16 with ball bearing – galvanised
Adjustable gate hinge M16 with ball bearing, galvanised steel. Working length 111.5 mm, bracket width U 34 mm, flat bar thickness 6 mm. M16 thread, bearing housing diameter 26 mm. For swing gates and garden gates.
001-427 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M16 with plate 115×40 mm – galvanised
Adjustable gate hinge M16 with plate, galvanised. Galvanised steel, plate 115×40×5 mm, M16 thread, length 130 mm. Load capacity of pair 80 kg with leaf length 1.4 m. For gates and wickets.
001-405 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M16 with plate 115×50 mm – galvanised
Adjustable gate hinge M16 with galvanised plate, steel. Plate 115×50×5 mm, M16 thread, threaded rod 130 mm. Hole spacing 75.5×30 mm, pin ø12 mm. Permissible load per pair 65 kg on 2 m gate leaf. Weight 0.58 kg.
001-415 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M16 with rectangular plate 100×55×4 mm
Adjustable gate hinge M16 with steel plate 100×55×4 mm. Depth adjustment 52-72 mm, M16 thread, fork bracket with Ø12 mm pin. Mounting holes spacing 72 mm. Galvanised plate, weight 0.4 kg. For gates and swing gates.
001-392 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable Gate Hinge M18 with Shield 140×50 mm – Galvanised
Adjustable M18 hinge with 140×50 mm shield, galvanised steel. M18 threaded pin, 200 mm length. Shield thickness 6 mm, 2 holes ø13 mm, spacing 90 mm. Pin ø15 mm. Load capacity per pair 80 kg on 2 m leaf. Weight 0.88 kg.
001-409 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M20 long galvanised – 180 mm
Adjustable gate hinge M20 made from galvanised steel. Total length 180 mm, spindle length 130 mm, ear width 36 mm. M20 thread, weight 0.6 kg. Black ear, zinc anti-corrosion protection. For external gates and garden gates.
001-411 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable gate hinge M20 steel L180 mm – for wicket gates and swing gates
Adjustable gate hinge M20 steel, pin length 180 mm. Bracket 40x30 mm, thickness 6 mm, pin diameter Ø15 mm. Weight 0.74 kg. Threaded pin with adjustment nuts. For wicket gates and swing gates, external use.
001-352 Availability: In stock (large quantity)
Delivered within: 10 Business days

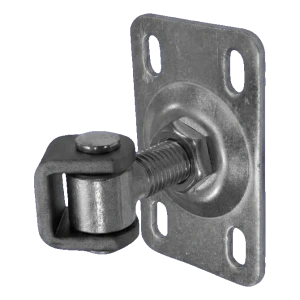

Adjustable gate hinge M20 steel with 120×75 mm base
Adjustable gate hinge M20 steel with 120×75 mm base. M20 thread, Ø15 mm pin, height adjustment 60-85 mm. Base thickness 4 mm, bracket 6 mm. Hole spacing 83×48 mm. Weight 0.68 kg. For swing gates and garden gates.
001-395 Availability: In stock (large quantity)
Delivered within: 10 Business days

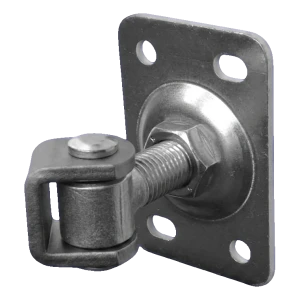

Adjustable gate hinge M20 with 110×75 mm base – bean type
Adjustable steel gate hinge M20 with 110×75 mm base and bean-type eye. M20 thread, working height 60-85 mm, base thickness 4 mm. Four oval mounting holes 10.5×16 mm. Weight 0.64 kg. For swing gates and garden gates.
001-399 Availability: In stock (large quantity)
Delivered within: 10 Business days
Adjustable Gate Hinge M20 with 140×50 mm Plate – Galvanised
Adjustable gate hinge M20 made from galvanised steel. Plate 140×50×6 mm with ø13 mm holes, 90 mm spacing. Bolt 130 mm, pin ø15 mm. Load capacity per pair up to 105 kg on 2 m leaf. Weight 0.96 kg.
001-406 Availability: In stock (large quantity)
Delivered within: 10 Business days

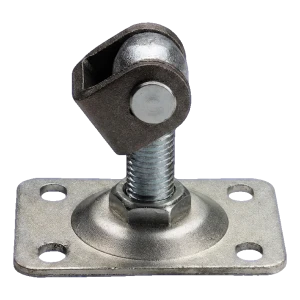

Adjustable gate hinge M20 with rectangular plate 110×75 mm galvanised steel
Adjustable gate hinge M20 with rectangular plate galvanised steel. Plate 110×75 mm with four mounting holes. M20 bolt, total length 92 mm, adjustment section 48 mm. Permissible load for pair of hinges 105 kg on 2 m leaf.
001-394 Availability: In stock (large quantity)
Delivered within: 10 Business days

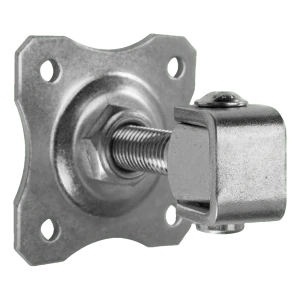

Adjustable gate hinge with decorative plate M16 80×80 mm galvanised steel
Adjustable galvanised steel gate hinge with decorative plate M16. Plate dimensions 80×80 mm, sheet thickness 3 mm. Total length 90 mm, ear width 36 mm. Weight 0.44 kg. Permissible load for a pair 65 kg on a 2 m wing.
001-363 Availability: In stock (large quantity)
Delivered within: 10 Business days
