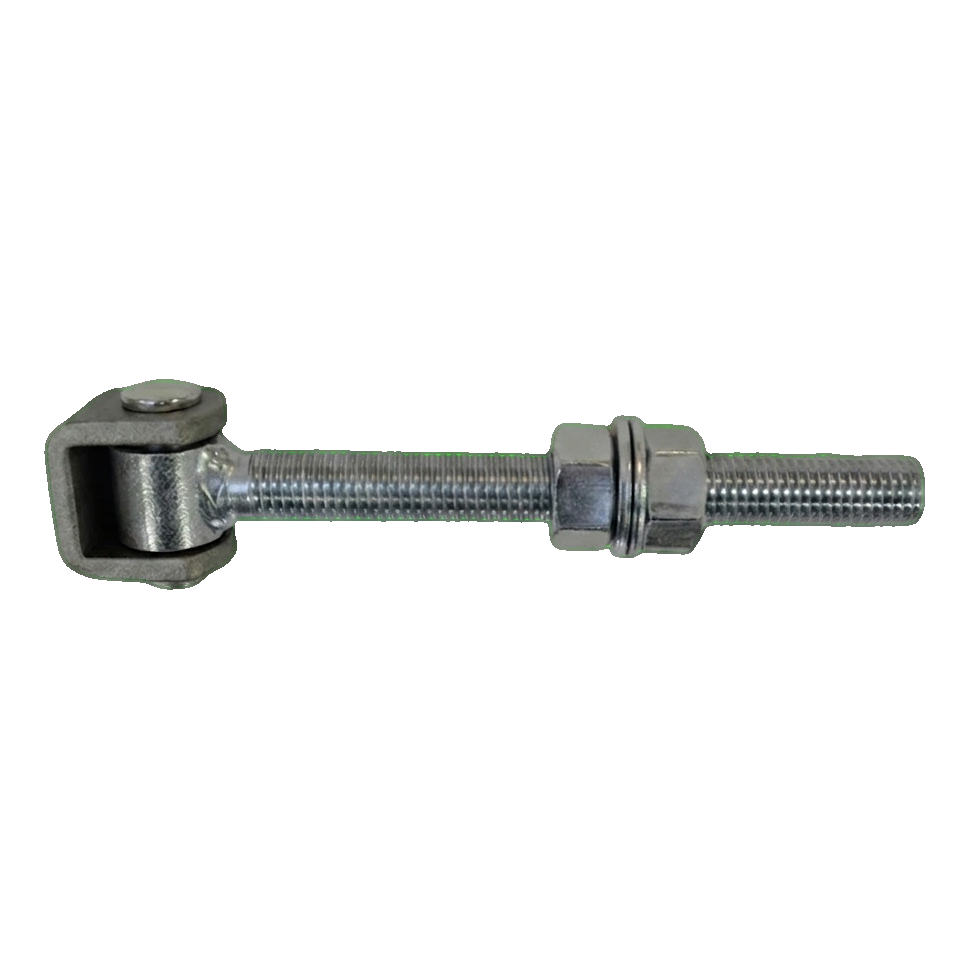

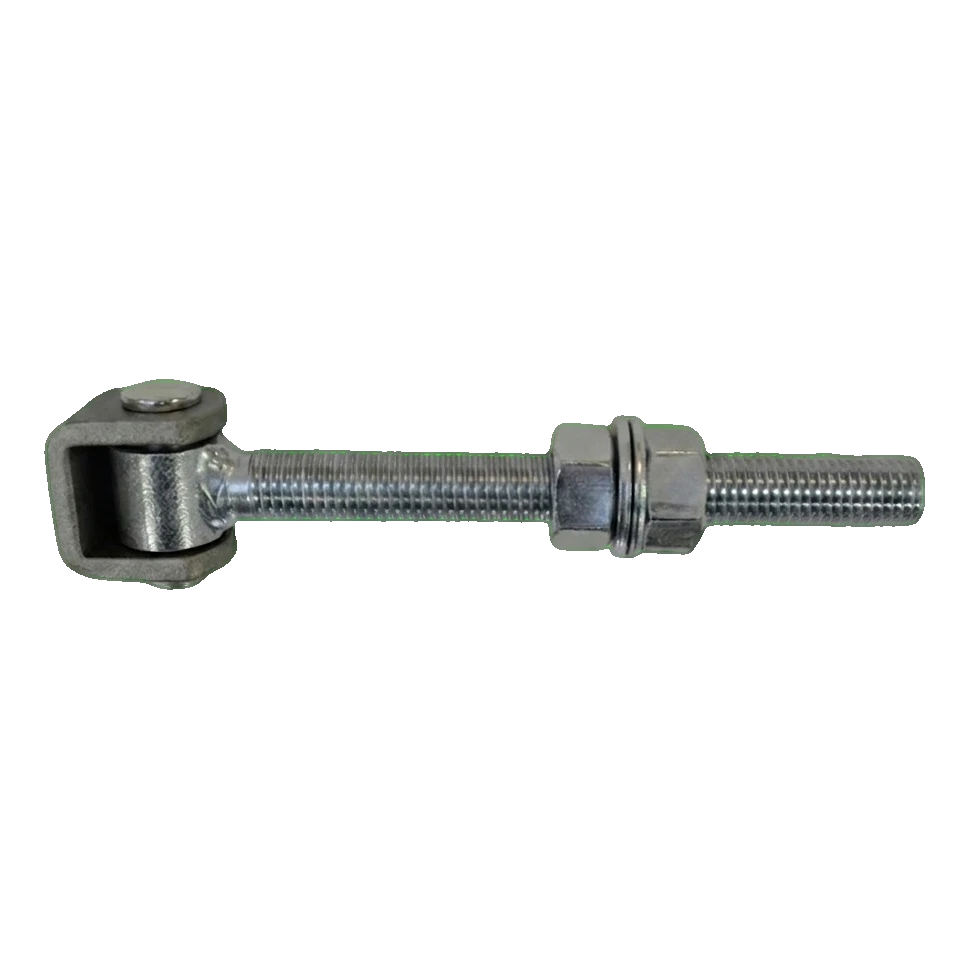

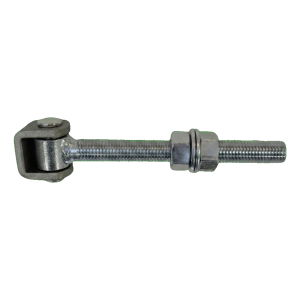

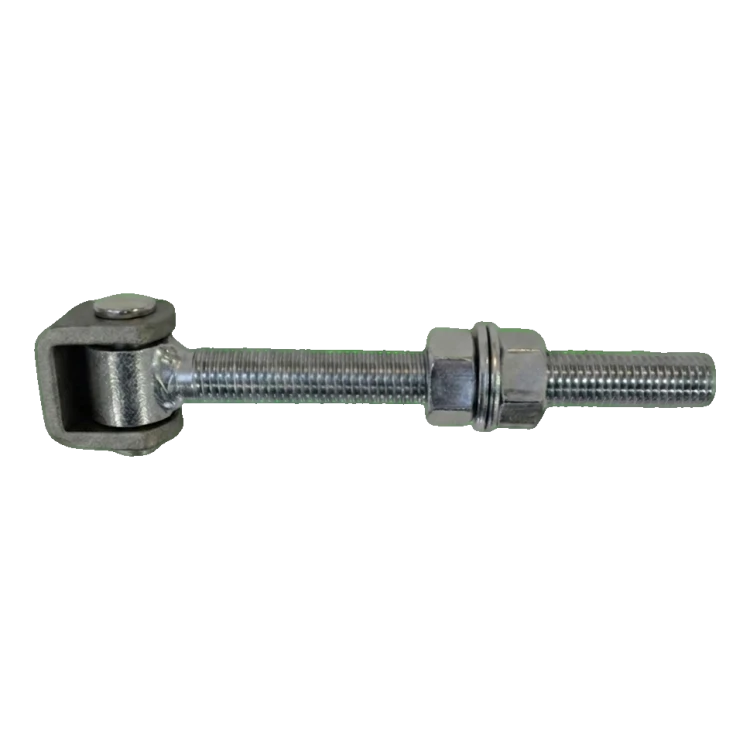

Adjustable Gate Hinge Bolt-on M18 Steel – Long L180 mm
Leave feedback on the product
Adjustable gate hinge M18 steel, spindle length 180 mm. Bracket 40x30 mm, plate thickness 6 mm, pin diameter Ø15 mm. M18 thread with adjustment nuts. Weight 0.64 kg. For gates and light swing gates.
Product code: 001-348
Product features
[PIM] zawiasy #113
- Thread type M18
- Mounting Method Bolt-On
- Material Steel
Description
Adjustable Gate Hinge Bolt-on M18 Steel – Long L180 mm
Adjustable bolt-on hinge M18 L180 mm is a durable steel suspension element designed for mounting gates and light swing gates. Thanks to the M18 thread with adjustment nuts it allows for precise adjustment of the gate leaf position both during installation and during operation — without the need to dismantle the entire suspension system.
The hinge construction enables quick correction of gate settings in case of sagging or thermal deformation (e.g. material stress during sudden temperature drops in winter). Simply loosen or tighten the nuts to restore proper gate leaf operation. This practical solution eliminates the need for re-welding or drilling — you save service time and materials.
Features and Benefits
- Post-installation adjustment — precise gate leaf setting using nuts without dismantling the hinge
- Designed for external use — high resistance to weather conditions
- High mechanical strength — steel construction resistant to damage and wear
- Quick installation — bolt-on threaded spindle M18 significantly speeds up installation
- Aesthetic finish — neat appearance matching fences and gates

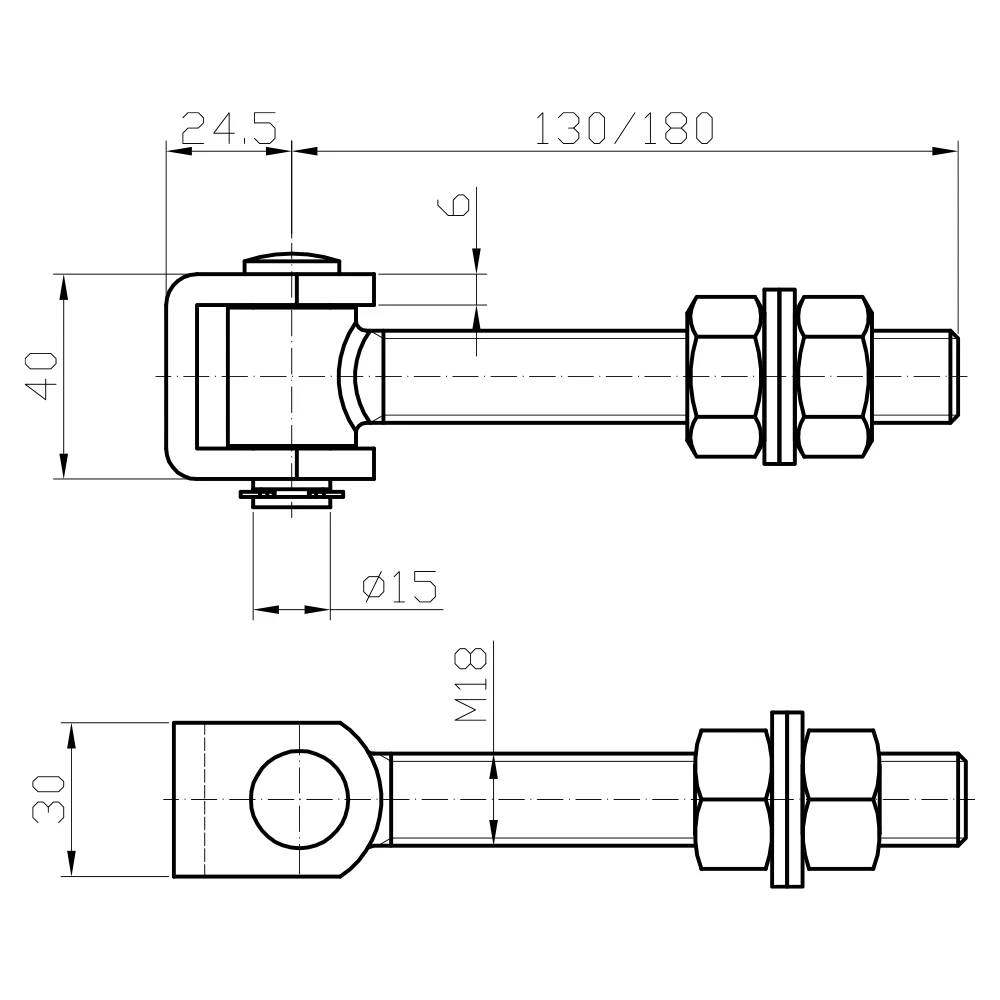

Technical Parameters
- Spindle length (L): 180 mm
- Spindle thread: M18
- Bracket height (H): 40 mm
- Bracket width: 30 mm
- Bracket depth (distance from pin axis to base): 24.5 mm
- Pin diameter: Ø15 mm
- Bracket plate thickness: 6 mm
- Material: steel
- Weight: 0.64 kg
Application
The hinge is designed for hanging gates and light swing gates in fencing systems. It works well wherever the ability to adjust later is required — both at the first commissioning stage and during seasonal setting corrections resulting from temperature changes or natural settling of the structure.
