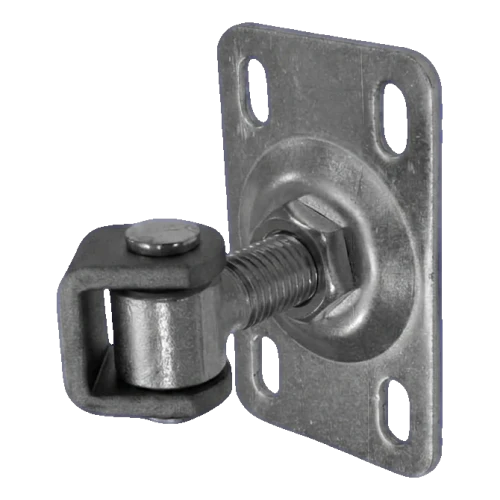

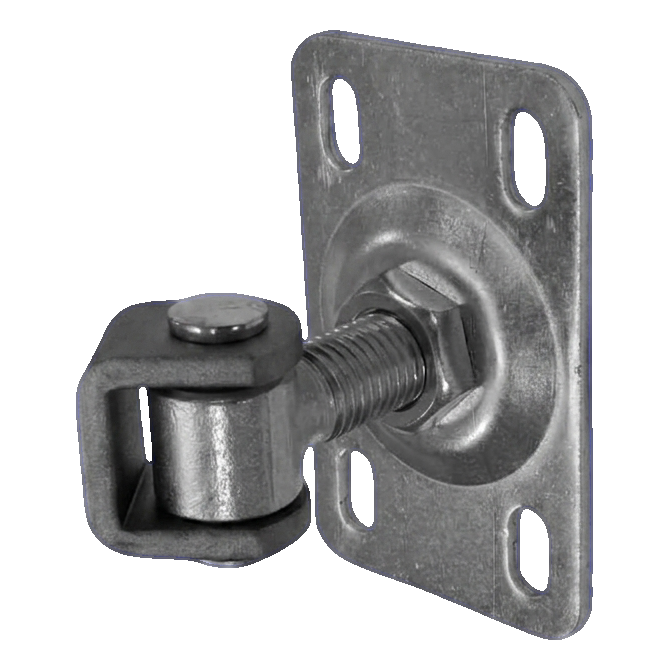

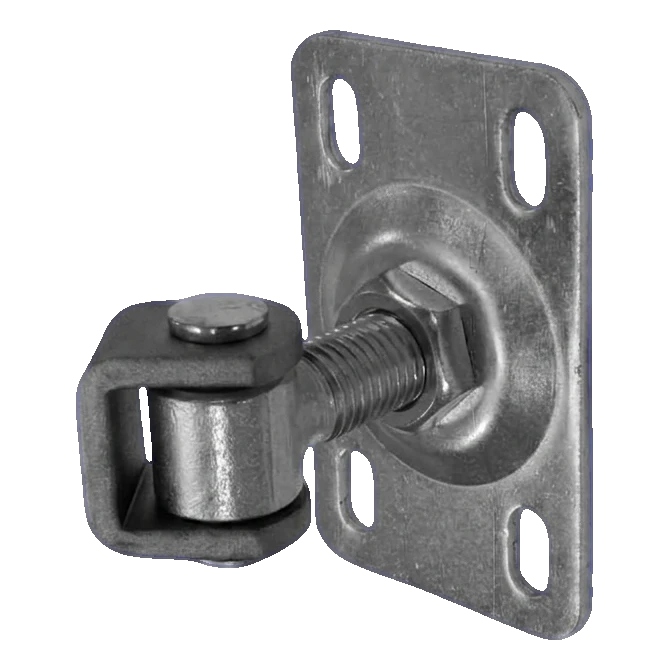

Adjustable gate hinge M20 steel with 120×75 mm base
Leave feedback on the product
Adjustable gate hinge M20 steel with 120×75 mm base. M20 thread, Ø15 mm pin, height adjustment 60-85 mm. Base thickness 4 mm, bracket 6 mm. Hole spacing 83×48 mm. Weight 0.68 kg. For swing gates and garden gates.
Product code: 001-395
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable gate hinge M20 steel with 120×75 mm base
Steel adjustable hinge M20 designed for mounting swing gates and garden gates. Robust construction with 120×75 mm mounting base with four slotted holes ensures secure and durable gate leaf suspension. Thanks to height adjustment range of 60–85 mm you can precisely set the gate position after installation completion — without the need to dismantle the entire hinge.
The hinge is designed for external use. Slotted holes in the base allow position correction in the mounting plane, which greatly facilitates gate leaf adjustment and compensation of minor construction inaccuracies of the post.
Dimensions and technical parameters
- Shaft thread: M20
- Pin diameter: Ø15 mm
- Base dimensions: 120 × 75 mm
- Base thickness: 4 mm
- Bracket plate thickness: 6 mm
- External bracket width: 40 mm
- Bracket depth: 30 mm
- Height adjustment range: 60–85 mm
- Mounting hole spacing: 83 × 48 mm (centre to centre)
- Slotted hole dimensions: 19.5 × 10.5 mm
- Material: steel
- Weight: 0.68 kg
- Application: swing gates, garden gates — external mounting

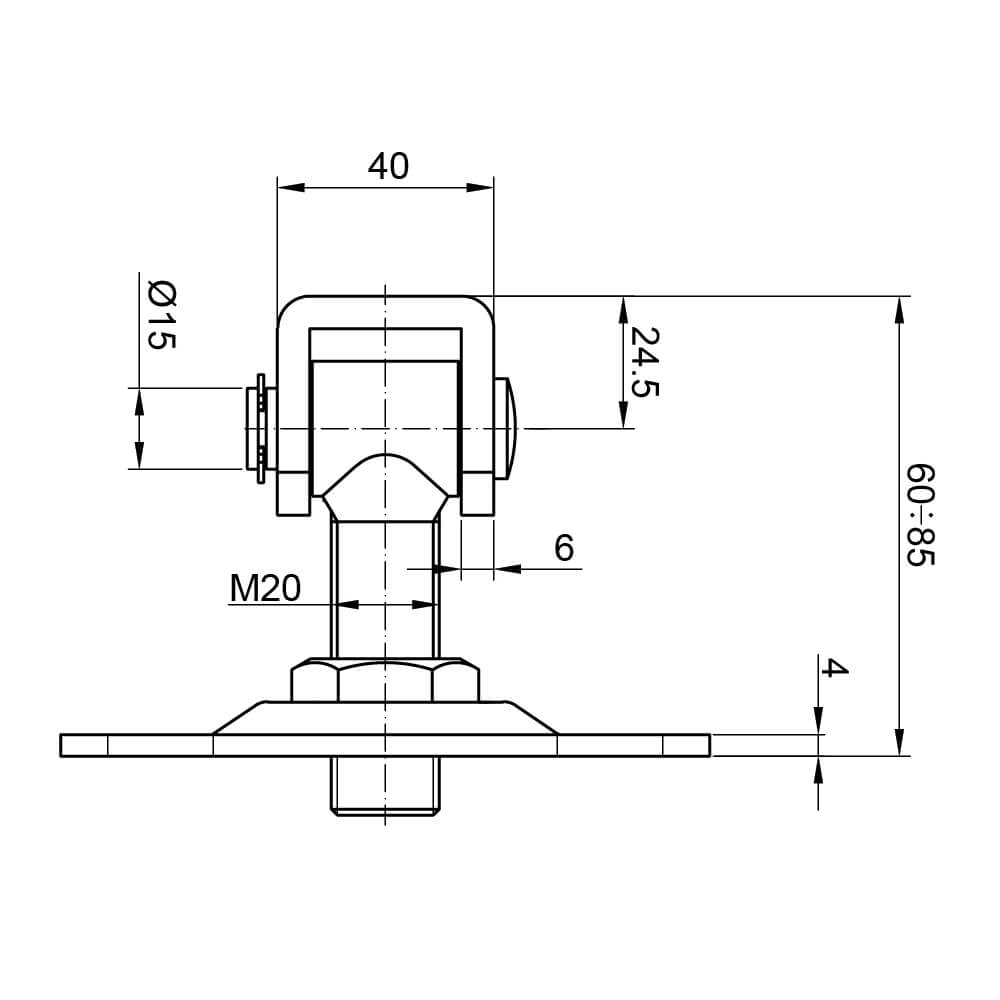

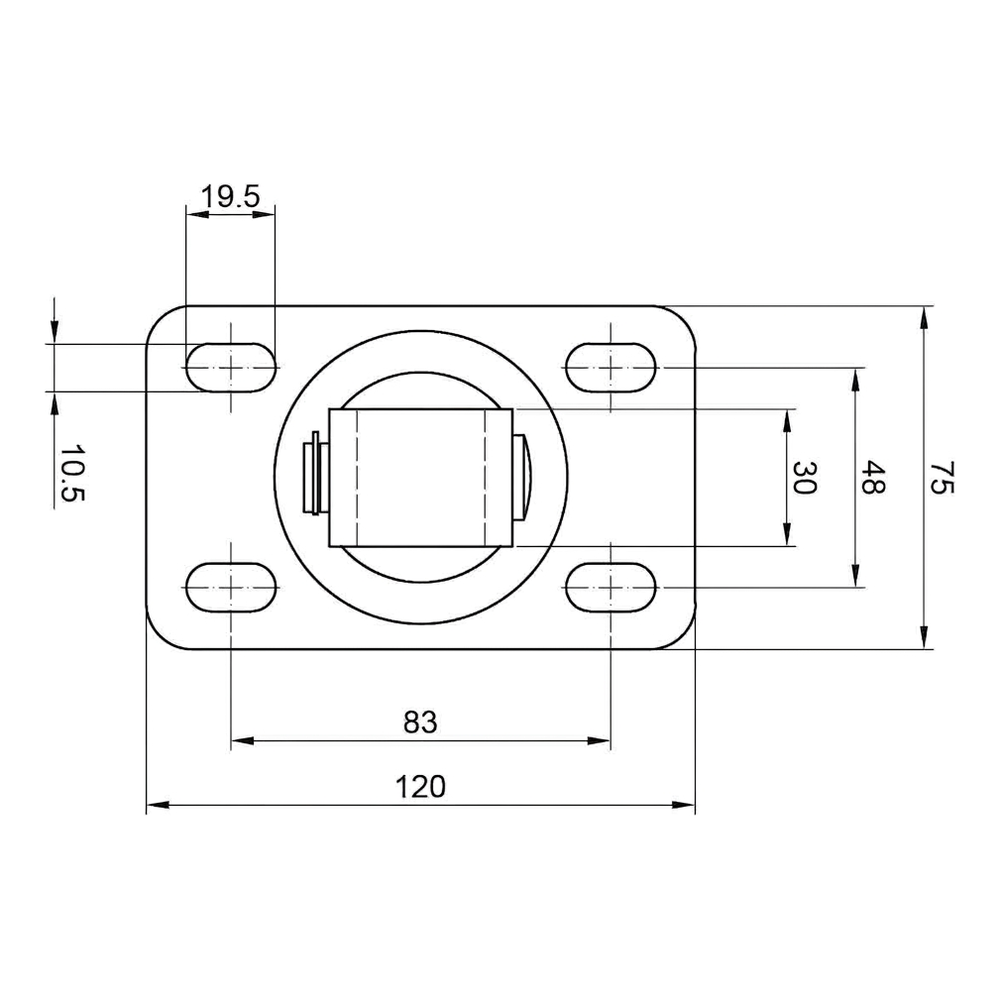

Dimensional drawing
