Adjustable Built-in Hinge M16 Galvanised Steel
Leave feedback on the product

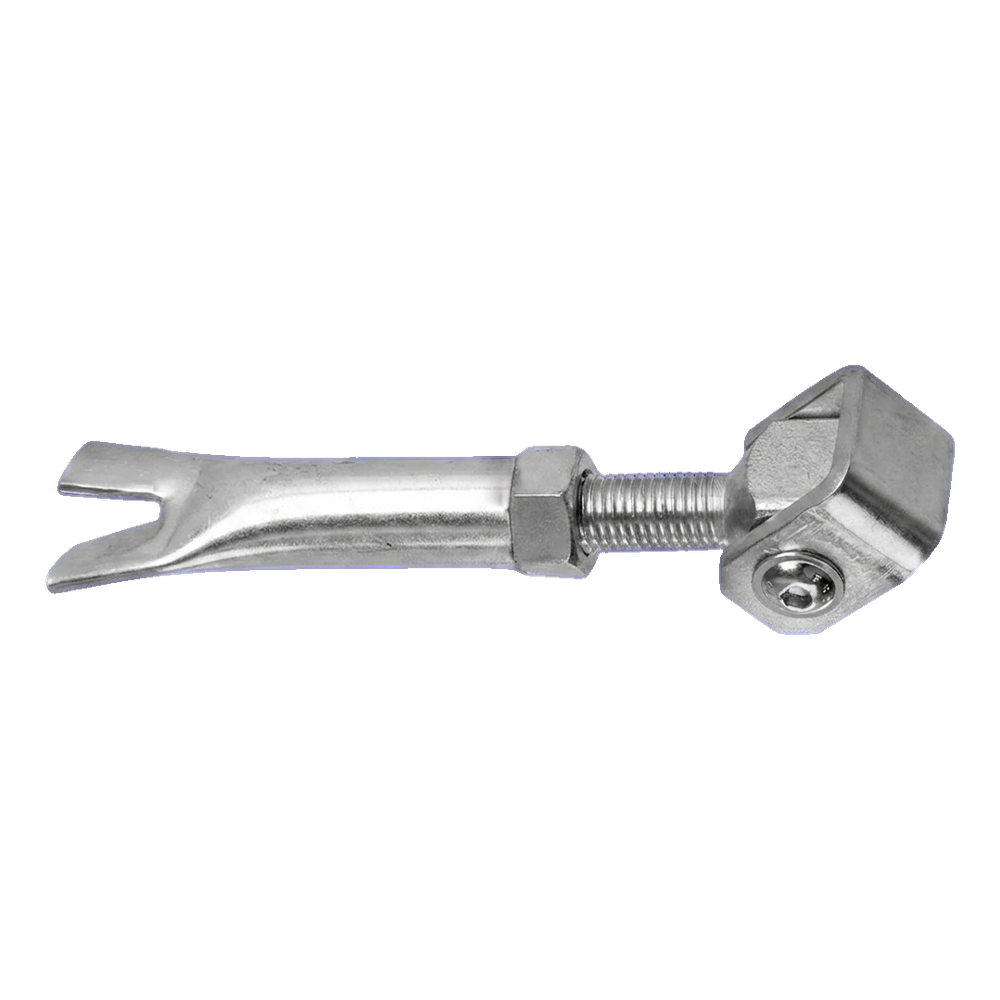

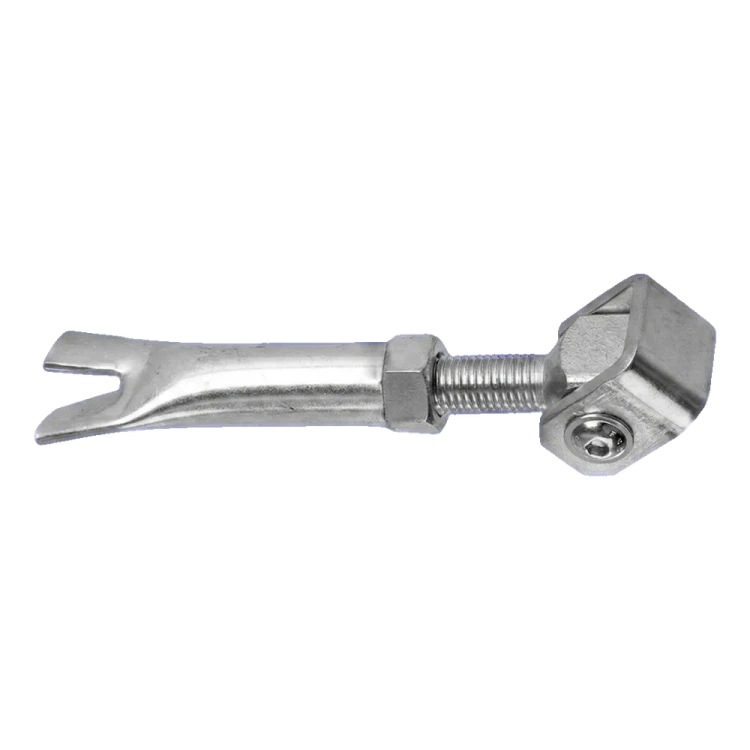

Adjustable built-in hinge M16 made from galvanised steel. M16 thread with adjustment nut. Spindle length 90 mm, anchor 112 mm, sleeve 40 mm. Ear width 36 mm. Weight 0.42 kg. For gates and wickets in masonry structures.
Product code: 001-353
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable Built-in Hinge M16 Galvanised Steel
Adjustable built-in hinge M16 is a durable hardware element designed for mounting gates and wickets in masonry structures. Thanks to the M16 thread with adjustment nut, it enables precise correction of leaf position both directly after installation and during operation — e.g. in case of structure sagging or thermal deformations of metal during winter periods. Simply tighten or loosen the nut to restore proper gate alignment without the need to dismantle the hinge.
Product made from galvanised steel — the zinc coating provides long-term corrosion protection and allows the hinge to be used outdoors, in full exposure to atmospheric conditions. The expanded anchor end guarantees stable embedment in the wall and secure load transfer.
Advantages for the installer
- Post-installation adjustment — quick leaf alignment correction with the nut without dismantling
- Galvanisation — high corrosion resistance, designed for external applications
- High strength — steel construction resistant to mechanical damage and wear
- Simple installation — built-in anchor with expanded base ensures stable embedment
- Permissible load for a pair of hinges on a 2 m long leaf: 65 kg

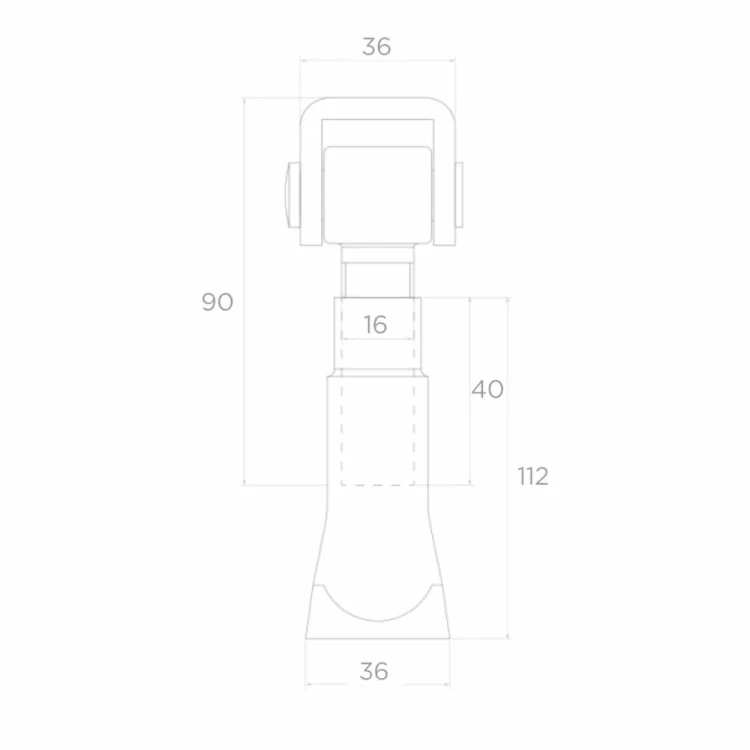

Dimensions and technical data
- Thread: M16
- Material: galvanised steel
- Spindle length (mounting part): 90 mm
- Built-in anchor length: 112 mm
- Adjustment sleeve length: 40 mm
- Ear width (U-bracket): 36 mm
- Anchor base width: 36 mm
- Weight: 0.42 kg
- EAN: 5901289675833
