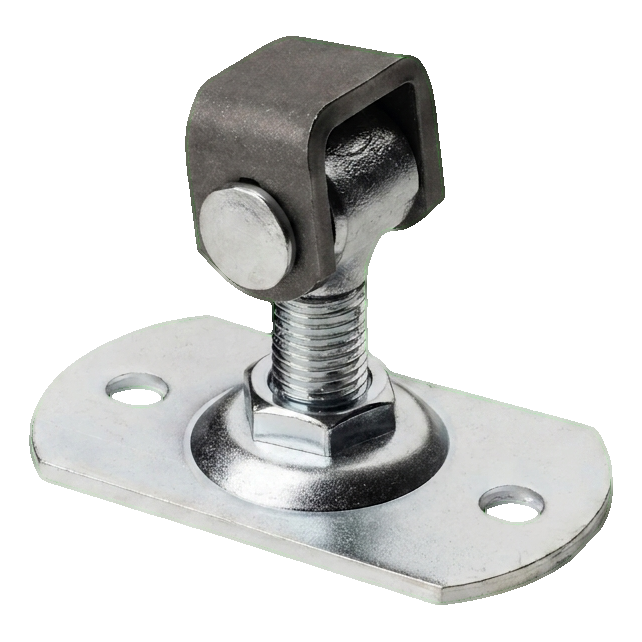

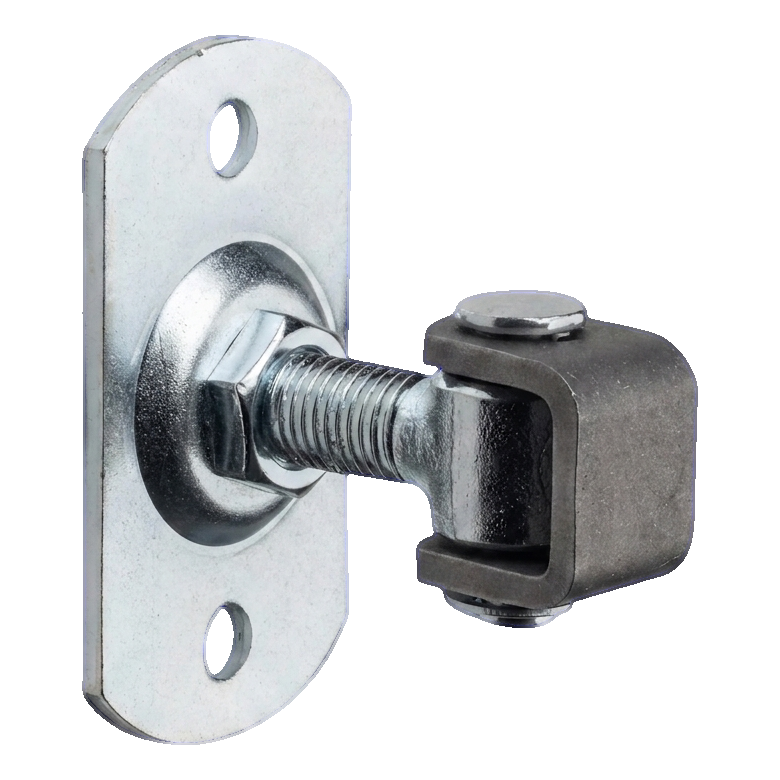

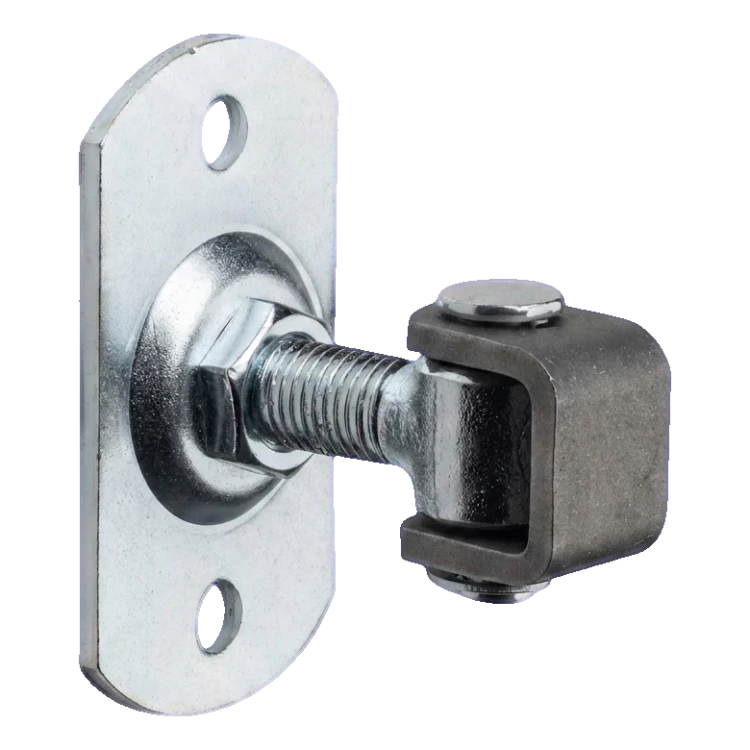

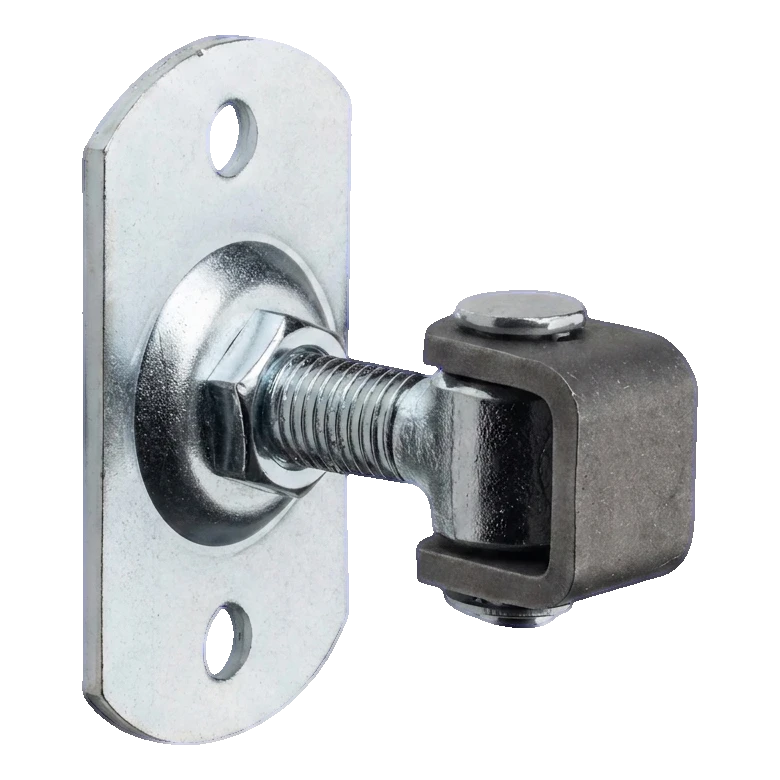

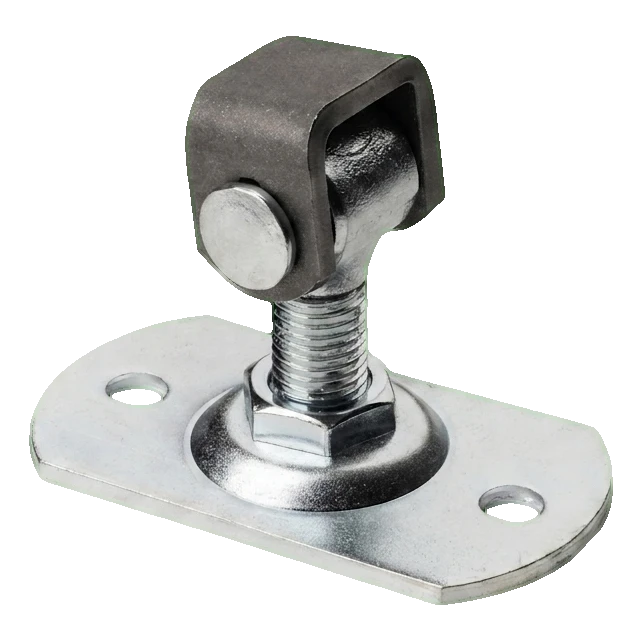

Adjustable gate hinge M16 with rectangular plate 100×55×4 mm
Leave feedback on the product
Adjustable gate hinge M16 with steel plate 100×55×4 mm. Depth adjustment 52-72 mm, M16 thread, fork bracket with Ø12 mm pin. Mounting holes spacing 72 mm. Galvanised plate, weight 0.4 kg. For gates and swing gates.
Product code: 001-392
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
Adjustable gate hinge M16 with rectangular plate 100×55×4 mm
Steel adjustable hinge M16 with rectangular mounting plate is a reliable solution for professional hanging of gates and swing gates. Thanks to depth adjustment in the range of 52–72 mm, it allows precise correction of the gate leaf position both during initial installation and during subsequent operation — without the need to dismantle the structure.
Adjustment is carried out using the nut on the M16 thread, which enables quick compensation for thermal stresses, gate leaf sagging or natural settling of fence posts. This represents real savings in time and service costs for installation crews.
Construction and materials

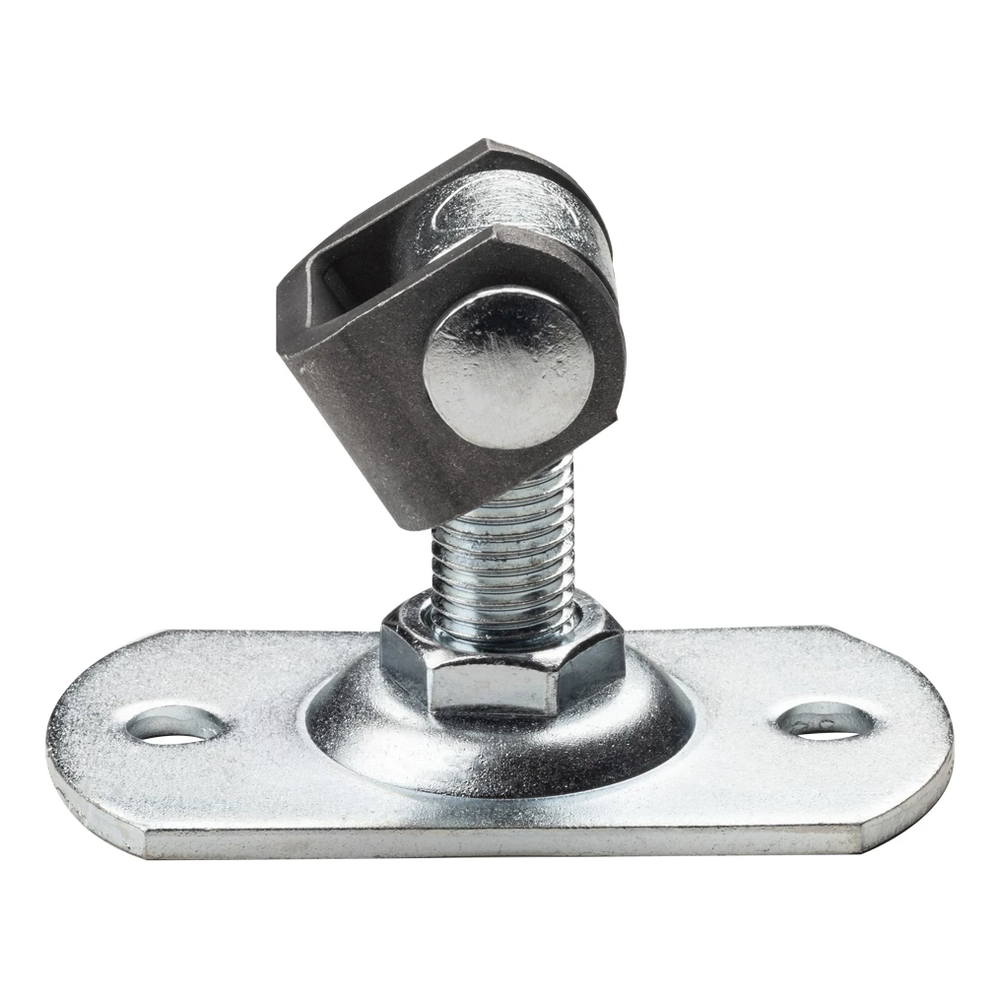

The hinge consists of a galvanised mounting plate with dimensions 100 × 55 mm and thickness 4 mm, a bolt with M16 thread and a cast fork bracket (U-type) with a pin of diameter Ø12 mm. The whole assembly ensures high mechanical strength, wear resistance and durability in outdoor conditions.

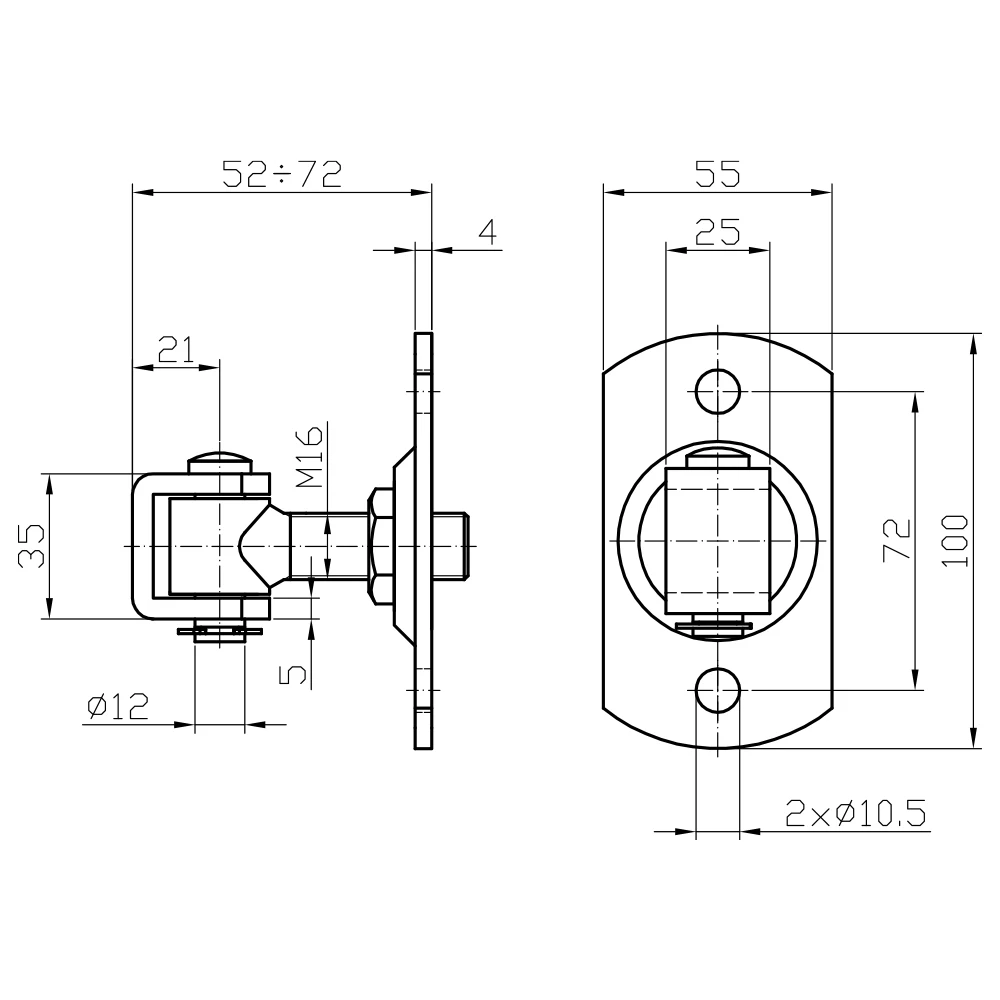

Dimensions and technical parameters
- Bolt thread: M16
- Adjustment range (depth): 52–72 mm
- Plate dimensions (H × L): 100 × 55 mm
- Plate thickness: 4 mm
- Mounting holes spacing: 72 mm
- Mounting holes diameter: 2 × Ø10.5 mm
- Fork bracket dimensions: height 35 mm, depth 21 mm, internal clearance 25 mm
- Bracket arm thickness: 5 mm
- Pin diameter: Ø12 mm
- Material: steel — galvanised plate, cast bracket
- Weight: 0.4 kg
- Application: external use — gates, swing gates
Installer benefits
- Post-installation adjustment — M16 nut enables precise gate leaf positioning at any time
- Thermal stress compensation — easy tightening or loosening at extreme temperatures
- Simple installation — two Ø10.5 mm mounting holes allow quick plate attachment to post
- High durability — steel construction resistant to mechanical damage and wear
- Aesthetic finish — galvanised plate surface ensures neat appearance and anti-corrosion protection
