Adjustable gate hinge for welding M20 galvanised steel
0
Description

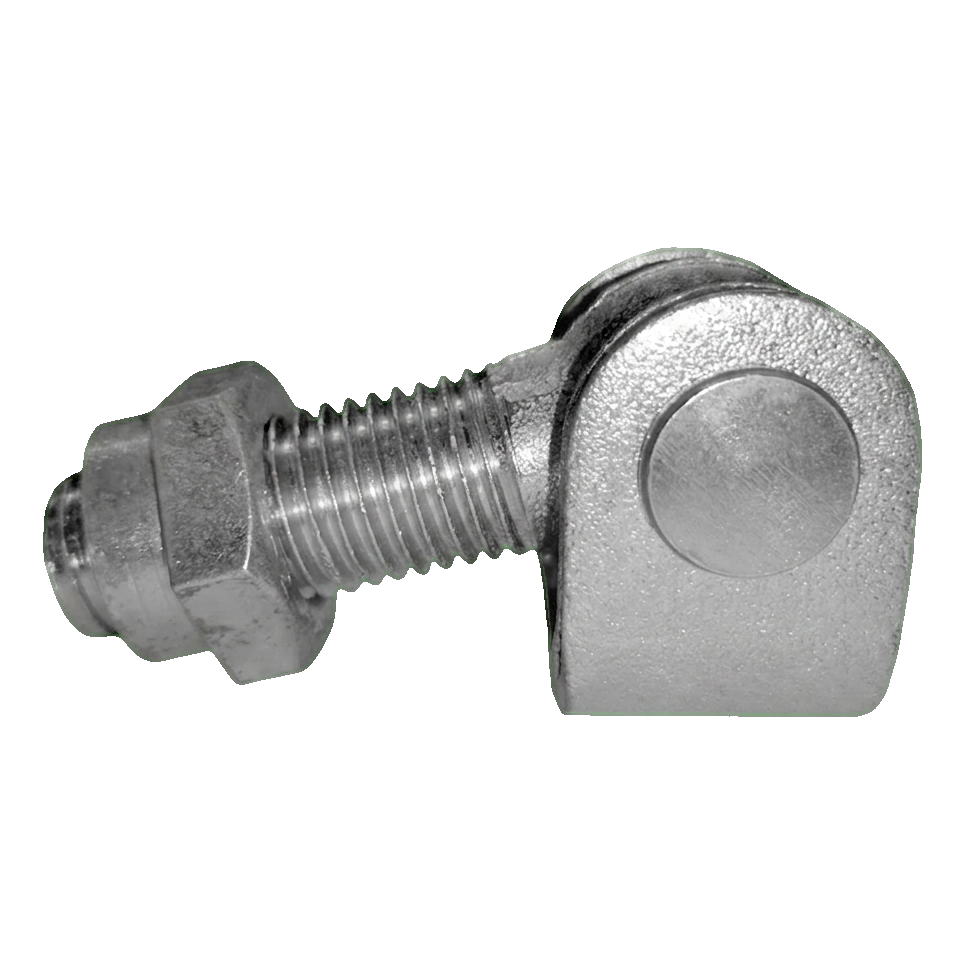

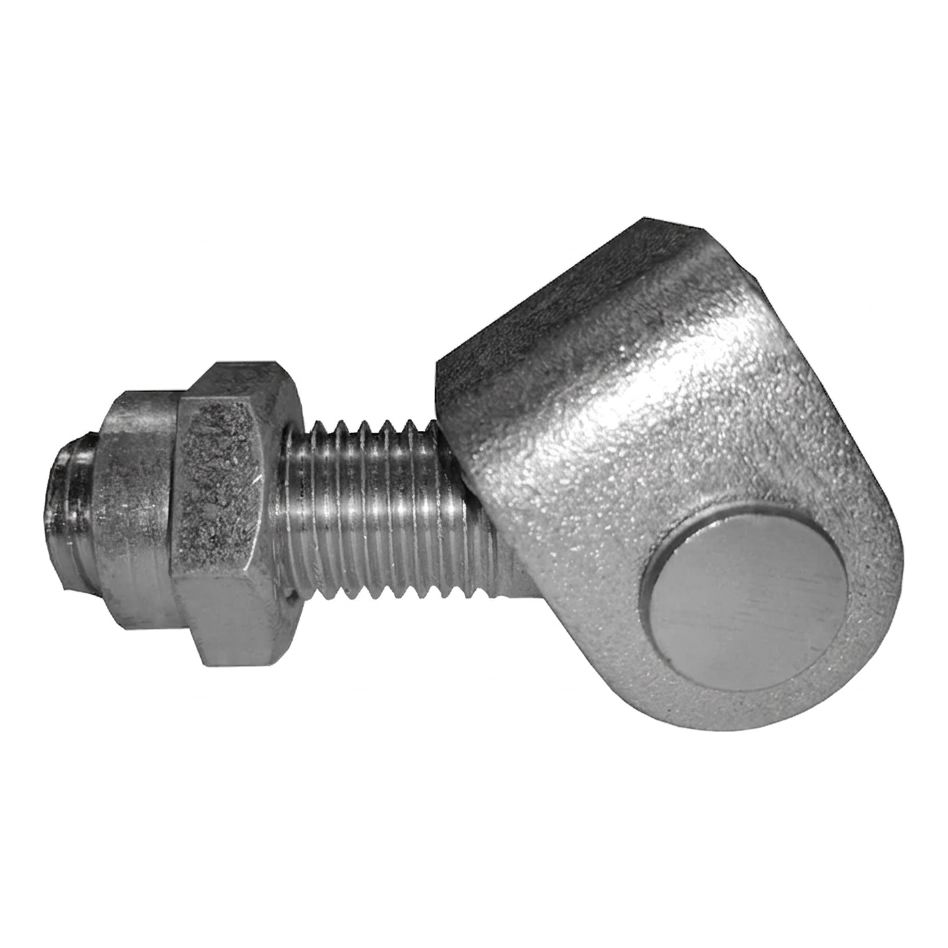

Adjustable gate hinge for welding M20 galvanised steel
Adjustable hinge for welding M20 is a robust hardware component designed for mounting leaf gates. Thanks to its construction with M20 thread and adjustment nut, it enables precise correction of gate leaf positioning both immediately after installation and during subsequent operation — without the need for hinge dismantling.
The steel body protected by hot-dip galvanising guarantees many years of corrosion resistance in outdoor conditions. The hinge performs excellently wherever gate construction requires periodic adjustment — e.g. after leaf sagging due to weight or thermal deformations of metal during winter periods. Simply tighten or loosen the nut to restore proper clearance and leaf position.
Advantages of adjustable hinge
- Full galvanising — long-term anti-corrosion protection for outdoor applications
- Post-installation adjustment — quick leaf position correction with nut without dismantling
- High mechanical strength — steel construction resistant to impacts and wear
- Aesthetic finish — uniform galvanised coating with attractive appearance
- Permissible load of hinge pair on 2 m long leaf: 105 kg
Dimensions and technical data
- Overall length (L): 87 mm
- Ear width: 43 mm
- Welding sleeve length: 40 mm
- Cylindrical part of sleeve length: 23 mm
- Pin diameter / thread: M20 (⌀20 mm)
- External sleeve diameter: 25 mm
- Material: steel
- Anti-corrosion protection: galvanised
- Weight: 0.415 kg
Installation and application
The hinge sleeve is designed for welding into the gate post or leaf frame. After installation, the threaded pin enters the sleeve, and the nut with washer enables height adjustment. This solution significantly speeds up finishing work — the installer can precisely set the gate leaf after completion of welding and painting, compensating for any construction irregularities.
The M20 adjustable hinge is primarily intended for leaf gates — both single and double-leaf. It performs well in entrance gates, industrial and fencing applications. A pair of hinges carries loads up to 105 kg on a 2 m long leaf, allowing use in most standard gate constructions.
Technical data
| Thread type | M20 |
| Mounting Method | Weld-On |
| Material | Steel |
