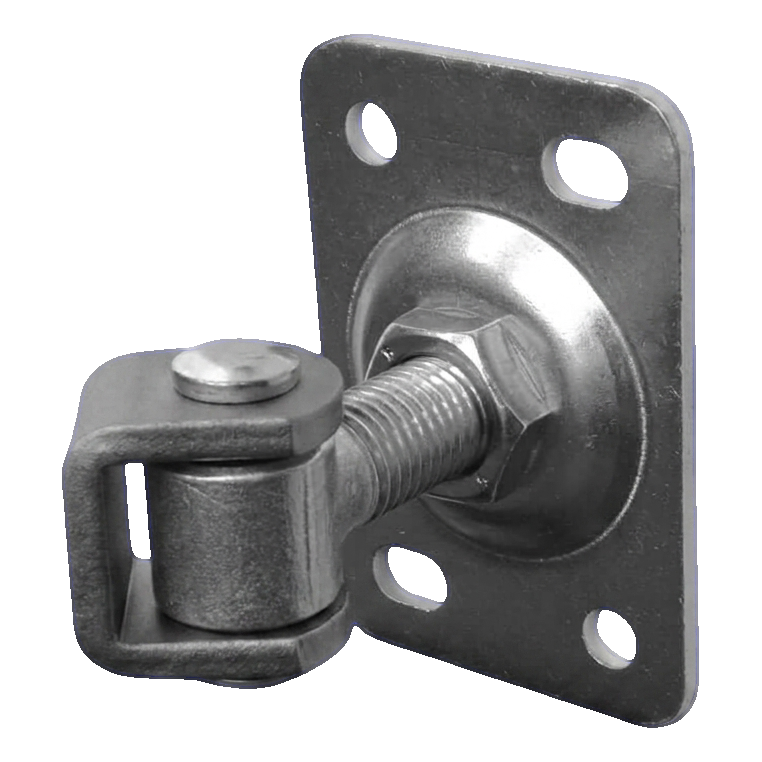

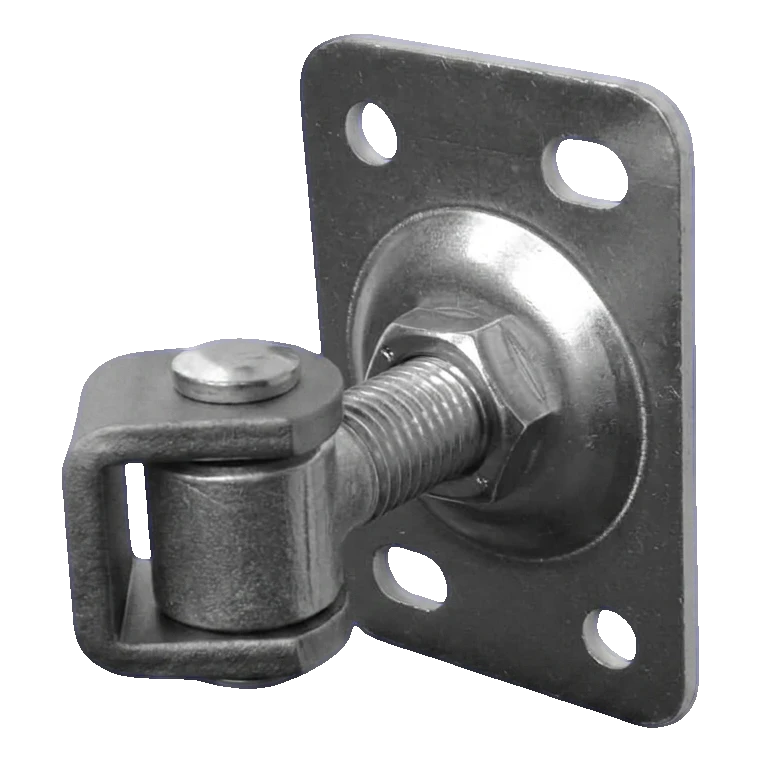

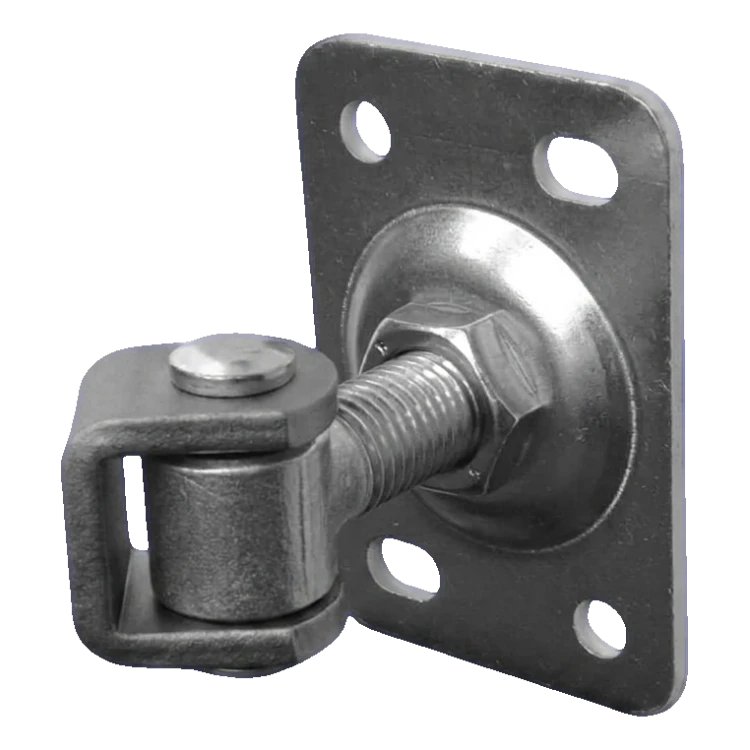

Adjustable gate hinge M20 with 110×75 mm base – bean type
Leave feedback on the product
Adjustable steel gate hinge M20 with 110×75 mm base and bean-type eye. M20 thread, working height 60-85 mm, base thickness 4 mm. Four oval mounting holes 10.5×16 mm. Weight 0.64 kg. For swing gates and garden gates.
Product code: 001-399
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable gate hinge M20 with 110×75 mm base – bean type
Steel adjustable hinge M20 with mounting base and bean-type eye — a robust and conveniently adjustable solution for mounting swing gates and garden gates. The M20 thread provides high load capacity and easy height adjustment of gate suspension even after completed installation, allowing precise gate levelling without dismantling the structure.
The base with four bean-type mounting holes (oval) enables correction of hinge position in both vertical and horizontal planes, significantly facilitating work on uneven fence posts. Product designed for outdoor use — ideal for fencing, entrance gates and property gates.

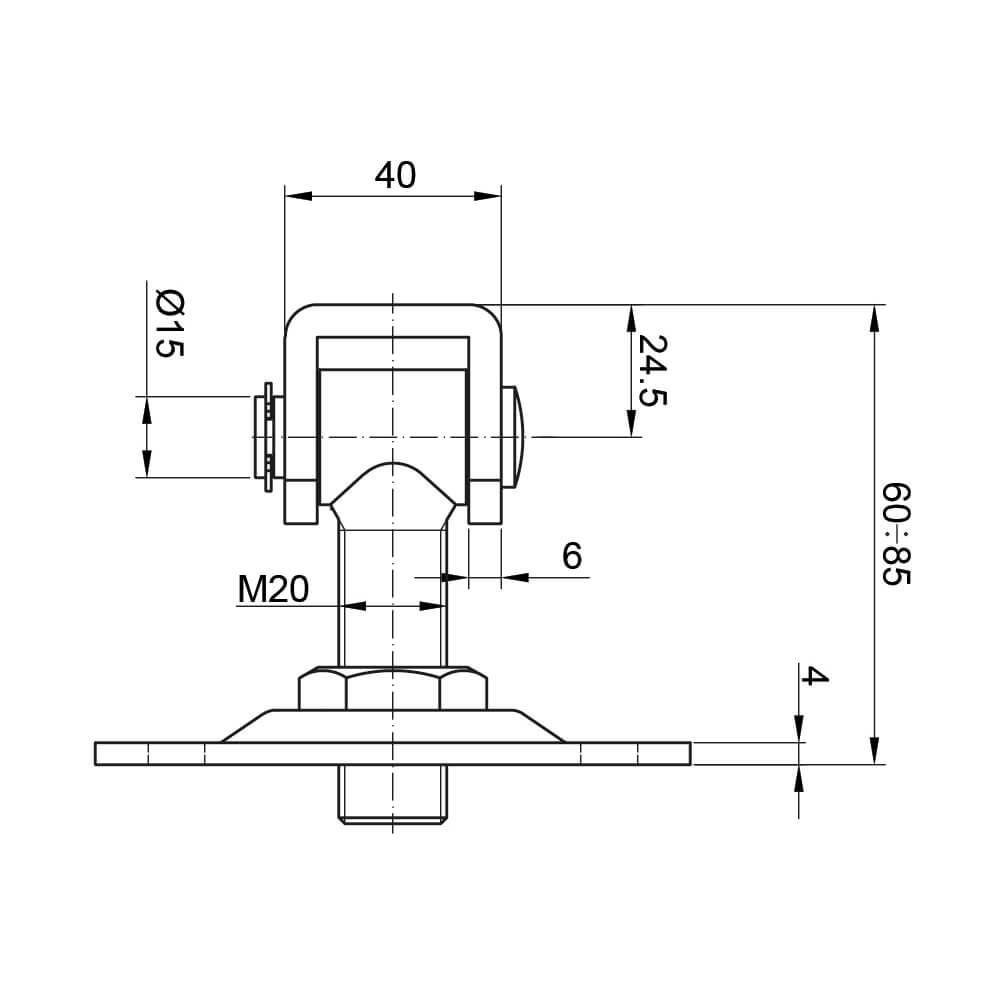

Dimensions and technical parameters
- Pin thread: M20
- Base dimensions (L×W): 110 × 75 mm
- Base thickness: 4 mm
- Working height (adjustable): 60–85 mm
- Eye width: 40 mm
- Eye material thickness: 6 mm
- Eye internal clearance: 30 mm
- Eye height (from pin axis): 24.5 mm
- Pin diameter: Ø15 mm

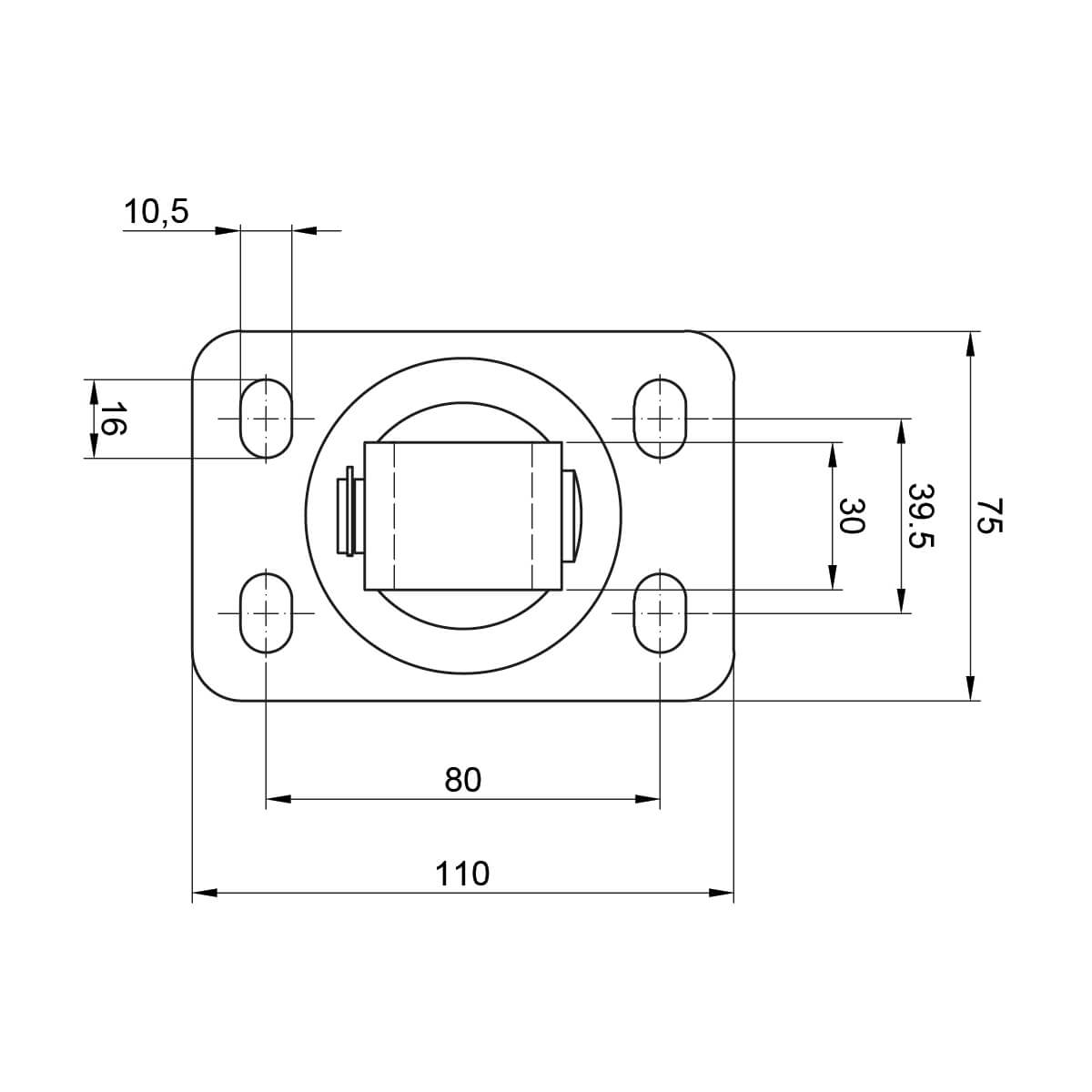

Mounting holes and spacing
- Number of mounting holes: 4
- Hole type: oval (bean)
- Hole dimensions: 10.5 × 16 mm
- Longitudinal hole spacing: 80 mm
- Transverse hole spacing: 39.5 mm
Product data
- Material: steel
- Weight: 0.64 kg
- Application: swing gates, garden gates, fencing
- Purpose: outdoor use
- EAN: 5901431941427
