Adjustable welding hinge M12 – AISI 304 stainless steel, satin
Adjustable welding hinge M12 made of AISI 304 stainless steel, satin finish. M12 thread, total length 62 mm, threaded pin 47 mm, ear width 25 mm. Weight 0.13 kg. For left and right swing gates.
001-218 Availability: In stock (large quantity)
Delivered within: 10 Business days
Angular hinge with pin H400 black – complete set for one gate leaf
Angular hinge with pin H400 black, complete upper and lower set. Steel flat bar 50×5 mm, pin Ø16 mm. Horizontal arm 750 mm, vertical 400 mm. BASF cataphoretic coating. Weight 5.74 kg. For gates and garden gates.
001-500 Availability: In stock (large quantity)
Delivered within: 10 Business days
Ball bearing hinge φ 24 with mounting plate 150×40 mm for gates and wickets
Ball bearing hinge φ 24 with mounting plate 150×40 mm. Steel plate thickness 4 mm, ball ø 24 mm, hole spacing 110 mm, holes ø 10.5 mm. Weight 0.44 kg. For gates and wickets.
001-497 Availability: In stock (large quantity)
Delivered within: 10 Business days
Belt hinge pin Ø14 mm for screwing – spindle for swing gates
Belt hinge pin Ø14 mm for screwing. Steel spindle with height 37 mm with mounting plate 112x35x5 mm. L profile with 2 square holes 8.4 mm. Weight 0.26 kg. For swing gates.
001-508 Availability: In stock (large quantity)
Delivered within: 10 Business days
Black steel angle hinge H250 x L285 mm – set of 4 pcs for two leaves
Black steel angle hinge H250 x L285 mm, set of 4 pcs. Sheet thickness 4 mm, flat bar width 35 mm, pin diameter 14 mm. KTL cataphoretic painting. Weight 1.3 kg. For doors, gates and barriers.
001-501 Availability: In stock (large quantity)
Delivered within: 10 Business days
Central Strap Hinge with Ball for Leaf Gates 400 mm
Central strap hinge with ball for leaf gates. Height 400 mm, arm width 50 mm. Steel plate thickness 5 mm. Pin diameter 16 mm, sleeve 27 mm. Weight 1.68 kg. For mounting between the upper and lower hinges.
001-498 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello adjustable gate hinge for wall mounting M20 galvanised 150 mm
Comunello adjustable gate hinge for wall mounting, M20 thread, 150 mm length. Galvanised metal, weight 0.5 kg. For swing gates. Position adjustment after installation via threaded nut.
001-380 Availability: In stock (large quantity)
Delivered within: 10 Business days

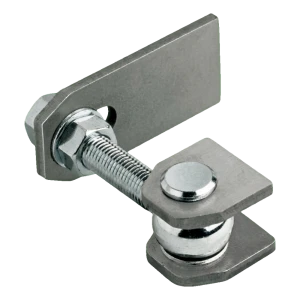

Comunello adjustable gate hinge M20 – 180° opening angle galvanised
Comunello M20 adjustable gate hinge, galvanised metal. Opening angle 180°, M20 thread. Dimensions: length 150 mm, height 60 mm, weight 1.465 kg. For swing gate fencing systems.
001-384 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello adjustable hinge M18 steel for swing gates and wicket gates
Comunello adjustable hinge M18 steel for swing gates and wicket gates. M18 thread, height 100 mm, fork width 39 mm, base 60 mm. Weight 0.395 kg. Fork construction with rotating ball.
001-416 Availability: In stock (large quantity)
Delivered within: 10 Business days
COMUNELLO adjustable steel gate hinge M20 L90 mm
COMUNELLO adjustable gate hinge M20 made of steel, length 90 mm. M20 thread, ear width 40 mm, base diameter 48 mm. Ball joint, height adjustment. For hinged gates on fence posts. Weight 0.54 kg.
001-374 Availability: In stock (large quantity)
Delivered within: 10 Business days
COMUNELLO adjustable steel hinge M22 for gates and garden wickets
COMUNELLO M22 adjustable hinge made of steel with protective coating. M22 thread, height 108 mm, bracket width 53 mm, base diameter 70 mm, weight 0.845 kg. For swing gates and garden wickets. Multi-plane adjustment after installation.
001-377 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello Albatros Piccolo – hinge system for folding gates up to 4 m / 100 kg
Comunello Albatros Piccolo is a hinge system for folding gates. Trackless hanging mechanism for gates up to 4 m long and 100 kg weight. The set includes a lower hinge with gear and arm, upper hinge with gear, and adjustable bracket. Italian manufacture.
001-530 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello gate hinge set for welding onto 40×40 mm post – left-hand, for ascending slopes
Comunello left-hand gate hinge set for welding onto 40×40 mm post. Electrolytically galvanised steel. Length 220 mm, weight 5 kg. Maximum leaf length 3 m, weight 120 kg. Lifting angle 10°. For areas with ascending slopes.
001-527 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello gate hinge set for welding onto 40×40 mm post – right-hand, for rising slopes
Comunello gate hinge set for welding onto 40×40 mm post, right-hand, galvanised steel. For swing gates on slopes up to 10°. Maximum wing weight 120 kg, length 3 m. With eccentric joint and grease nipples.
001-528 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello gate hinge set for welding to 50×50 mm post – right-hand, for sloping grounds
Comunello gate hinge set for welding to 50×50 mm post, right-hand. Electrolytically galvanised steel. For swing gates up to 3 m and 120 kg. Inclination adjustment up to 10°. Mounting plate 65×110×5 mm, weight 5.8 kg.
001-525 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello RS-100F – screw-on gate hinge set for rising slopes
Comunello RS-100F galvanised steel gate hinge set. For swing gates on slopes, max. weight 150 kg, length 3 m, angle 10°. Eccentric adjustment, grease nipples, screw-on mounting. Set dimensions 220 mm, weight 4.6 kg.
001-529 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello – adjustable hinge for swing gates M20, mounting plate 100×100 mm
Comunello adjustable hinge with M20 thread for swing gates. Mounting plate 100×100×4 mm made of galvanised steel. Hole spacing 65×65 mm, diameter ø10.5 mm. Projection 100 mm, ear width 38 mm. Weight 0.775 kg.
001-333 Availability: In stock (large quantity)
Delivered within: 10 Business days
Comunello – adjustable welding hinge M18 for swing gates
Comunello adjustable welding hinge M18 with galvanised metal construction. Length 85 mm, weight 0.385 kg. M18 thread with adjustment nut. For swing gates.
001-376 Availability: In stock (large quantity)
Delivered within: 10 Business days
