Belt hinge pin Ø14 mm for screwing – spindle for swing gates
Leave feedback on the product

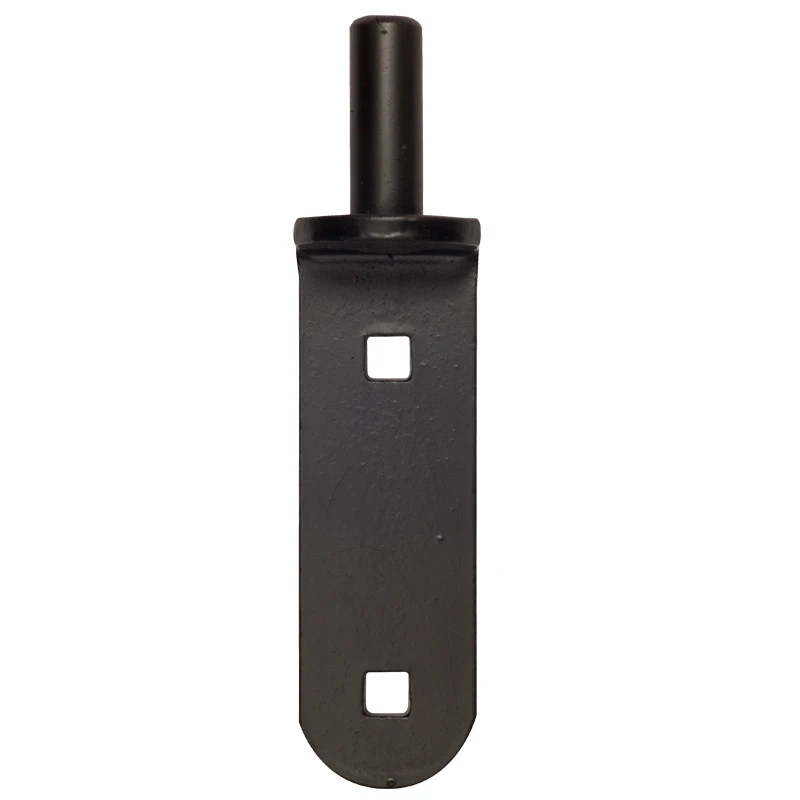

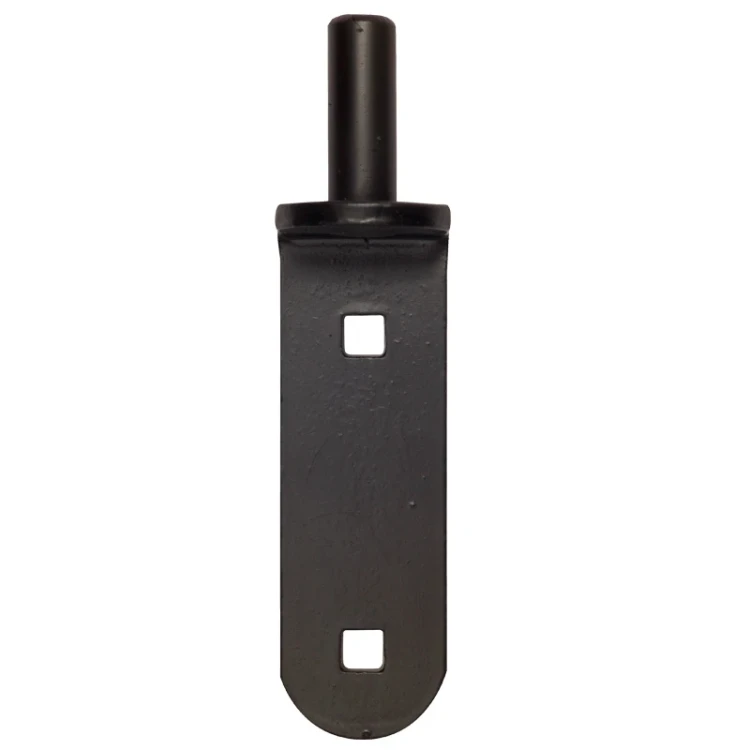

Belt hinge pin Ø14 mm for screwing. Steel spindle with height 37 mm with mounting plate 112x35x5 mm. L profile with 2 square holes 8.4 mm. Weight 0.26 kg. For swing gates.
Product code: 001-508
Product features
[PIM] zawiasy #113
- Diameter 14
- Mounting Method Bolt-On
- Material Steel
Description
Belt hinge pin Ø14 mm for screwing – spindle for swing gates
Belt hinge pin (spindle) designed for swing gates, mounted by screwing. Solid L-shaped construction with massive mounting plate and vertical spindle with Ø14 mm diameter ensures durable and stable hinge mounting. Pre-drilled mounting holes enable quick installation without the need for additional drilling.

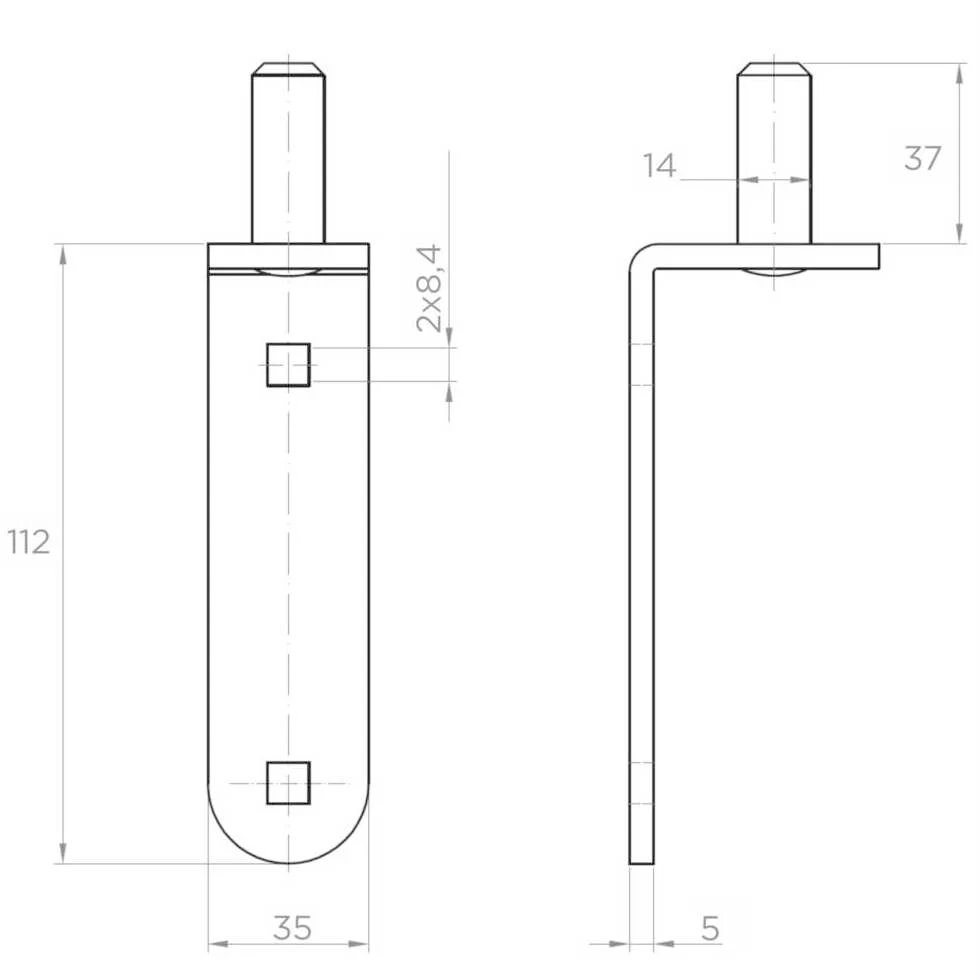

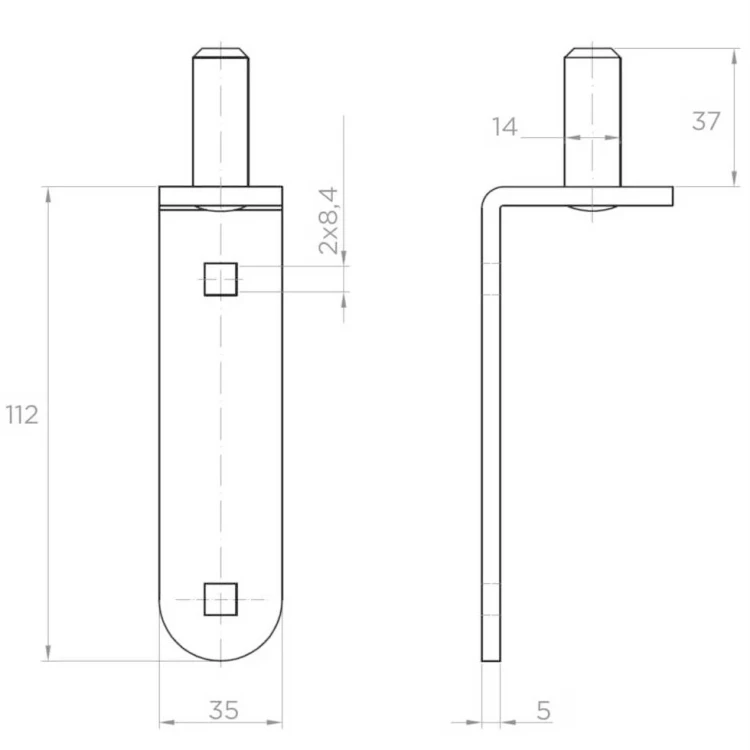

Dimensions and technical parameters
- Spindle diameter: Ø14 mm
- Spindle height: 37 mm
- Mounting plate height: 112 mm
- Mounting plate width: 35 mm
- Plate thickness: 5 mm
- Mounting holes: 2 × 8.4 mm (square)
- Profile: L shape
- Weight: 0.26 kg
- EAN: 5901431940697
Application and installation
The pin forms the load-bearing element of the belt hinge used in swing gates. Installation is carried out by screwing the mounting plate to the post or gate frame using two square holes 8.4 mm. The L-shaped profile ensures stable support and transfers loads generated during opening and closing of the gate leaf. Thanks to solid construction and precisely manufactured mounting holes, installation is quick and repeatable — which is particularly important for serial installations.
