Comunello – adjustable hinge for swing gates M20, mounting plate 100×100 mm
0
Description

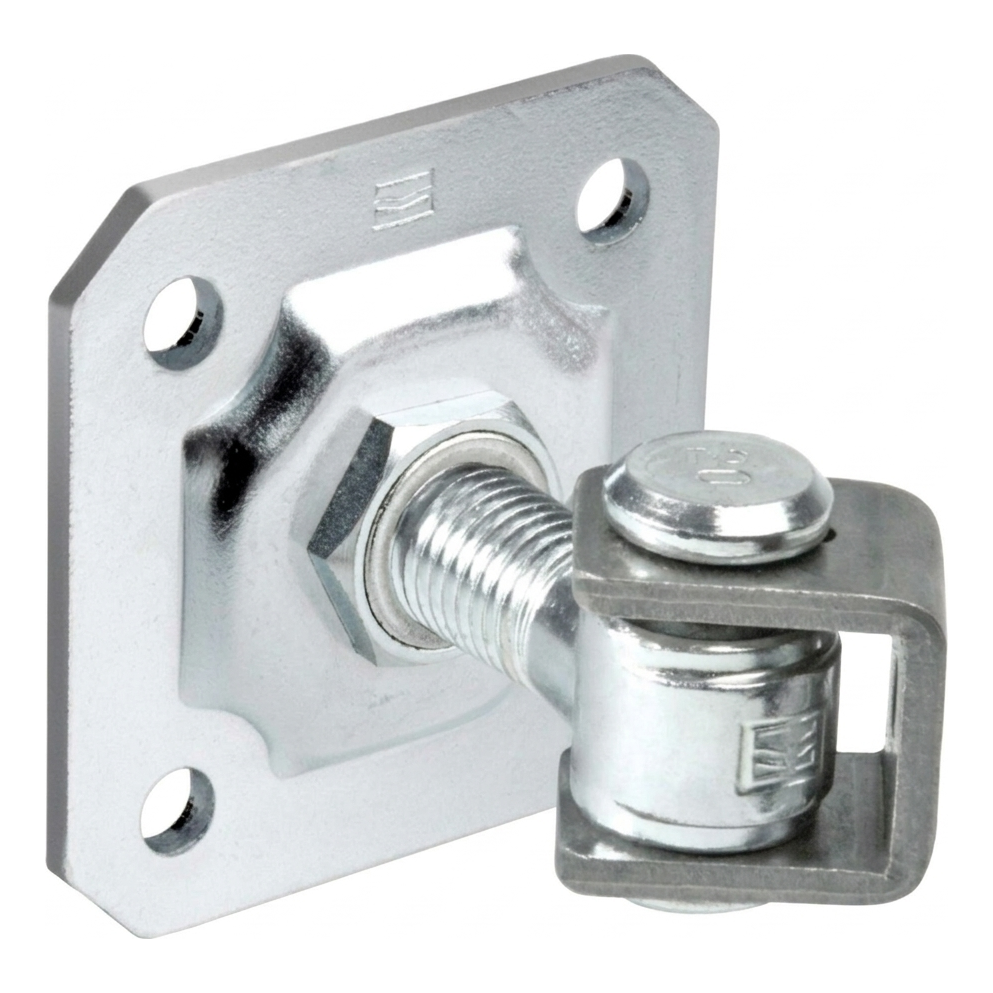

Comunello – adjustable hinge for swing gates M20, mounting plate 100×100 mm
Comunello adjustable hinge with M20 thread is a durable hardware component designed for mounting swing gates and gate panels. Thanks to the adjustment nut on the M20 thread, it enables precise positioning of the gate leaf both during installation and throughout operation — without the need to dismantle the entire hinge. This is a significant convenience for installation teams who need to correct gate alignment after structural sagging or due to temperature variations.
The mounting plate with dimensions 100 × 100 mm and thickness 4 mm with four mounting holes ensures stable and durable attachment to the post. The hinge body is galvanised, which guarantees high corrosion resistance and enables outdoor use. The hinge ear is made of mild steel (non-galvanised), which is a standard solution in this type of gate hardware.
Dimensions and mounting parameters

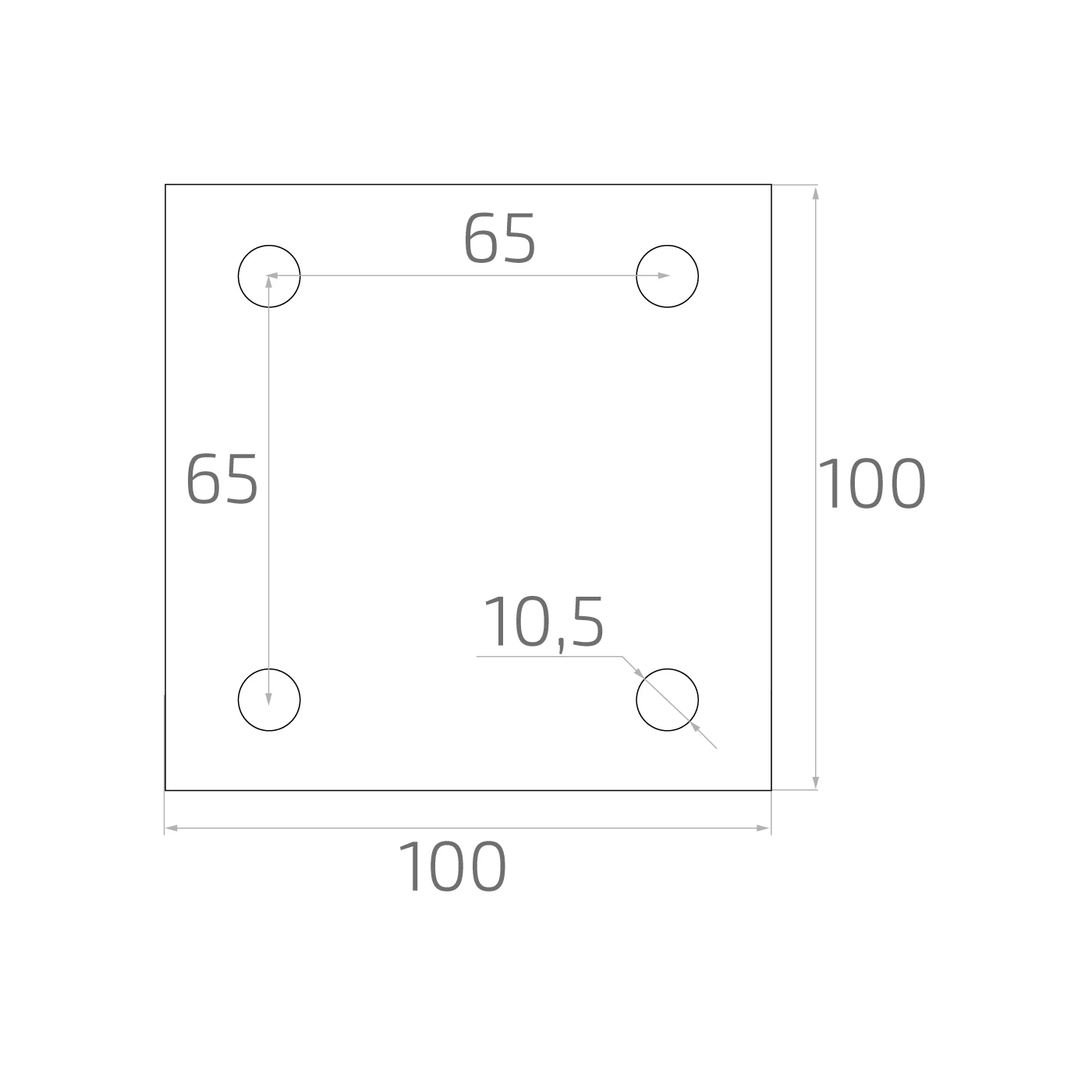

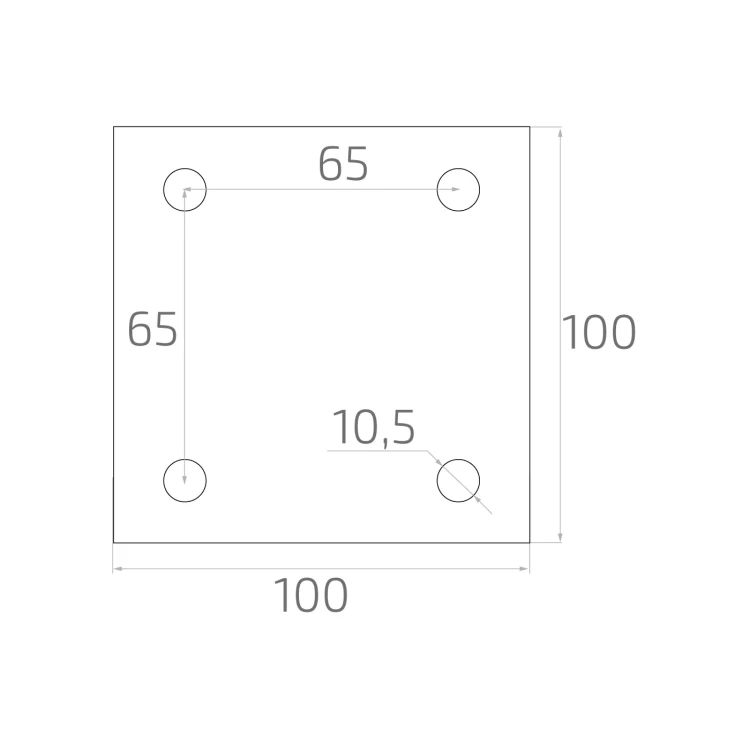

- Mounting plate: 100 × 100 × 4 mm
- Mounting hole spacing: 65 × 65 mm
- Mounting hole diameter: ø 10.5 mm

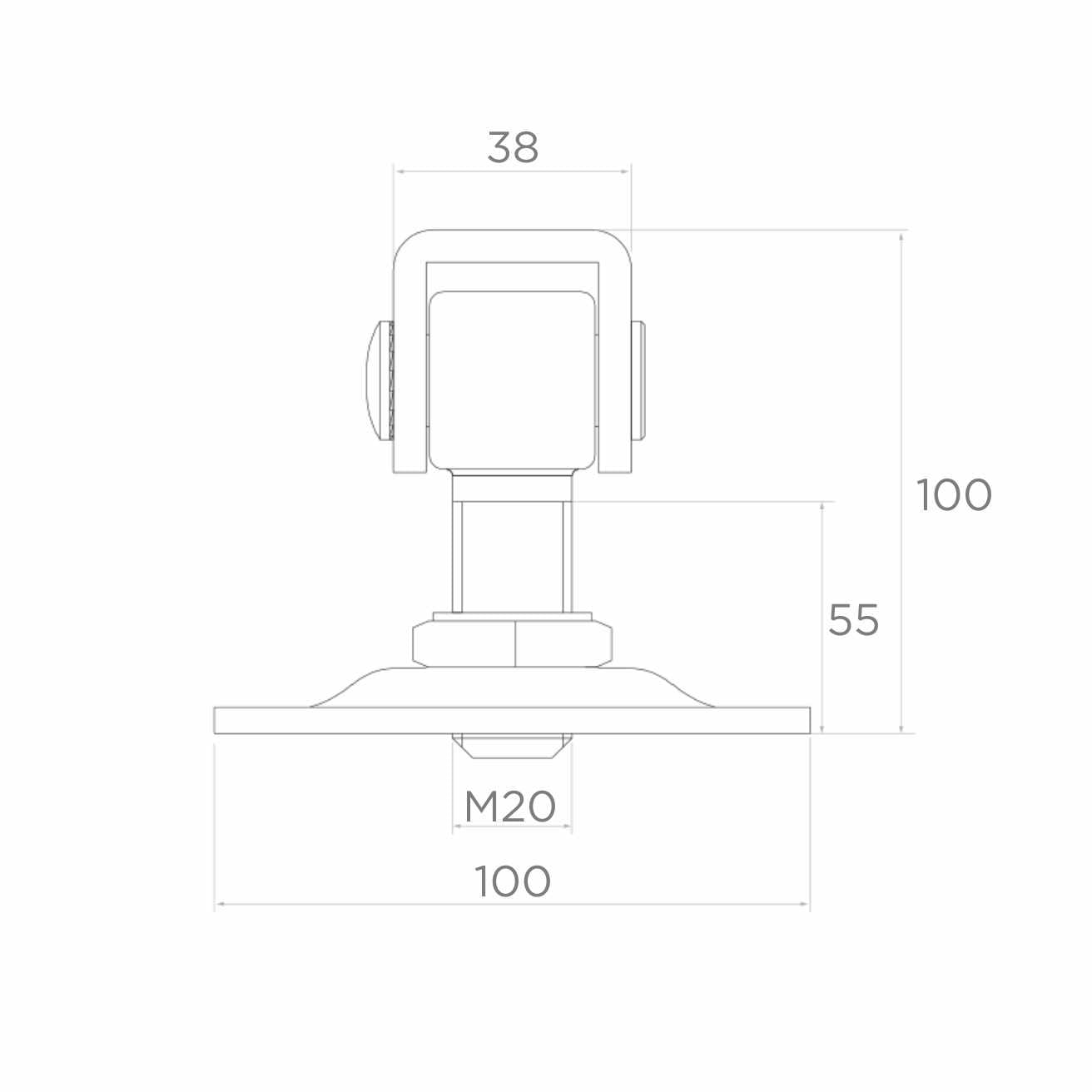

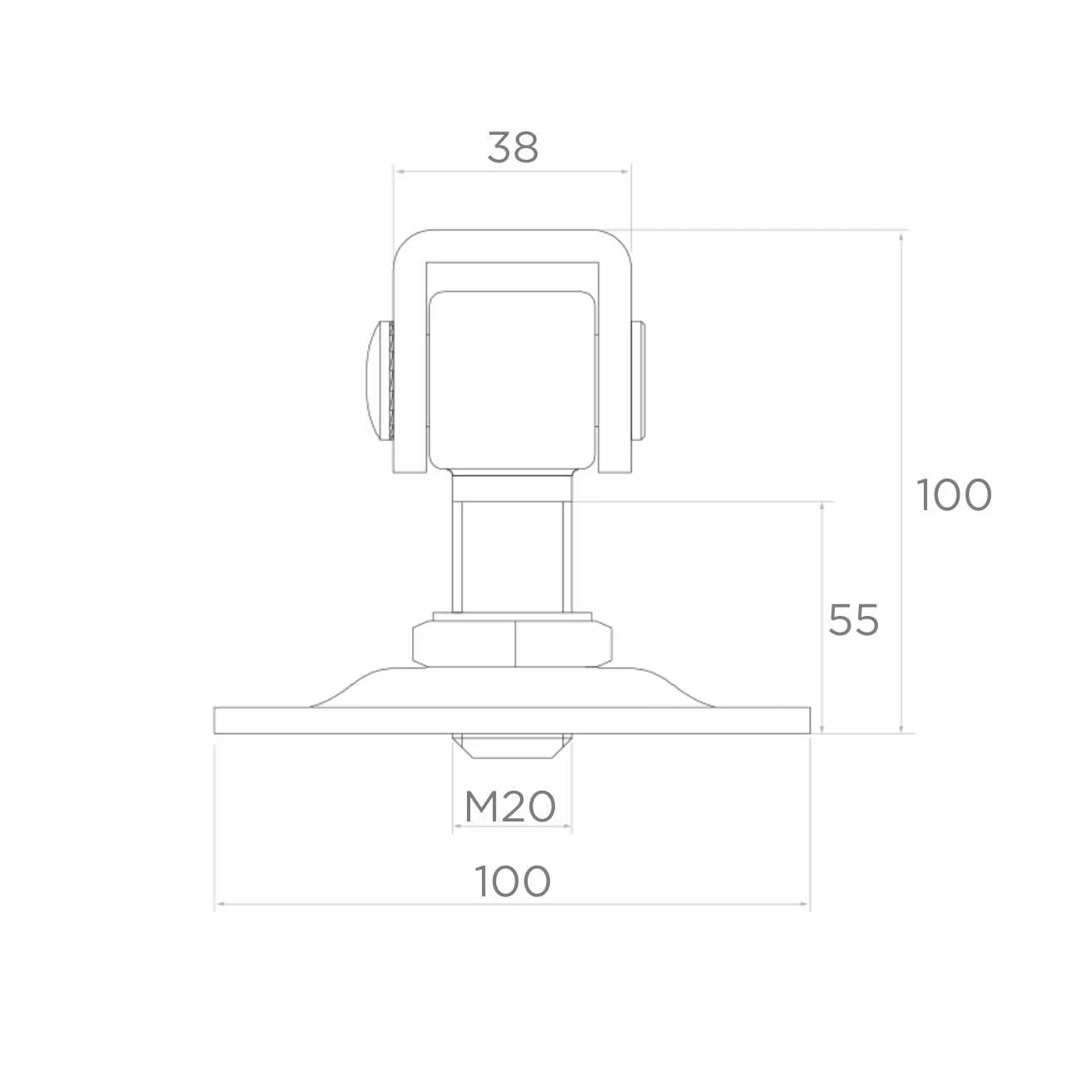

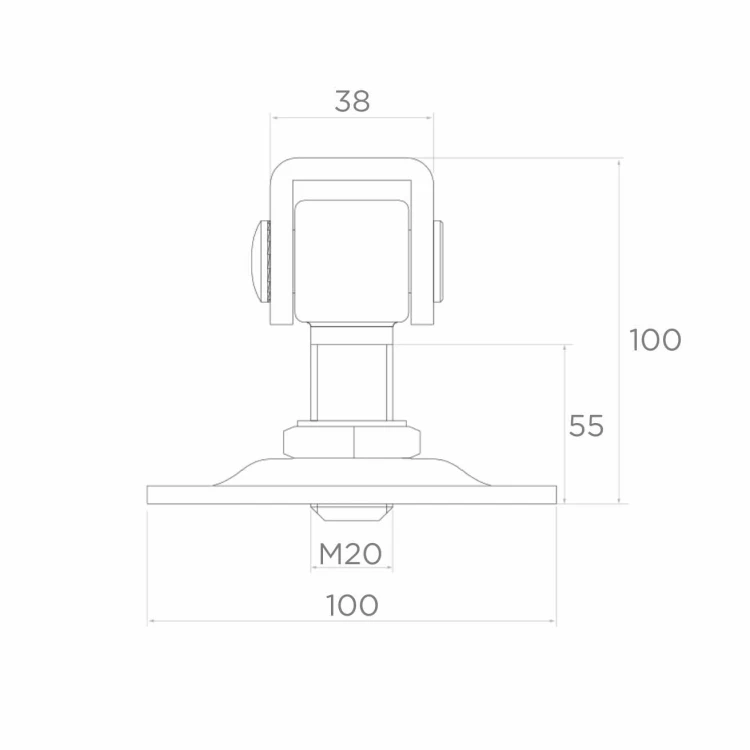

- Adjustment screw thread: M20
- Ear width: 38 mm
- Hinge projection (depth from plate): 100 mm
- Projection to bottom edge of ear: 55 mm
Product data
- Manufacturer: Comunello
- Material: steel
- Corrosion protection: zinc coating (ear uncoated)
- Weight: 0.775 kg
- EAN: 8028390709411
Easy adjustment in any conditions
Using an adjustable hinge allows for quick correction of gate leaf alignment using the nut on the M20 thread. This is particularly useful in situations where the gate structure sags under its own weight or when extreme temperatures cause stress in metal components. Winter temperature drops can lead to deformation — in such cases, it is sufficient to loosen or tighten the hinge to restore proper gate operation. This enables installation teams to quickly respond to customer complaints without time-consuming dismantling.
Technical data
| Thread type | M20 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
