Comunello – adjustable welding hinge M18 for swing gates
Description

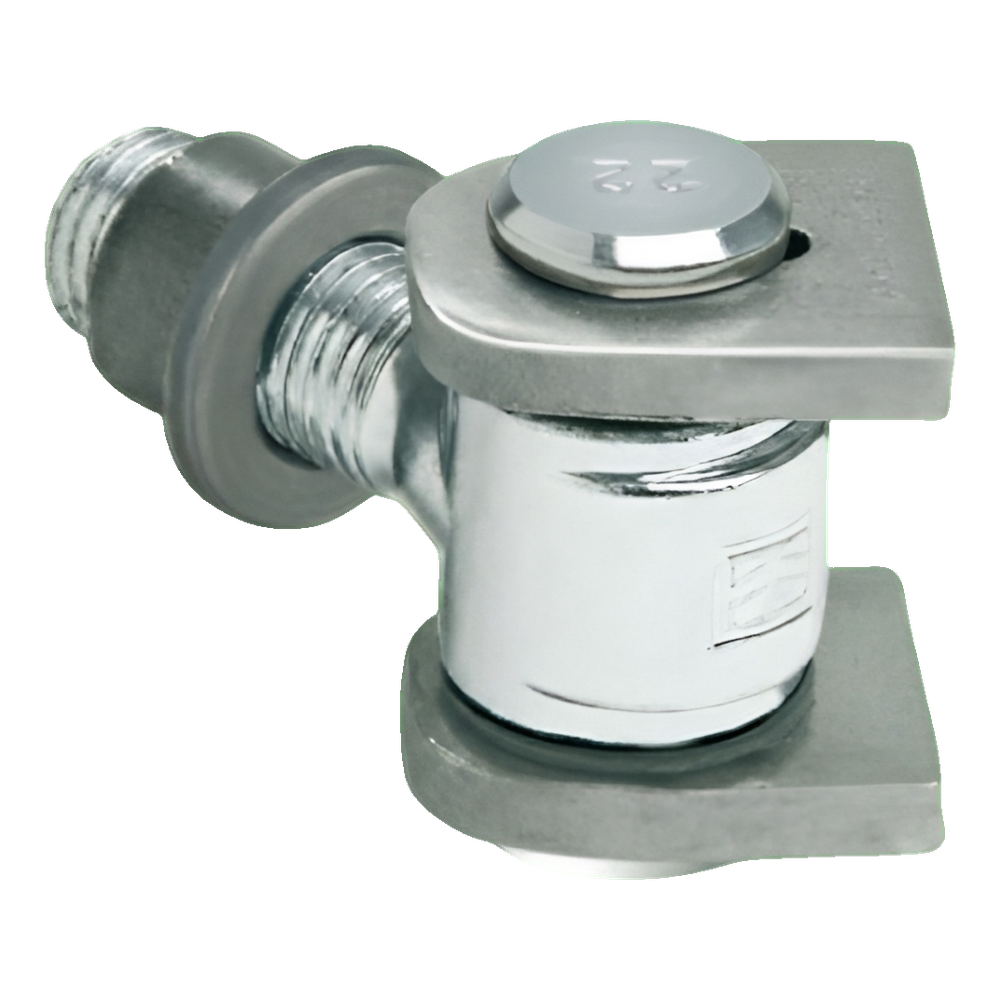

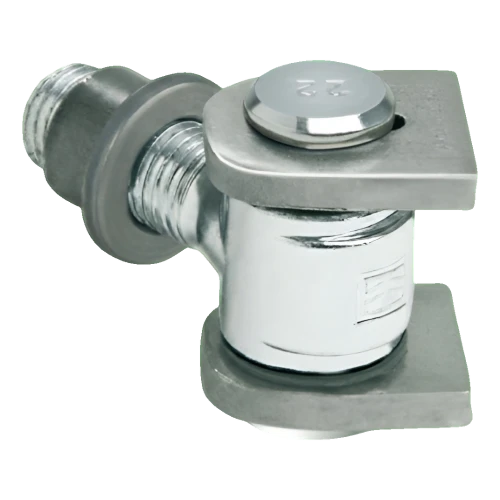

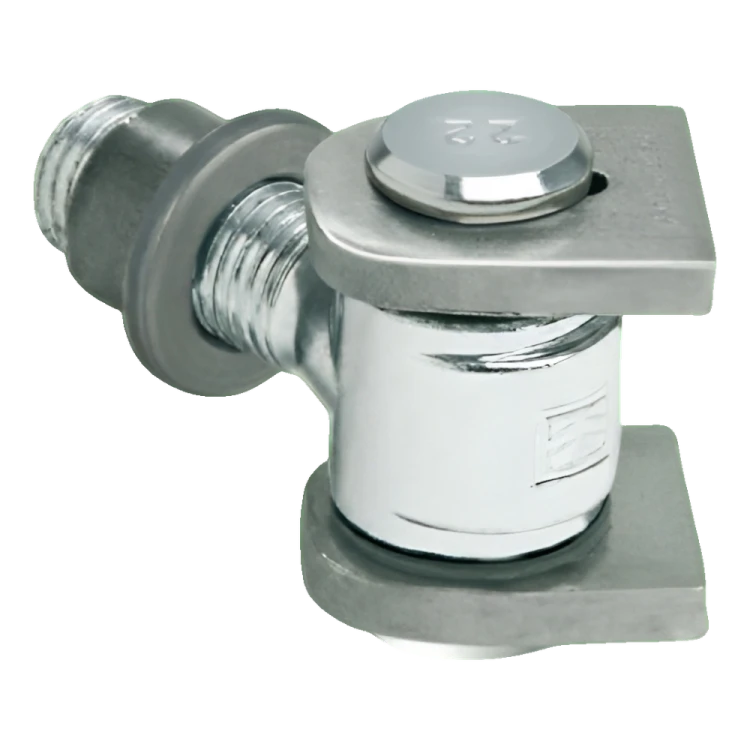

Comunello – adjustable welding hinge M18 for swing gates
Comunello adjustable welding hinge with M18 thread is a durable and precise mounting element designed for swing gates. Thanks to its M18 thread construction and adjustment nut, it enables trouble-free adjustment of gate leaf position after welding completion — without the need for dismantling or re-cutting. This solution significantly reduces installation time and eliminates costly corrections on the construction site.
The hinge is galvanised, which ensures high corrosion resistance even in harsh atmospheric conditions. Solid metal construction guarantees years of trouble-free operation with daily opening and closing of the gate.
Technical parameters
- Manufacturer: Comunello
- Type: adjustable hinge for welding
- Thread: M18
- Length: 85 mm
- Weight: 0.385 kg
- Material: galvanised metal
- Application: swing gates
- EAN: 8028390207191
Application and installation
The hinge is designed for welding directly into the swing gate or gate post construction. After mounting and welding steel elements, the installer can precisely adjust the leaf position using the adjustment nut on the M18 thread — there is no need to cut hinges or use spacer washers. This is particularly important for large, heavy gates, where even millimetre deviations affect the smooth movement of the leaf.
Product by Comunello — an Italian manufacturer recognised in the European market, specialising in gate accessories and fencing systems. Choosing Comunello components guarantees repeatable quality and compliance with the highest production standards.
Technical data
| Mounting Method | Weld-On |
| Thread type | M18 |
| Material | Steel |
