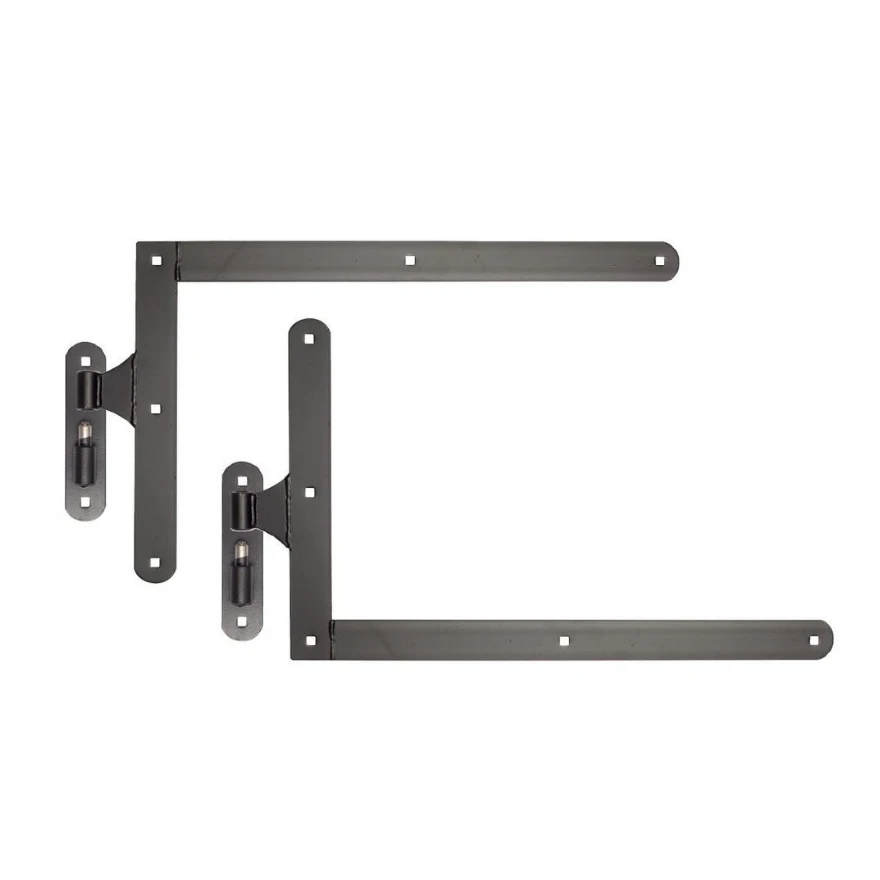

Angular hinge with pin H400 black – complete set for one gate leaf
Leave feedback on the product
Angular hinge with pin H400 black, complete upper and lower set. Steel flat bar 50×5 mm, pin Ø16 mm. Horizontal arm 750 mm, vertical 400 mm. BASF cataphoretic coating. Weight 5.74 kg. For gates and garden gates.
Product code: 001-500
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Angular hinge with pin H400 black – complete set for one gate leaf
Complete set of angular hinges with pin H400 — upper and lower — designed for mounting large doors, garden gates and gates, particularly in agricultural buildings. Robust construction made from steel flat bar 50 × 5 mm with a pin diameter of 16 mm guarantees high load capacity and durability even with large, heavy leaves.
High-quality anti-corrosion coating
The hinges are coated with durable primer paint used in the automotive industry. The paint coating is applied using cataphoresis (BASF technology), and after paint application, the elements are baked at 200°C. Before painting, the products undergo thorough cleaning with HENKEL technology, which ensures maximum adhesion and the highest quality anti-corrosion protection. The result is a smooth, black surface resistant to mechanical damage and corrosion — an aesthetic appearance that lasts for years of operation.
Why choose these hinges?
- Aesthetic appearance — smooth black surface with professional finish
- Corrosion resistance — double cataphoretic painting with baking at 200°C
- Durability — robust construction that doesn't bend under the weight of the leaf
- Mechanical resistance — coating resistant to scratches and impacts
- Complete set ready for installation — upper and lower hinge for one leaf in one package

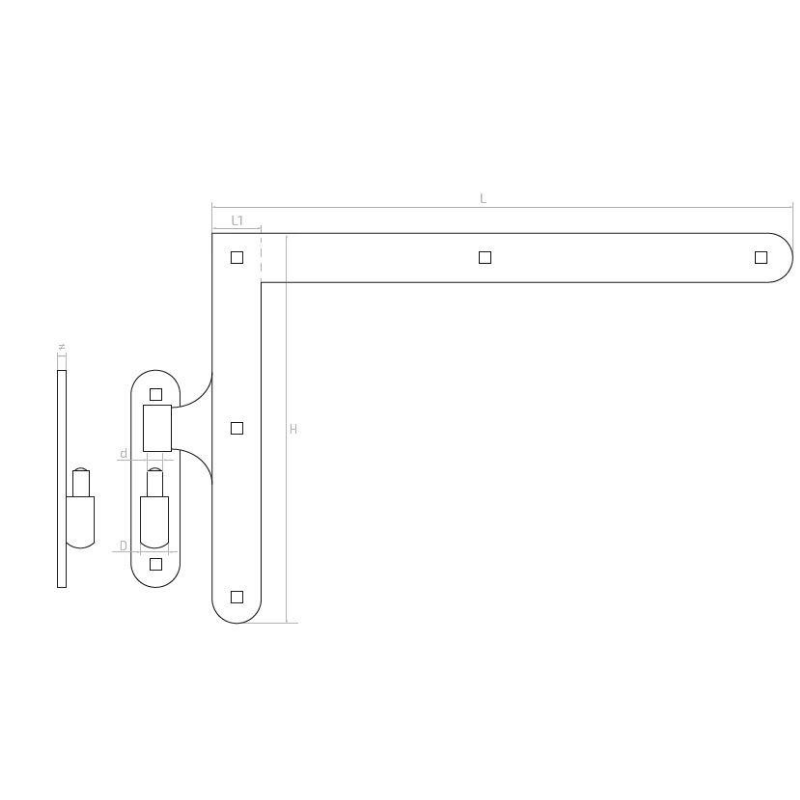

Dimensions and technical parameters
- Horizontal arm (L): 750 mm
- Vertical arm (H): 400 mm
- Flat bar width (L1): 50 mm
- Flat bar thickness (T): 5 mm
- Pin diameter (d): 16 mm
- Material: steel
- Colour: black
- Anti-corrosion protection: cataphoretic coating (BASF)
- Set weight: 5.74 kg
- EAN: 5901431940857
Application
Angular hinges H400 work well wherever solid and durable hinges for large leaves are required — agricultural gates, garden gates, large doors of agricultural buildings and barn and warehouse doors. The set contains upper and lower hinges, allowing quick installation of one leaf without the need to order elements separately.
