COMUNELLO adjustable steel gate hinge M20 L90 mm
Leave feedback on the product
COMUNELLO adjustable gate hinge M20 made of steel, length 90 mm. M20 thread, ear width 40 mm, base diameter 48 mm. Ball joint, height adjustment. For hinged gates on fence posts. Weight 0.54 kg.
Product code: 001-374
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
COMUNELLO adjustable steel gate hinge M20 L90 mm
COMUNELLO M20 adjustable hinge is a durable hardware element designed for mounting hinged gates on fence posts. Thanks to the M20 thread, it ensures smooth adjustment of the gate leaf position at any time — both during installation and after completion. The product manufactured in Italy guarantees high build quality and resistance to mechanical damage.

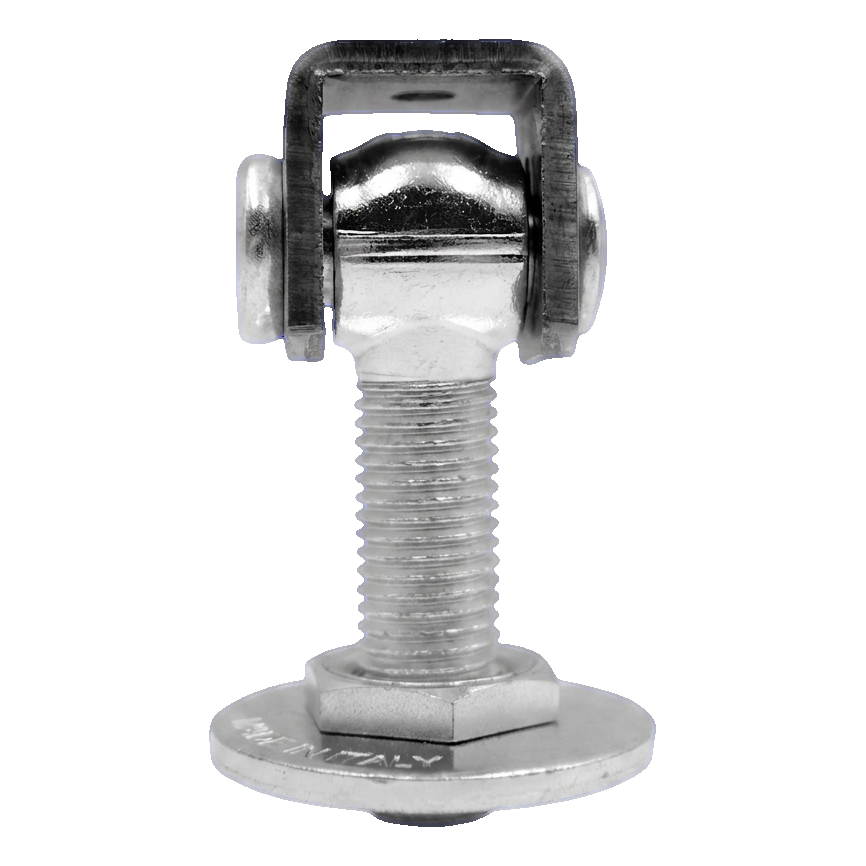

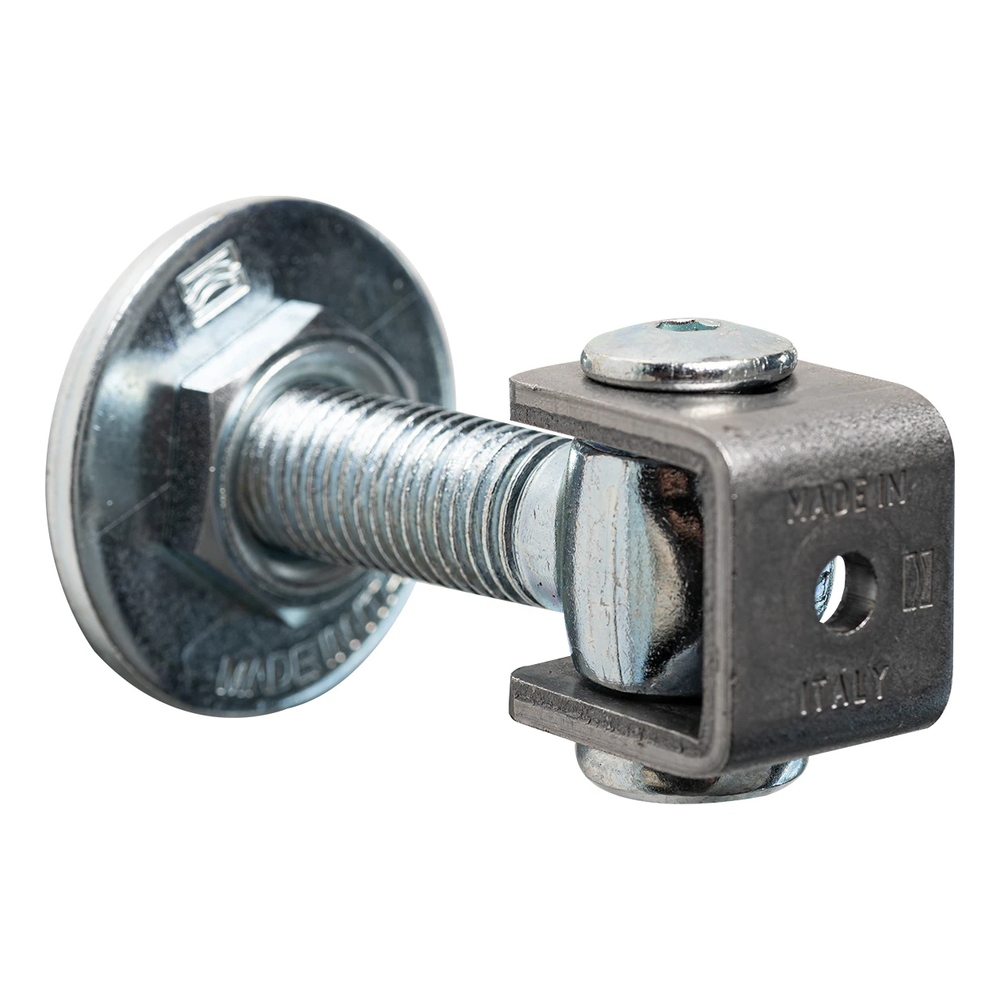

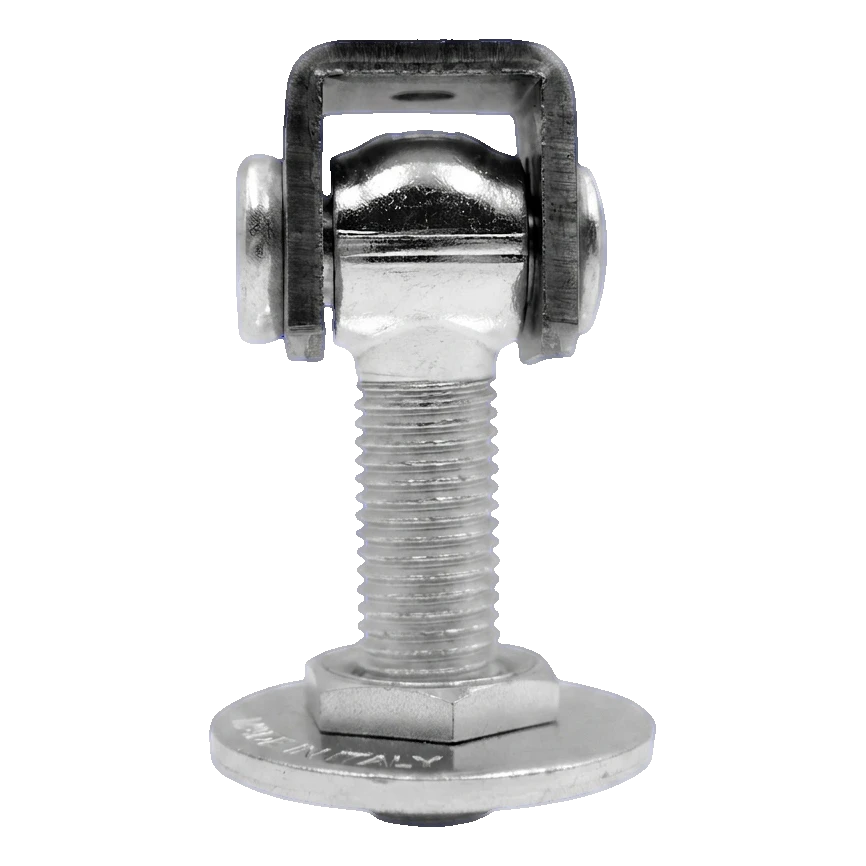

The hinge construction is based on a steel threaded spindle ending with a ball joint in housing, which allows the gate leaf to rotate freely. Height adjustment is performed by tightening or loosening the nut on the thread — the installer can precisely position the gate without the need for dismantling. This is a practical solution that significantly speeds up installation work and eliminates the need for welding additional corrective elements.
Advantages for installer
- Quick and simple installation — M20 thread screwed directly into the post or welded mounting element
- Post-installation adjustment — possibility to correct gate positioning at any time without dismantling
- Ball joint — ensures freedom of leaf rotation and compensates for minor geometric deviations in the structure
- High quality — high-strength steel, COMUNELLO production (Italy)

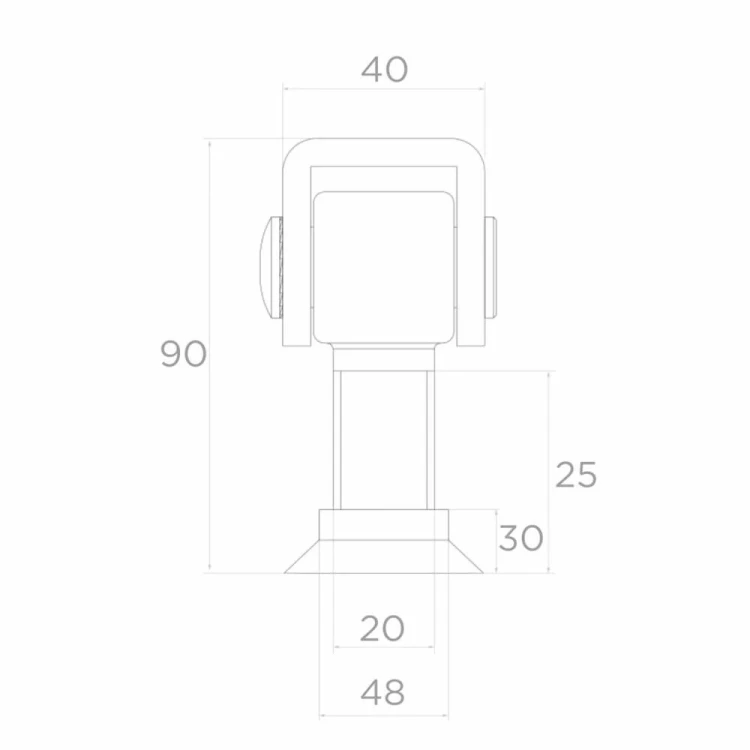

Dimensions and technical data
- Manufacturer: COMUNELLO (Made in Italy)
- Material: steel
- Thread: M20
- Total length/height: 90 mm
- Hinge ear width: 40 mm
- Spindle diameter: 20 mm
- Mounting base height: 30 mm
- Base diameter: 48 mm
- Exposed spindle length: 25 mm
- Weight: 0.54 kg
- EAN: 8028390207337
Application
The COMUNELLO M20 adjustable hinge is dedicated to hanging leaves of hinged gates on steel or masonry fence posts. The mounting base with diameter 48 mm can be welded to a steel post or embedded in an element anchored in a concrete post. Solid steel construction and ball joint guarantee long-term, trouble-free operation even with intensive gate use.
